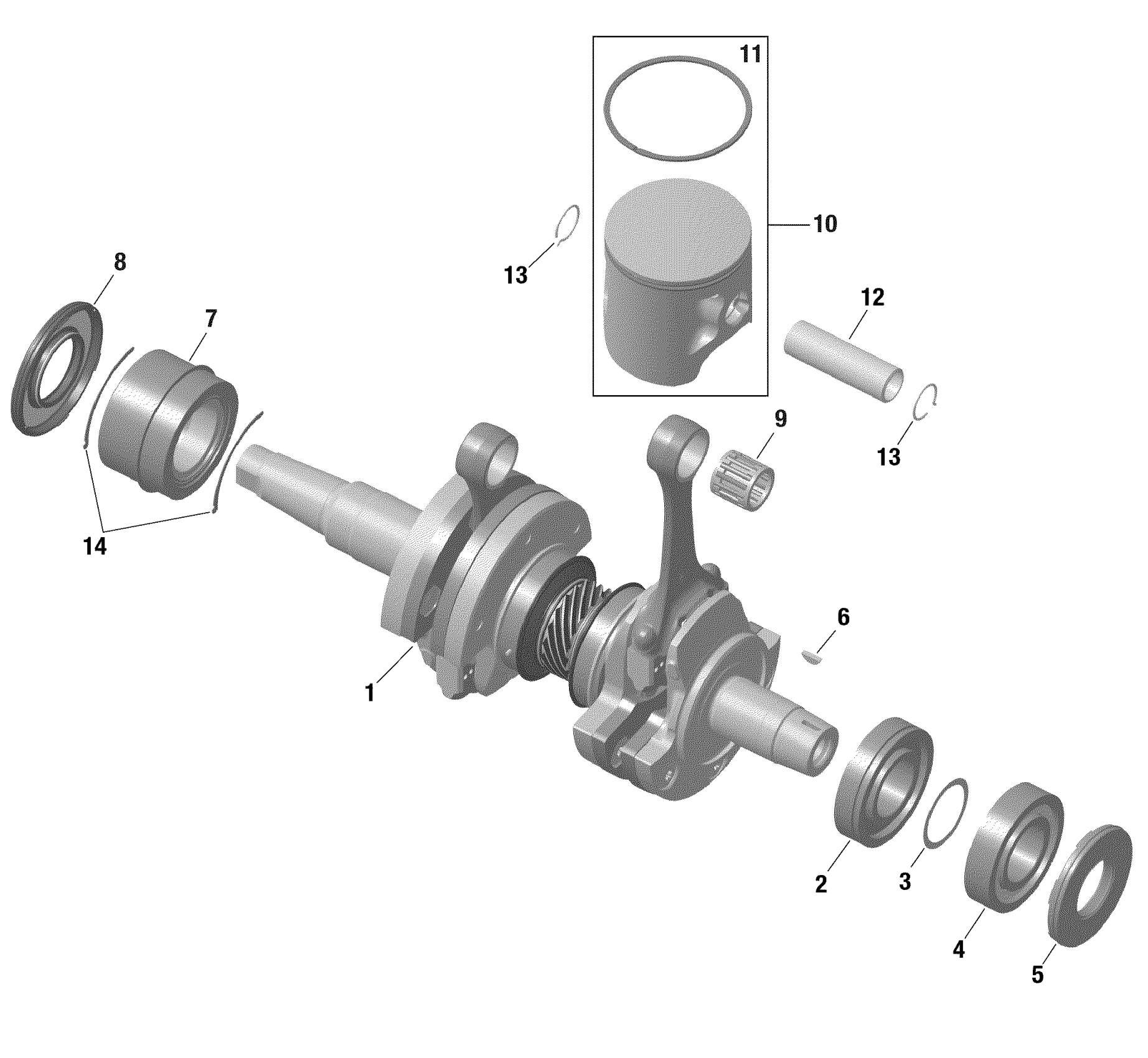

Ski-Doo SUMMIT 850 E-TEC Turbo - 2020 Engine - Crankshaft And Pistons - 849 Diagram

#

Description

Price

1

Crankshaft Ass'y This part replaces 420893787.

420893982

$2,048.48

2

Bearing

420832178

$109.67

3

Shim 35.4/43/0.3

420927401

$3.01

4

Ball Bearing 6207 | With drive pin

420832575

$49.22

5

Oil Seal

420831956

$30.57

6

Woodruff Key

420246015

$3.01

7

Roller Bearing

420832130

$91.76

8

Oil Seal | Included in gasket kit

420931284

$22.36

9

Needle Bearing

420832030

$28.33

10

Piston Ass'y | Includes no. 10-11

420893797

$271.61

11

Semi-Trapez Ring

420815416

$76.84

12

Piston Pin

420916480

$36.54

13

Piston Circlip | Included in gasket kit

420845467

$4.30

14

Shim Kit

420481410

$22.36

14

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable
