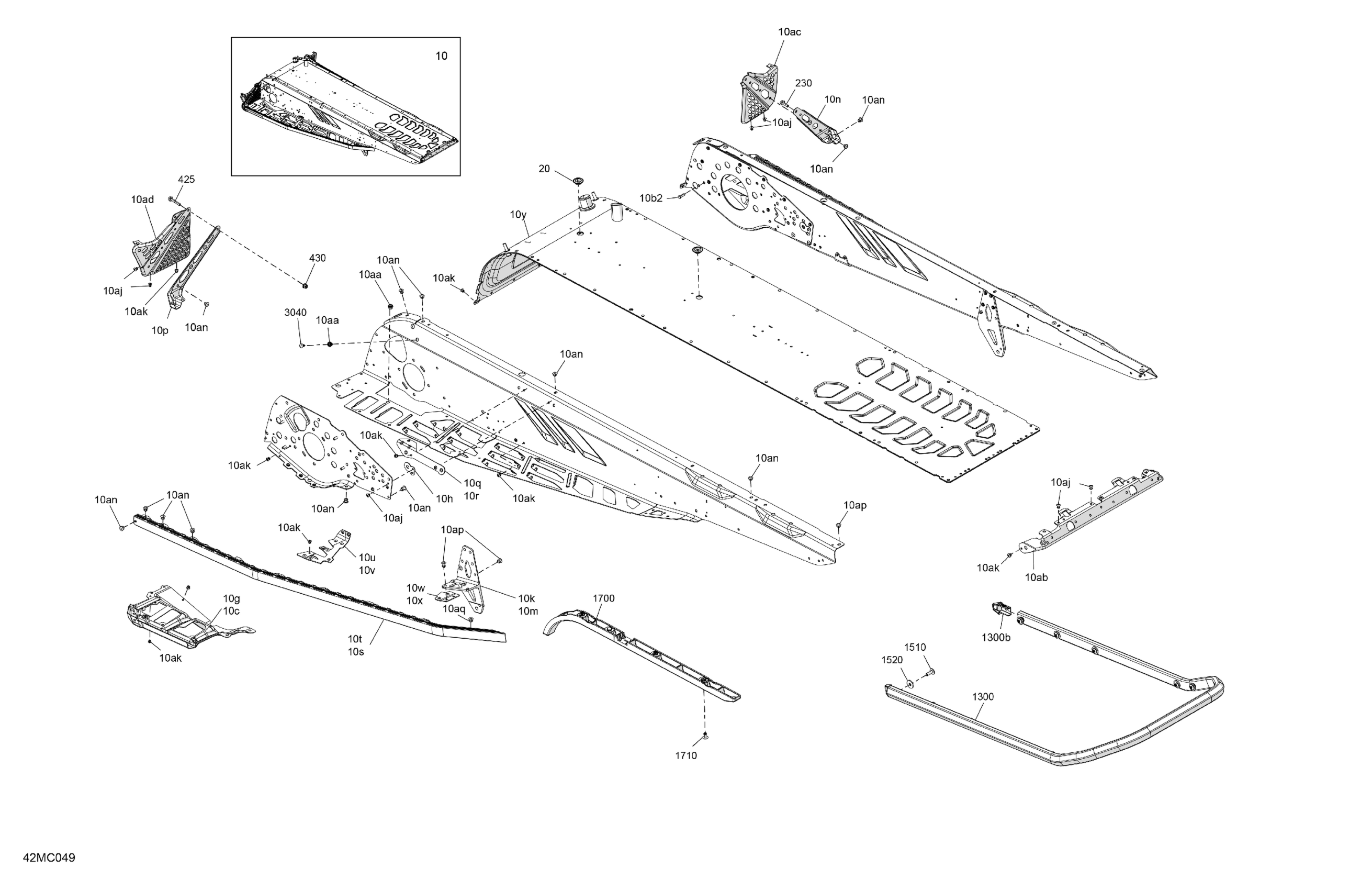

Ski-Doo 006 - SUMMIT 600 EFI - 40 - NEO - Package 146" Europe, 2023 06- Frame - System - Rear Section Diagram

Description

Price

Full Moon, Chassis Tunnel Module 146" | Includes 10 to 10aq

518333815

Unavailable

10b2

Clinch Stud M6 X 20

250300027

$2.09

10c

Deep Black, LH Footrest Reinforcement

518331523

$88.99

10g

Deep Black, RH Footrest Reinforcement

518330738

$88.99

10h

Front Suspension Arm Reinforcement

518335959

$4.19

10k

LH Bracket

518329632

$45.99

10m

RH Rear Suspension Support

518334407

$69.99

10n

Stirrup Reinforcement

518334507

$21.99

10p

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10q

LH Under Chassis Reinforcement

518331744

$18.99

10r

RH Under Chassis Reinforcement

518331745

$19.99

10s

RH Roller

518328451

$194.99

10t

LH Roller

518328452

$194.99

10u

LH Footrest Reinforcement

518332296

$21.99

10v

RH Footrest Reinforcement

518332297

$21.99

10w

LH Reinforcement Plate

518329088

$3.39

10x

RH Reinforcement Plate

518329089

$4.59

10y

Radiator Tunnel 146

518334489

$739.99

10aa

Clinch Nut M6 Hexsert

605636003

$4.23

10ab

Rear Cap

518328990

$22.49

10ac

RH Footrest

518333006

$40.99

10ad

LH Footrest

518333007

$40.99

10aj

Avex Rivet

390909100

$0.30

10ak

Avex Rivet

390909200

$0.30

10an

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10ap

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10aq

Rivet Ornit 6,5 X 16.5

293150267

$2.40

Black, Plug

293730052

$9.19

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1300

Rear Bumper 146 | Includes 1300 to 1300b

518334306

$148.49

1300b

Cap

520001612

$10.99

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

3040

Dart

293730079

$2.09
