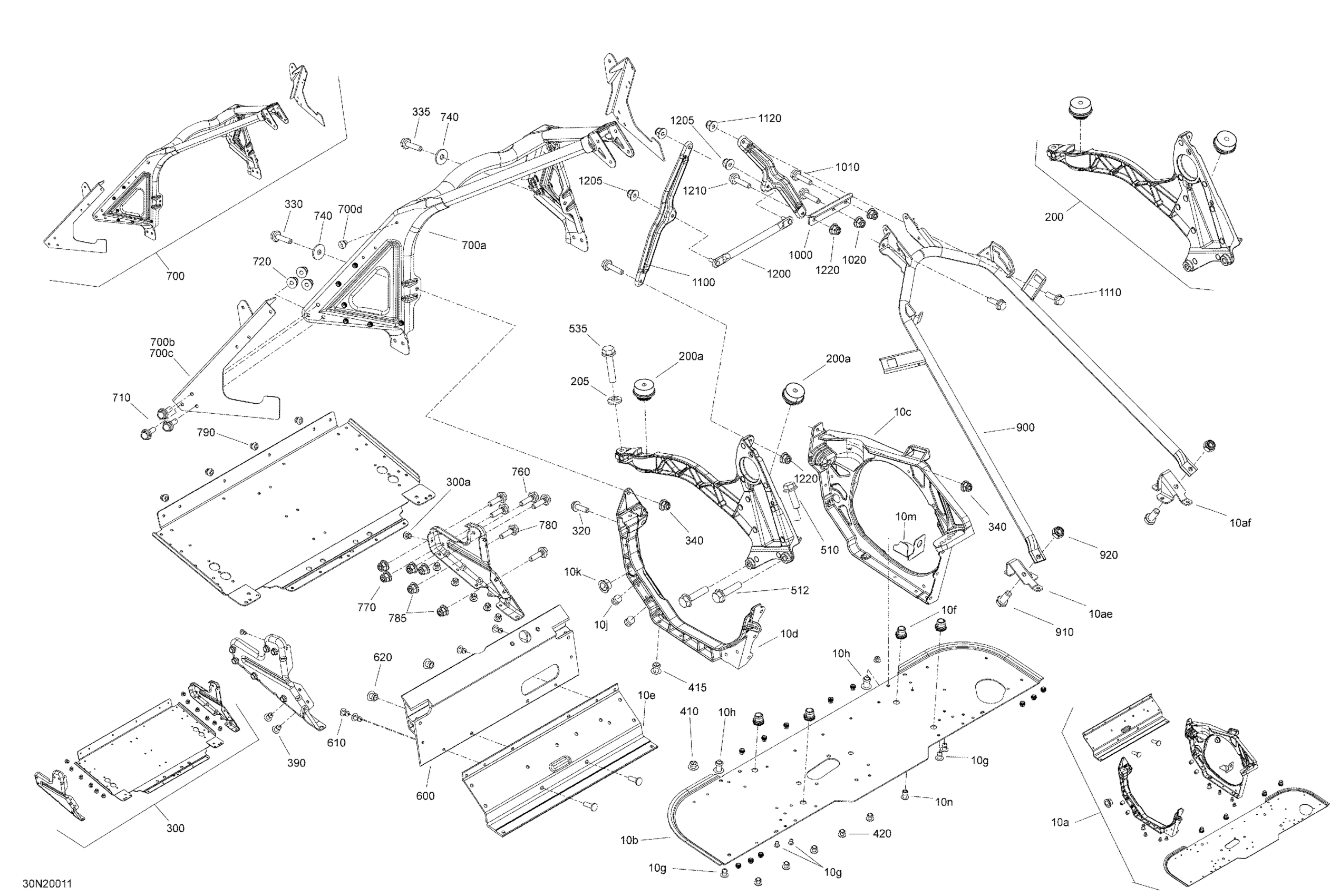

Ski-Doo SKANDIC SWT 900 ACE - 2020 Frame - System - Front Section Diagram

#

Description
Price

10a

Module E | Includes 10a to 10n

518329825

$882.28

10b

Bottom Plate

518329826

Unavailable

10c

RH Side Member

518326328

$259.97

10d

LH Side Member

518326330

$259.97

10e

Front Member

518326198

$59.97

10f

Clinch Nut Hexsert M8

605636002

$7.31

10g

Avex Rivet

390909100

$0.29

10h

Hemlock Rivet 6.5 mm

293150120

$7.23

10j

Hemlock Rivet, 6.5 mm

293150119

$4.00

10k

Leg Bushing

505072690

$5.92

10m

Muffler Support

518327983

$18.43

10n

Rivet Hucklok

293150163

$2.82

10ae

LH Support Tube Bracket

518329109

$44.58

10af

RH Support Tube Bracket

518329110

$44.58

200

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

$259.97

200a

Vibration Damper

512061516

$57.66

205

Conical Spring Washer M8

250200146

$0.83

300

S Module | Includes 300 to 300a

518326213

$776.12

300a

Avex Rivet

390909200

$0.29

320

Hexagonal Head Screw

210262050

$1.74

330

Hex. Flange Screw M6 X 25

207662544

$0.53

335

Hex. Flange Screw M6 X 25

207662544

$0.53

340

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

390

Avex Rivet

390909100

$0.29

410

Hemlock Rivet, 6.5 mm

293150119

$4.00

415

Rivet

293150183

$2.06

420

Avex Rivet

390909200

$0.29

510

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.07

512

Hex. Flange Screw M8 X 35

250000986

$1.74

535

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

$1.07

600

Engine Support

518326140

$116.12

610

Avex Rivet

390909100

$0.29

620

Hemlock Rivet, 6.5 mm

293150119

$4.00

700

Front Member Ass'y | Includes 700 to 700d

518327004

$499.97

700a

Front Member, S Module

518326557

$336.89

700b

LH Bumper Fastener

502007077

$53.05

700c

RH Bumper Fastener

502007078

$53.05

700d

Avex Rivet

390909200

$0.29

710

Hex. Flange Screw M6 X 20

207662044

$1.66

720

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

740

Flat Washer

224061201

$1.11

760

Hex. Flange Screw M6 X 20

207662044

$1.66

770

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

780

Hex. Flange Screw M6 X 20

207662044

$1.66

785

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

790

Avex Rivet

390909200

$0.29

900

Upper Support Tube

518329105

$189.97

910

Hex. Screw M8 X 20

207182044

$0.61

920

Hex. Elastic Stop Nut M8

232581414

$0.47

1000

Extension Plate

518330343

$7.42

1010

Hex. Flange Screw M6 X 25

207662544

$0.53

1020

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

1100

Upper Column Support

518326848

$13.06

1110

Hex. Flange Screw M6 x 20

207662056

$0.98

1120

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1200

Center Column Support

518326355

$20.74

1205

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

1210

Hex. Flange Screw M6 X 25

207662556

$3.61

1220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
