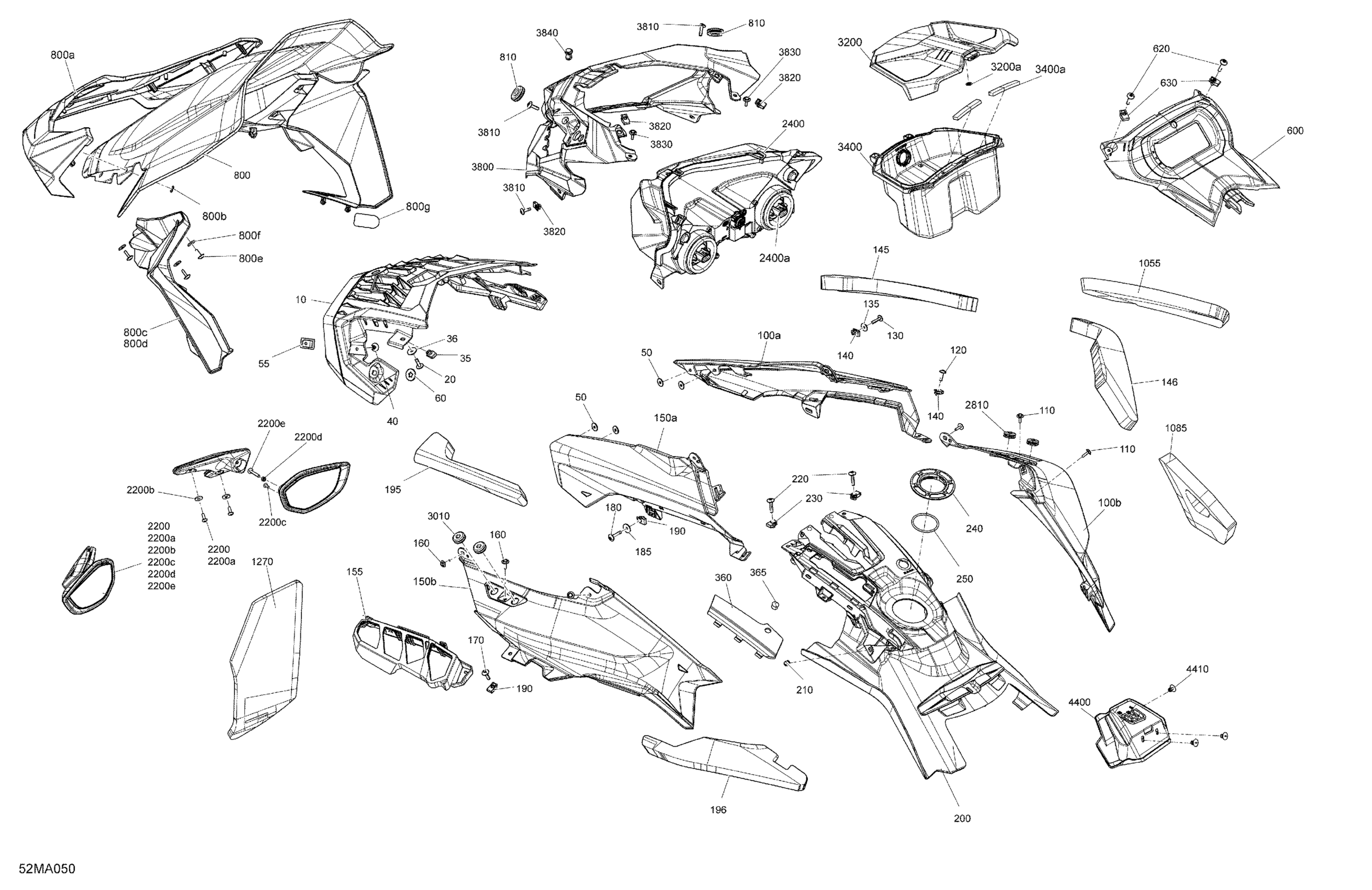

Ski-Doo SKANDIC SWT 600R E-TEC - 2021 Body - Hood Diagram

#

Description
Price

10

Deep Black, Center Hood

517306523

$199.99

20

Torx Screw M5 X 20

250000528

$2.19

35

Panel Nut M5 X 0.8

250000958

$4.29

36

Washer

250200166

$2.19

40

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

50

Washer

517124300

$1.49

55

Rivet Plate

517305109

$5.09

60

Push Nut

508000853

$2.09

100a

RH Front Hood | Model Can-Am Red

517306777

$214.99

100b

RH Rear Hood | Model Can-Am Red

517306778

$214.99

110

Screw M4 X 16

250000725

$3.59

120

Torx Screw M5 X 20

250000528

$2.19

130

Torx Screw M5 X 26

250000587

$4.49

135

Washer

250200166

$2.19

140

Panel Nut M5 X 0.8

250000958

$4.29

145

RH Front Hood Foam

517305763

$13.99

146

RH Hood Foam

517306001

$13.99

150a

LH Front Hood | Model Can-Am Red

517306780

$214.99

150b

LH Rear Hood | Model Can-Am Red

517306781

$214.99

155

LH Hood Trim

517306470

$26.49

160

Screw M4 X 16

250000725

$3.59

170

Torx Screw M5 X 20

250000528

$2.19

180

Torx Screw M5 X 26

250000587

$4.49

185

Washer

250200166

$2.19

190

Panel Nut M5 X 0.8

250000958

$4.29

195

LH Front Hood Foam

517305764

$15.49

196

LH Hood Foam

517306002

$13.99

200

Deep Black, Rear Console

517307687

$214.99

210

Flange Elastic Nut M5

233251434

$2.09

220

Torx Screw M5 X 26

250000587

$4.49

230

Panel Nut M5 X 0.8

250000958

$4.29

240

Console Nut

517306602

$13.99

250

O-Ring

706002839

$1.49

360

LH Front Console

517306580

$32.99

365

Cap

572051500

$5.89

600

Gauge Support

517307675

$35.99

620

Torx Screw M5 X 26

250000587

$4.49

630

Panel Nut M5 X 0.8

250000958

$4.29

800

Windshield Ass'y 585MM | Includes 800 to 800j

517307327

$223.49

800a

Deep Black, Windshield Support

517306183

$42.99

800b

Push Nut

732610072

$2.29

800c

RH Air Deflector

517306184

$33.99

800d

LH Air Deflector

517306185

$33.99

800e

Screw M4 X 16

250000889

$3.19

800f

Rubber Washer 5 mm

250200024

$2.29

800g

Decal

516009227

Unavailable

810

Grommet

517303756

$4.09

1055

Foam

517306846

$4.79

1085

RH Rear Panel Foam

517307293

$8.49

1270

LH Rear Panel Foam

517306499

$14.99

2200

Rear-View Mirror Kit | Includes 2200 to 2200u

517309198

$119.99

2200a

Torx Screw M5 X 14

250000742

$1.49

2200b

Rubber Washer 5 mm

250200024

$2.29

2200c

Torx Truss Screw K40 X 12

250000577

$2.19

2200d

Elastic Stop Nut M5

232551414

$1.49

2200e

Torx Screw Nylon

250000732

$2.19

2400

Headlamp | Includes 2400 to 2400a

517305752

$459.99

2400a

Bulb

415130081

$42.99

2810

Grommet

517307161

$2.89

3010

Grommet

517307161

$2.89

3200

Cover Ass'y | Includes 3200 to 3200c

517307562

$21.99

3200a

Push Nut

732610072

$2.29

3400

Trunk Ass'y | Includes 3400 to 3400b

517306058

$21.99

3400a

Seal Joint

517305157

$2.49

3800

Headlamp Fairing

517306301

$73.99

3810

Torx Screw M5 X 20

250000528

$2.19

3820

Panel Nut M5 X 0.8

250000958

$4.29

3830

Screw M4 X 16

250000725

$3.59

3840

Tuflok Plastic Rivet

293150230

$1.49

4400

Shift Lever Grille

517306303

$14.99

4410

Pop Rivet 3/16" | DS 650 X

293150104

$1.49
