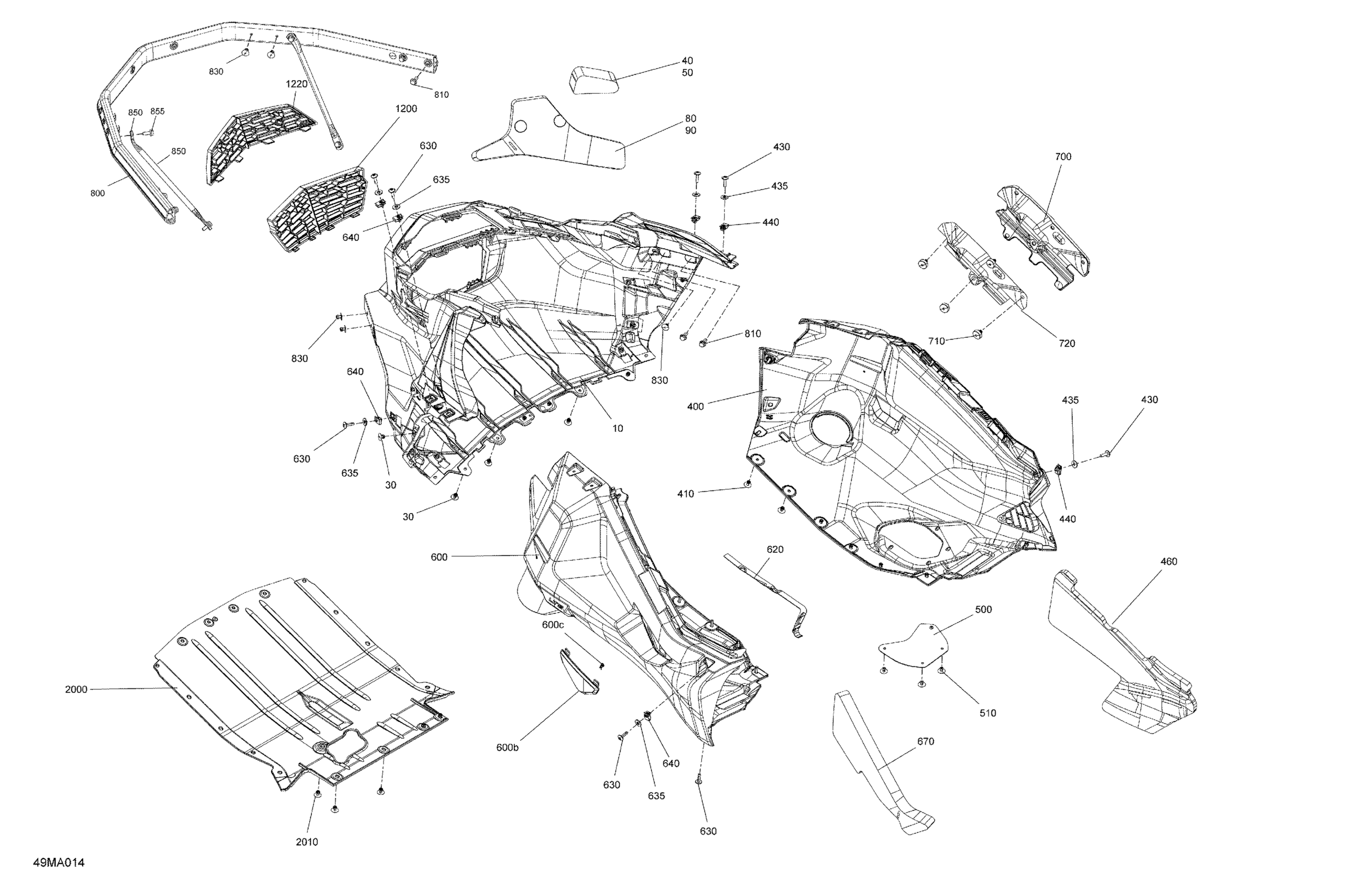

Ski-Doo SKANDIC SWT 600R E-TEC - 2021 Body - Bottom Pan Diagram

#

Description
Price

10

Deep Black, Front Bottom Pan

502007725

$109.99

30

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

40

RH Upper Front Bottom Pan Foam

502007937

$2.39

50

LH Upper Front Bottom Pan Foam

502007938

$2.39

80

RH Front Lower Bottom Pan Foam

502007941

$4.79

90

LH Front Lower Bottom Pan Foam

502007942

$4.79

400

RH Bottom Pan

502007834

$92.99

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

430

Torx Truss M5 X 20

250000586

$4.49

435

Washer

517307442

$1.49

440

Panel Nut M5 X 0.8

250000958

$4.29

460

Foam

502008161

$14.99

500

Plate

502007868

$2.19

510

Pop Rivet 3/16"

293150103

$1.49

600

LH Bottom Pan | Includes 600 to 600c

502008067

$93.99

600b

Bottom Pan Door

502007676

$39.99

600c

Hairpin Cotter

269800431

$1.49

620

Neoprene Seal (1PAC=3M)

219704364

$28.99

630

Torx Truss M5 X 20

250000586

$4.49

635

Washer

517307442

$1.49

640

Panel Nut M5 X 0.8

250000958

$4.29

670

LH Rear Bottom Pan Foam

502007946

$14.99

700

Heat Shield

502008087

$7.29

710

Stopper

502008149

$1.99

720

Reflective Sheet

502008156

$4.89

800

Front Bumper HD Kit

860202198

$98.99

810

Hex. Flange Screw M6 X 16

207661644

$1.49

830

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

850

Bumper Reinforcement

502007913

$6.59

855

Hex. Flange Screw M6 X 16

207661644

$1.49

1200

Lower Prefilter Grille

502007979

$26.99

1220

Upper Prefilter Grille

502007980

$22.99

2000

Under Skid Plate

502007906

$114.99

2010

Pop Rivet 3/16" | DS 650 X

293150104

$1.49
