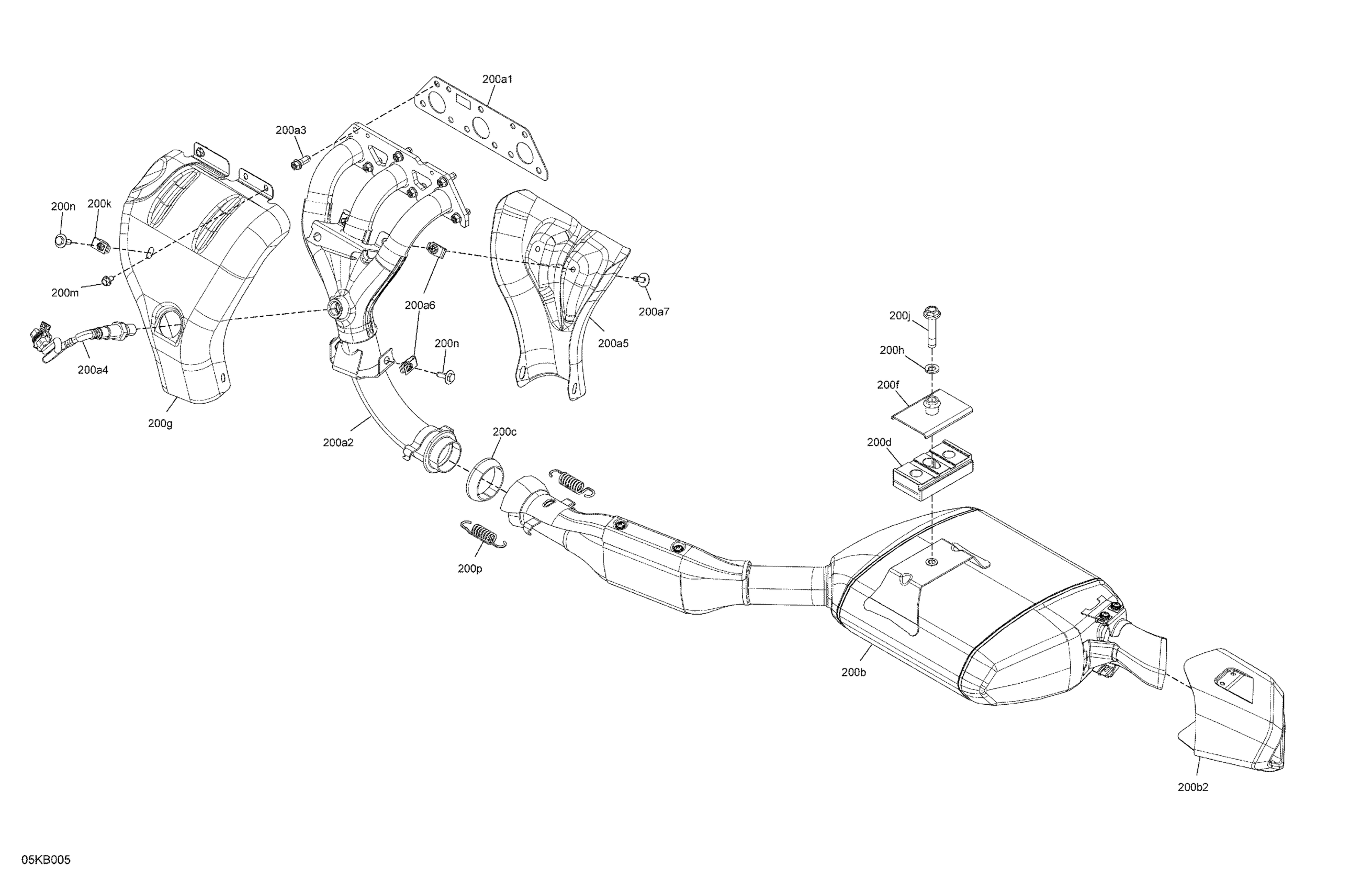

Can-Am RYKER Rally Edition 900 ACE - International, 2022 Engine - Exhaust Diagram

Description

Price

200a1

Exhaust Manifold Gasket

707602002

$18.11

200a2

Exhaust Manifold

707602001

$154.99

200a3

Hex. Flange Screw M8 X 20

250001089

$0.76

200a4

Oxygen Sensor

707600872

$144.99

200a5

Deflector

707602267

$51.99

200a6

Panel Nut M6 X 1.0

250100198

$2.11

200a7

Hex Screw M6 X 20

250000965

$2.11

200b

Exhaust Muffle Ass'y | Included 200b to 200b2

707603293

$1,988.49

200b2

Exhaust Muffler Pipe

707603273

$656.99

200c

Exhaust Gasket

707601033

$13.77

200d

Vibration Damper

707603448

$15.28

200f

Plate Fastener

707602413

$17.59

200g

Deflector

707602312

$38.99

200h

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

200j

Hex. Flange Screw M10 X 50

250001079

$2.19

200k

Panel Nut M6 X 1.0

250100198

$2.11

200m

Hex. Forming Screw M6 X 10

210261050

$1.69

200n

Hex Screw M6 X 20

250000965

$2.11

200p

Spring

514055198

$6.35
