Description

Price

10

Deep Black, Chassis Tunnel Module 137" | Includes 10 to 10aq

518334197

Unavailable

10b2

Clinch Stud M6 X 20

250300027

$2.09

10c

Deep Black, LH Footrest Reinforcement

518331523

$88.99

10g

Deep Black, RH Footrest Reinforcement

518330738

$88.99

10h

RH Footrest

518332921

$42.99

10j

LH Footrest

518332306

$42.99

10q

RH Suspension Bracket This part replaces 518329622.

518329622

Unavailable

10r

LH Rear Suspension Arm Anchorange

518332310

$45.99

10s

Stirrup Reinforcement

518334507

$21.99

10t

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10u

LH Under Chassis Reinforcement

518331744

$18.99

10v

RH Under Chassis Reinforcement

518331745

$19.99

10w

RH Roller

518329023

$194.99

10x

LH Roller

518329024

$194.99

10y

Radiator Tunnel 137 Ass'y

518334488

$720.49

10aa

Clinch Nut M6 Hexsert

605636003

$4.23

10ab

Rear Cap

518328990

$22.49

10ac

RH Footrest

518330691

$24.99

10ad

LH Foot Protector

518331559

$23.99

10aj

Avex Rivet

390909100

$0.30

10ak

Rivet Hucklok

293150163

$2.99

10am

Avex Rivet

390909200

$0.30

10ap

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10aq

Ornit Rivet 6,5 X 14.5

293150266

$2.40

20

Black, Plug

293730052

$9.19

50

Heat Shield

518331823

$10.49

55

Insert

293450275

$12.99

60

Torx Head Screw M6 X 16

250000717

$2.11

75

Rivet Ornit 6,5 X 12.5

293150265

$2.40

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 x 35

207663546

$1.00

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1300

Rear Bumper | Includes 1300 to 1300c

518330033

$111.49

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

1750

Rear Protector

518329980

$10.13

1750a

Rubber Bumper

293830005

$8.09

1760

Front Protective Structure

518334162

$3.69

1770

Torx Truss PT K40 x 12

250001131

$2.11

1800

Rear Protector

518329979

$9.23

1820

Central Protective Structure

518333936

$3.69

1830

Torx Truss PT K40 x 12

250001131

$2.11

1840

Pop Rivet 3/16”

293150108

$1.19

3000

Black Toe-hold

518330358

$24.99

3010

Toe Hold

518329134

$18.99

3020

Hex. Flange Screw M6 X 25

250000793

$2.11

3030

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

3050

Hex Screw Forming M6 x 25

250001124

$2.40

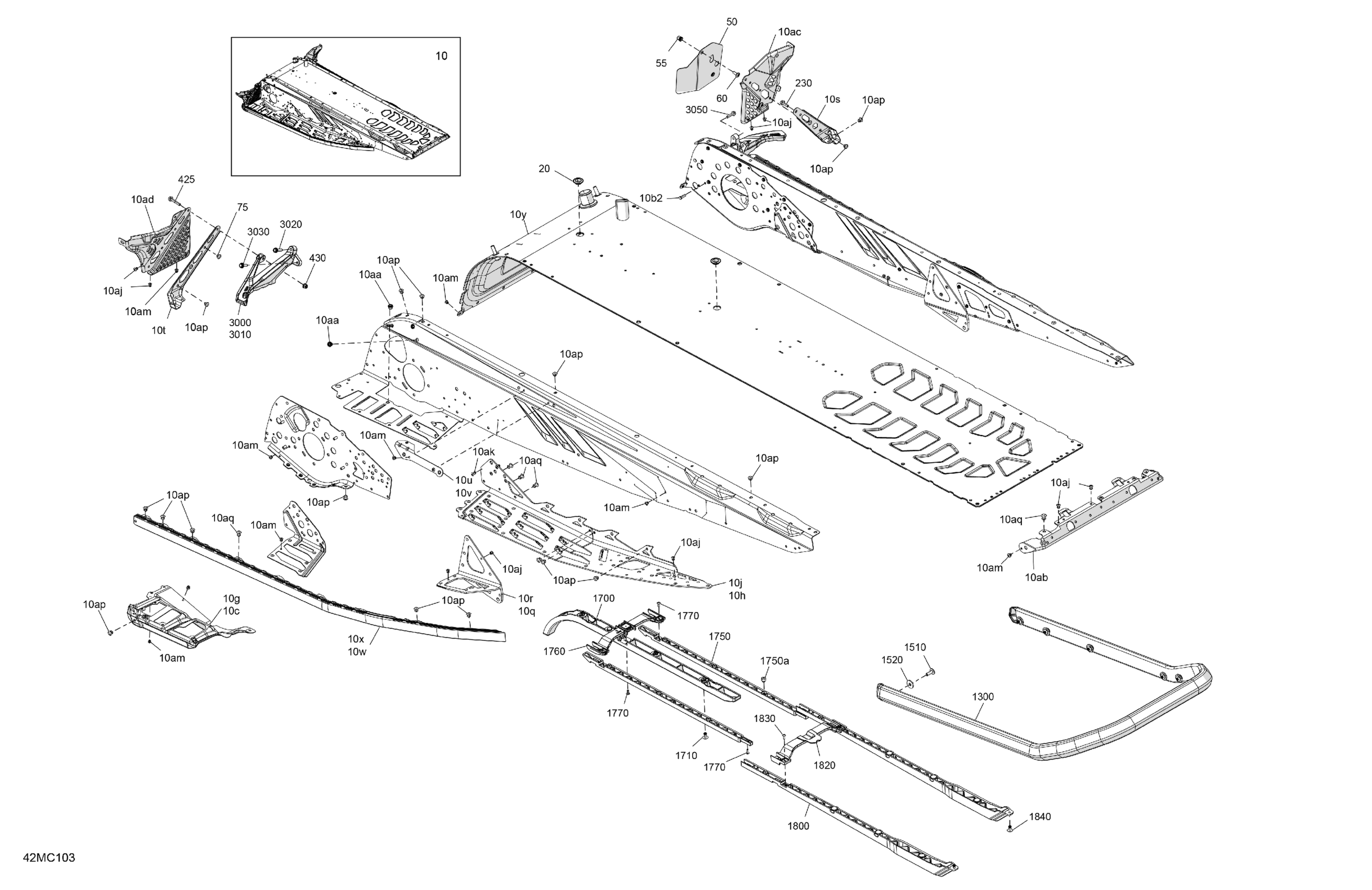

Ski-Doo 006 - RENEGADE 900 ACE TURBO R - XRS - Europe, 2023 06- Frame - System - Rear Section Diagram

Deep Black, Chassis Tunnel Module 137" | Includes 10 to 10aq

Clinch Stud M6 X 20

Deep Black, LH Footrest Reinforcement

Deep Black, RH Footrest Reinforcement

RH Footrest

LH Footrest

RH Suspension Bracket This part replaces 518329622.

LH Rear Suspension Arm Anchorange

Stirrup Reinforcement

Deep Black, LH Chassis Reinforcement

LH Under Chassis Reinforcement

RH Under Chassis Reinforcement

RH Roller

LH Roller

Radiator Tunnel 137 Ass'y

Clinch Nut M6 Hexsert

Rear Cap

RH Footrest

LH Foot Protector

Avex Rivet

Rivet Hucklok

Avex Rivet

Rivet Ornit 6,5 X 12.5

Ornit Rivet 6,5 X 14.5

Black, Plug

Heat Shield

Insert

Torx Head Screw M6 X 16

Rivet Ornit 6,5 X 12.5

Hex. Flange Screw M6 X 20

Hex. Flange Screw M6 x 35

Elastic Flange Nut M6 X 1.0

Rear Bumper | Includes 1300 to 1300c

Torx Screw M6 X 1.0 X 18, Scotch Grip

Flat Washer

Front Protector

Pop Rivet 3/16”

Rear Protector

Rubber Bumper

Front Protective Structure

Torx Truss PT K40 x 12

Rear Protector

Central Protective Structure

Torx Truss PT K40 x 12

Pop Rivet 3/16”

Black Toe-hold

Toe Hold

Hex. Flange Screw M6 X 25

Hex. Flange Screw S.Grip M6 X 20

Hex Screw Forming M6 x 25
