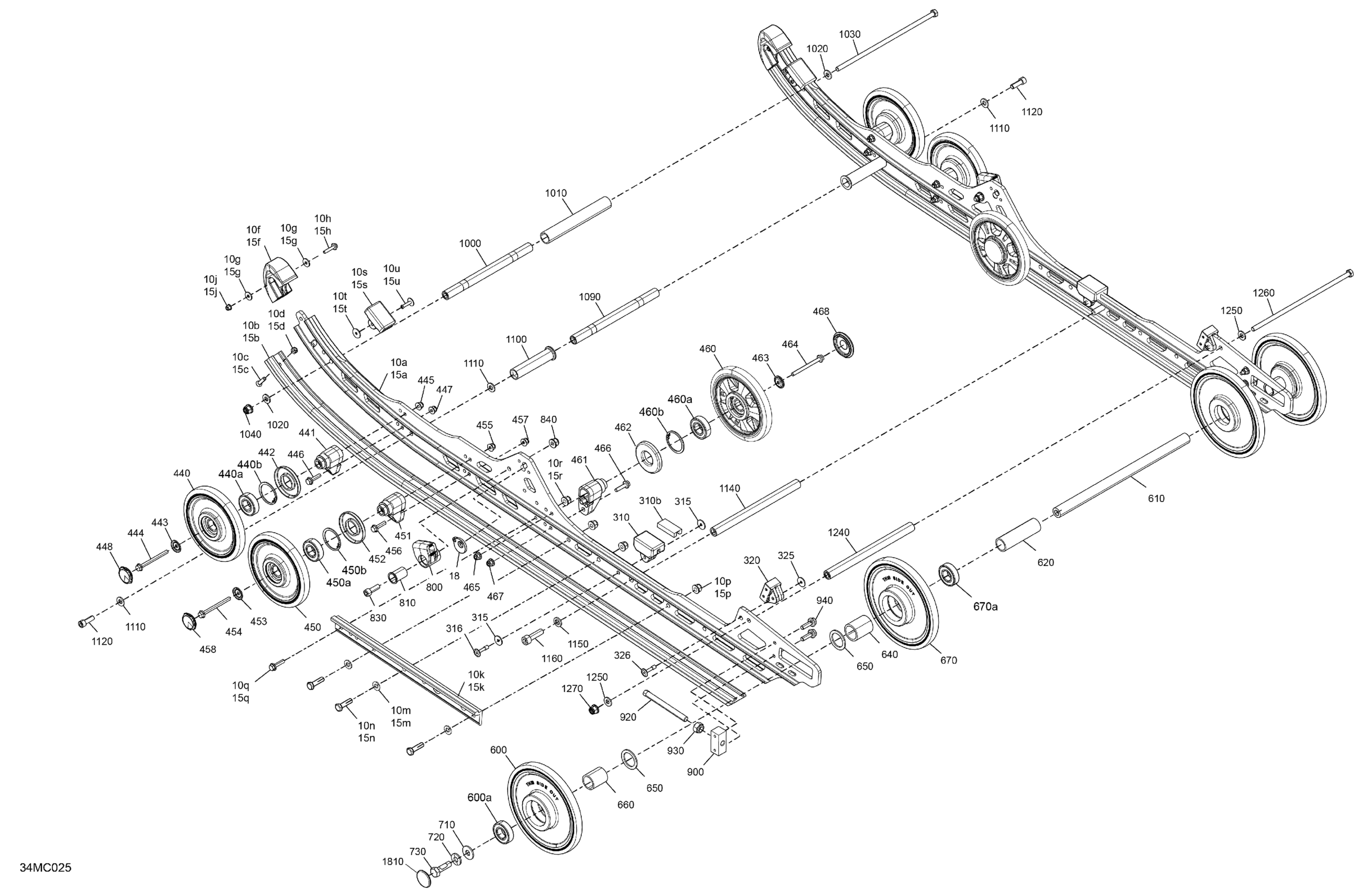

Ski-Doo RENEGADE 600R E-TEC - XRS COMPETITION - 2023 Suspension - Rear - Lower Section Diagram

#

Description
Price

10a

Deep Black, Rail Suspension 137

503196843

$272.36

10b

Black, Slider Shoe 137''

503196283

$26.84

10c

Phillips Screw M6 X 25

208562531

$2.00

10d

Elastic Stop Nut M6

232561434

$1.78

10f

Rail Protector

503196873

$16.39

10g

Washer

250200140

$0.96

10h

Hex. Flange Screw M5 X 25

207652544

$0.48

10j

Flange Elastic Nut M5

233251434

$1.91

10k

Deep Black, LH Rail Reinforcement

503196477

$52.21

10m

Washer

503192494

$3.01

10n

Hex. Cap Screw M8 X 30

207183054

$4.15

10p

Elastic Flange Nut M8

233281466

$0.96

10q

Hex. Flange Screw M6 X 25

250000945

$4.15

10r

Hex. Flange Elastic Nut M6

233261466

$1.91

10s

Rubber Stopper

503193504

$12.31

10t

Washer

503191273

$1.03

10u

Rivet Ornit 4.8 X 27.5

293150256

$1.88

15a

Deep Black, Rail Suspension 137

503196843

$272.36

15b

Black, Slider Shoe 137''

503196283

$26.84

15c

Phillips Screw M6 X 25

208562531

$2.00

15d

Elastic Stop Nut M6

232561434

$1.78

15f

Rail Protector

503196873

$16.39

15g

Washer

250200140

$0.96

15h

Hex. Flange Screw M5 X 25

207652544

$0.48

15j

Flange Elastic Nut M5

233251434

$1.91

15k

Deep Black, RH Rail Reinforcement

503196478

$52.21

15m

Washer

503192494

$3.01

15n

Hex. Cap Screw M8 X 30

207183054

$4.15

15p

Elastic Flange Nut M8

233281466

$0.96

15q

Hex. Flange Screw M6 X 25

250000945

$4.15

15r

Hex. Flange Elastic Nut M6

233261466

$1.91

15s

Rubber Stopper

503193504

$12.31

15t

Washer

503191273

$1.03

15u

Rivet Ornit 4.8 X 27.5

293150256

$1.88

18

Adjustment Cam

503196016

$15.64

310

Rubber Stopper Ass'y | Includes 310 to 310b

503193717

$17.13

310b

Rubber Stopper Ass'y

503195523

$5.09

315

Washer

503191273

$1.03

316

Pop Rivet 3/16"

293150013

$1.27

320

Rubber Stopper

503192750

$12.27

325

Washer

503191273

$1.03

326

Rivet Ornit 4.8 X 27.5

293150256

$1.88

440

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$44.75

440a

Ball Bearing | Package-STD

503190396

$8.18

440b

Retaining Ring

415129371

$8.66

441

Casted Support

503193894

$12.37

442

Labyrinth Seal

503190434

$4.16

443

Wheel Cup M6

503191820

$4.52

444

Hex. Flange Screw M6 X 70

250000944

$4.15

445

Hex. Flange Elastic Nut M6

233261466

$1.91

446

Hex. Flange Screw M6 X 25

250000945

$4.15

447

Hex. Flange Elastic Nut M6

233261466

$1.91

448

Black, Wheel Cap

503192771

$2.21

450

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$44.75

450a

Ball Bearing | Package-STD

503190396

$8.18

450b

Retaining Ring

415129371

$8.66

451

Casted Support

503193894

$12.37

452

Labyrinth Seal

503190434

$4.16

453

Wheel Cup M6

503191820

$4.52

454

Hex. Flange Screw M6 X 70

250000944

$4.15

455

Hex. Flange Elastic Nut M6

233261466

$1.91

456

Hex. Flange Screw M6 X 25

250000945

$4.15

457

Hex. Flange Elastic Nut M6

233261466

$1.91

458

Black, Wheel Cap

503192771

$2.21

460

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$44.75

460a

Ball Bearing | Package-STD

503190396

$8.18

460b

Retaining Ring

415129371

$8.66

461

Casted Support

503193894

$12.37

462

Labyrinth Seal

503190434

$4.16

463

Wheel Cup M6

503191820

$4.52

464

Hex. Flange Screw M6 X 70

250000944

$4.15

465

Hex. Flange Elastic Nut M6

233261466

$1.91

466

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.15

467

Hex. Flange Elastic Nut M6

233261466

$1.91

468

Black, Wheel Cap

503192771

$2.21

600

Wheel 180 | Includes 600 to 600a

503191491

$48.48

600a

Ball Bearing

293350153

$10.82

610

Rear Axle

503167900

$125.34

620

Center Spacer

503156000

$8.66

640

Inner Spacer

503182900

$9.88

650

Washer

503180400

$3.27

660

Outer Spacer

503189809

$14.90

670

Wheel 180 | Includes 600 to 600a

503191491

$48.48

670a

Ball Bearing

293350153

$10.82

710

Washer

503183300

$5.51

720

Conical Spring Washer 10 mm

234201474

$1.60

730

Hex Screw With Nilon Patch, M10 X 35

250000817

$4.15

800

Spring Support Kit

861805547

$7.90

810

Bushing

503196210

$10.72

830

Socket Screw M8 X 25

205082554

$2.00

840

Elastic Flange Nut M8

233281466

$0.96

900

Tensioner

503193808

$37.28

920

Hex Screw M10 x 100

230100054

$6.07

930

Elastic Locking Nut M10

233601466

$2.00

940

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

1000

Axle Stopper Strap

503196930

$10.13

1010

Spacer

503197291

$4.61

1020

Washer

503192494

$3.01

1030

Bolt M8 X 248mm

503192440

$29.07

1040

Elastic Flange Nut M8

233281466

$0.96

1090

Central Axle Shock Absorber

503196676

$170.87

1100

Spacer

503195825

$1.54

1110

Washer

503189276

$3.10

1120

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.82

1140

Axle Strap

503191260

$28.33

1150

Washer

503192496

$0.73

1160

Socket Head Screw M10 X 35

205503554

$7.09

1240

Axle Stopper Strap

503196930

$10.13

1250

Washer

503192494

$3.01

1260

Bolt M8 X 248mm

503192440

$29.07

1270

Elastic Flange Nut M8

233281466

$0.96

1810

Black, Wheel Cap

503195878

$2.19
