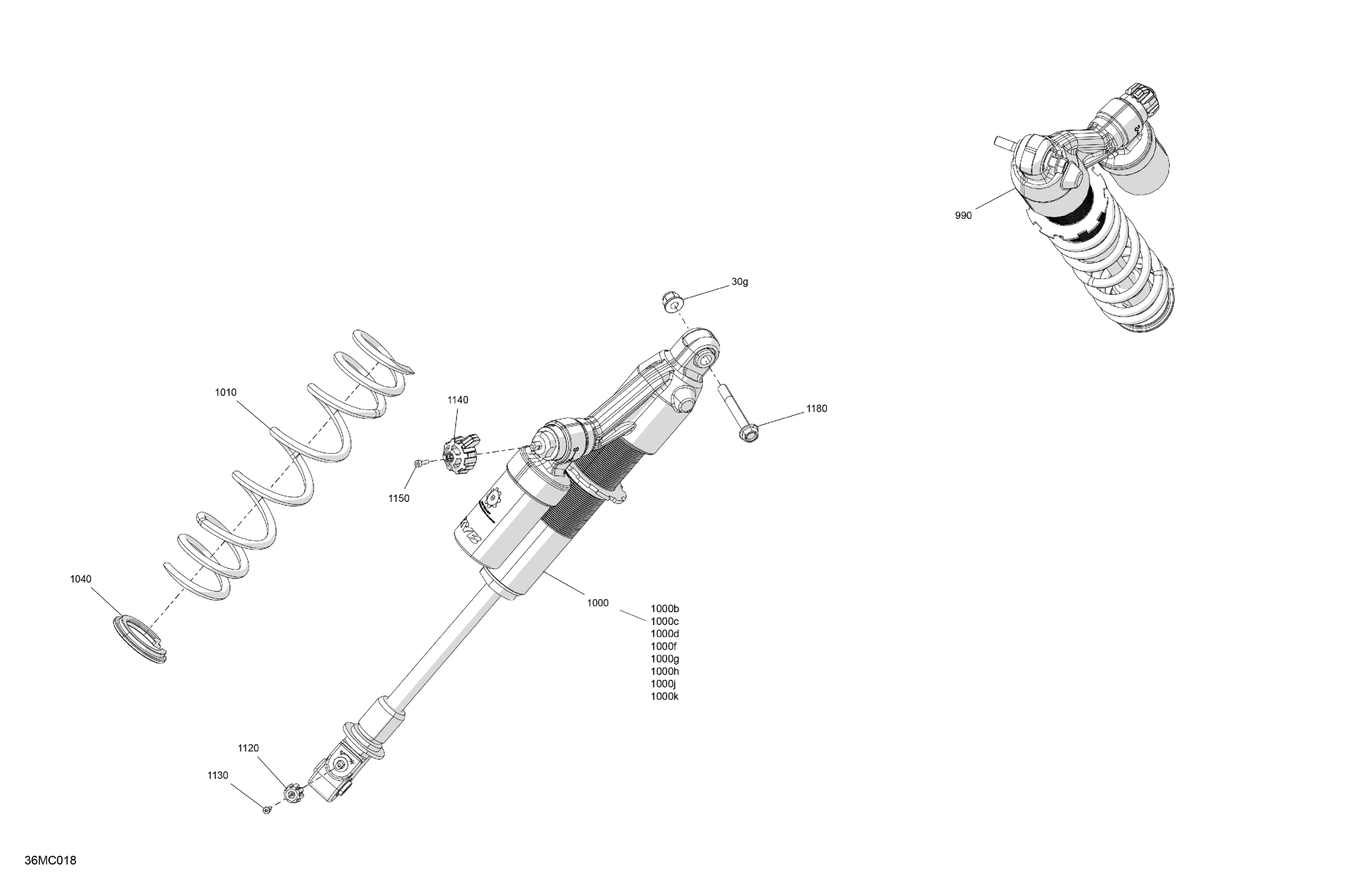

Ski-Doo RENEGADE 600R E-TEC - XRS COMPETITION - 2023 Suspension - Front Shock Diagram

Description

Price

990

RH Front Shock

505074947

$877.49

1000

LH Front Shock | Includes 1000 to 1000k

505074948

$877.49

1000b

O-Ring

415093807

$35.99

1000c

Piston Ring | Not Shown

415093806

$16.86

1000d

Air Valve

505070398

$20.99

1000f

Screw | Not Shown

505070399

$4.12

1000g

O-Ring

505070400

$4.54

1000h

Circlip - Call your local BRP dealership

715900076

$4.12

1000j

O-Ring

415093804

$4.54

1000k

Base Valve

415130165

$78.99

1010

Deep Black, Spring

505075216

$61.99

1040

Spring Stopper

503194270

$19.99

1120

Adjustment Knob

505072753

$2.19

1130

Allen Screw M3 X 0.5 X 10

250000644

$2.11

1140

Shock Adjuster Knob

503193033

$10.99

1150

Allen Screw M3 X 0.5 X 10

250000644

$2.11

1180

Hex. Flange Screw M8 X 58

250000824

$2.11

30g

Elastic Flange Nut M8

233281466

$1.01
