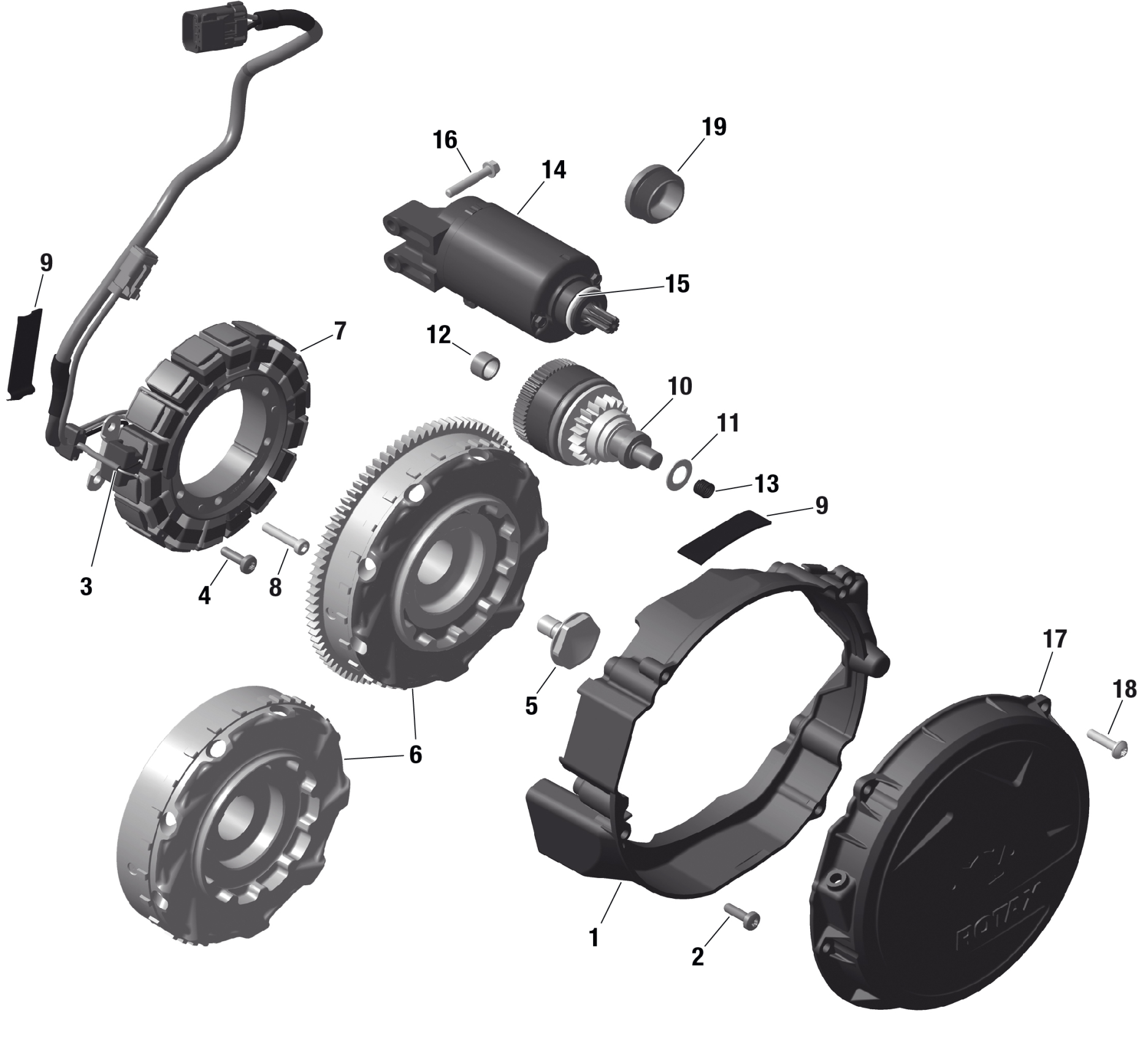

Ski-Doo RENEGADE 600R E-TEC - XRS COMPETITION - 2023 ROTAX - Magneto and Electric Starter Diagram

#

Description
Price

1

Ignition Housing

420911854

$24.49

2

Torx Flange Screw M6 X 20

420441386

$2.11

3

Pickup Ass'y

420966842

$109.99

4

Torx Flange Screw M6 X 20

420441386

$2.11

5

Collar Hex Screw M12 X 25

420840851

$20.99

6

Magneto Flywheel

420866048

$676.99

7

Stator Ass'y 55V/1300W

420864427

$478.99

8

Allen Screw M6 X 30

420540001

$3.29

9

Adhesive Pad, 1.6 mm X 20 mm X 60 mm

420201360

$2.99

10

Not Available As Spare Parts

XXX

Unavailable

11

Not Available As Spare Parts

XXX

Unavailable

12

Not Available As Spare Parts

XXX

Unavailable

13

Not Available As Spare Parts

XXX

Unavailable

14

Not Available As Spare Parts

XXX

Unavailable

15

Not Available As Spare Parts

XXX

Unavailable

16

Not Available As Spare Parts

XXX

Unavailable

17

Not Available As Spare Parts

XXX

Unavailable

18

Plastite Screw

420940431

$7.65

19

Plug

420201930

$4.55
