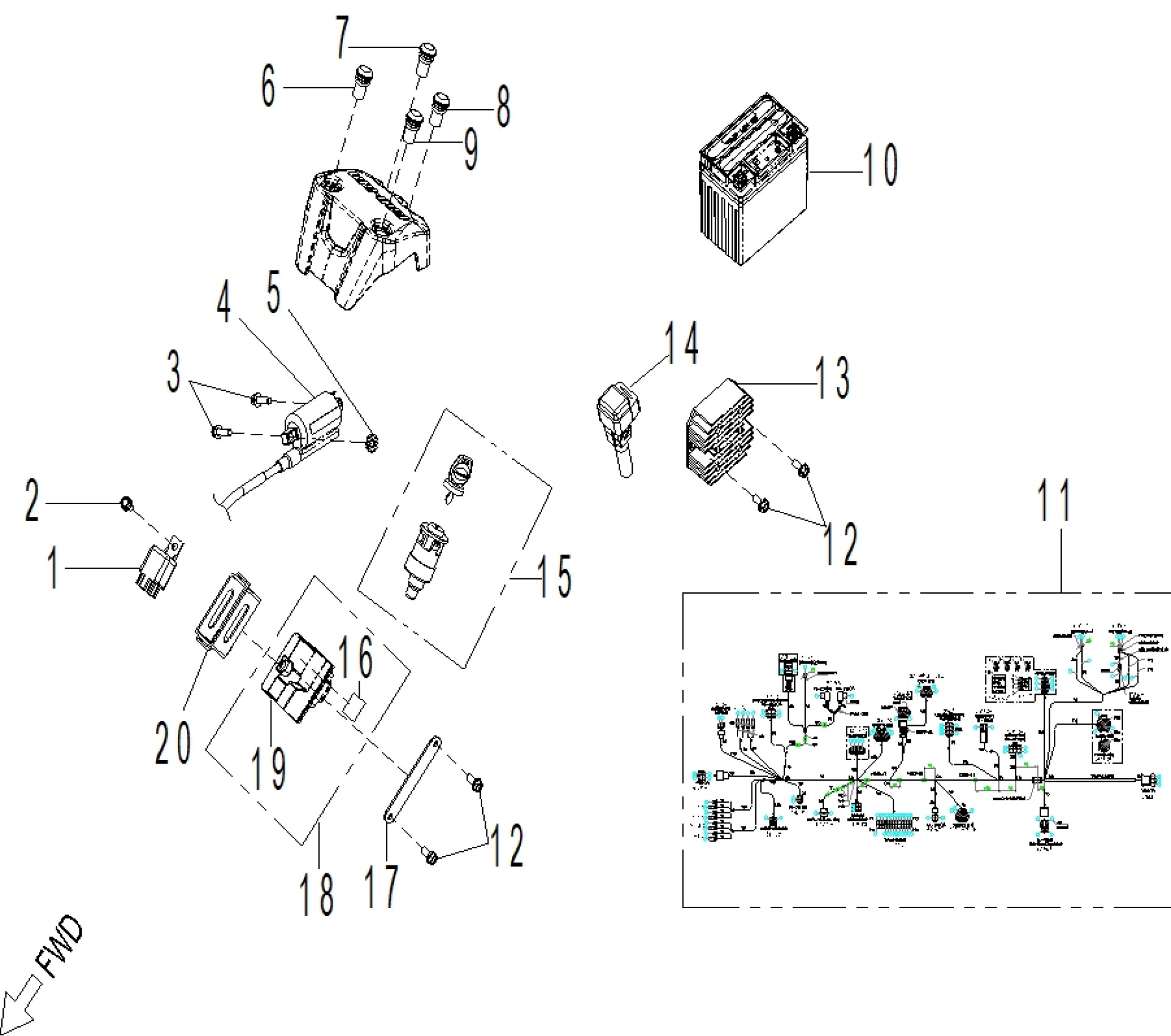

Can-Am 006 - Renegade 110 EFI - Catalyst Gray, International, 2024 08- Electric - Electrical Parts 110 Diagram

EFI Relay

A3850262U000

Unavailable

Hexagonal Head Bolt M6 X 12

A96000060128KL3

Unavailable

Hexagonal Bolt M6 X 20

A960000602080K3

Unavailable

Ignition Coil

A30511T91000

Unavailable

Self Locking Washer

A9410306000000C3

Unavailable

Indicator Light, Malfunction

A34915203000

Unavailable

Indicator Light, Neutral Gear

A34918206000

Unavailable

Indicator Light, Reverse

A34911207000

Unavailable

Indicator Light, Low Fuel

A34928002001

Unavailable

Battery

V31500MAA020

Unavailable

Main Harness

A32100T91000

Unavailable

Hexagonal Head Bolt M6 X 16

A96000060168KL3

Unavailable

Regulator Rectifier

A3160062U000

Unavailable

Starter Relay

A38501201000

Unavailable

Main Switch Ass'y (W / Key) | Includes 150 to 150a

A35100T91000

Unavailable

ECU Fixing Plate

A30445T91000

Unavailable

ECU Module Ass'y | Includes 180 to 180b

A30446T91000

Unavailable

ECU Rubber Mount

A30411T91000

Unavailable
