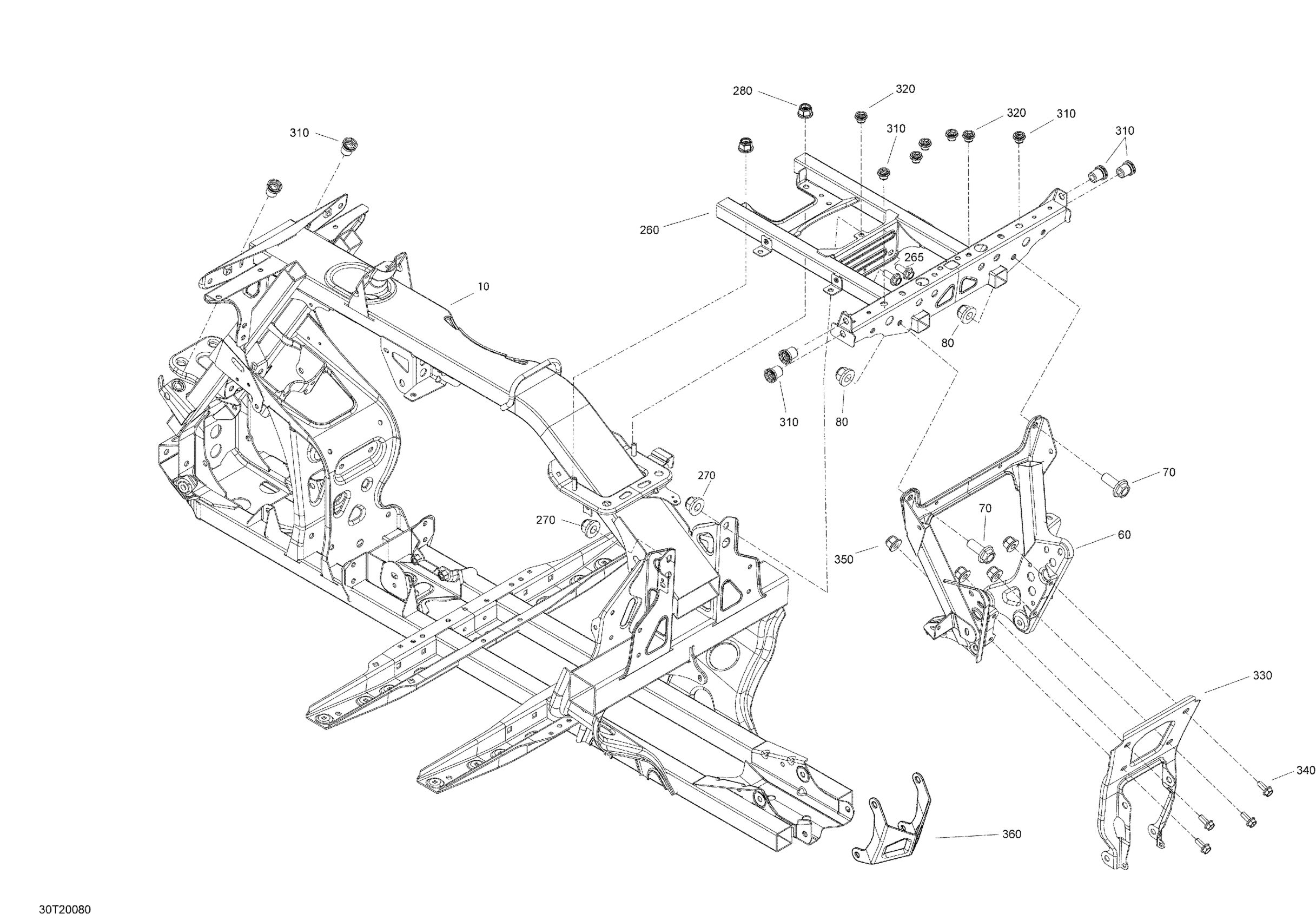

Can-Am Renegade 570 EFI - STD - 2020 Frame Diagram

Chassis

705210815

$1,049.99

Rear Pillar

705210818

$69.99

Hex. Flange Screw M10 X 25

207602546

$2.11

Hex. Flange Elastic Nut M10

233201436

$2.11

Chassis Extension

705210821

$159.99

Hex. Flange Screw M10 X 25

207602546

$2.11

Hex. Flange Elastic Nut M10

233201436

$2.11

Hex. Flange Elastic Nut M8

233281414

$1.47

Insert Half Hex Body M8 x 1.25

293450307

$2.69

Insert Half Hex Body M8 x 1.25

293450307

$2.69

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Rear Support

705203301

$43.99

Hex. Flange Screw M8 X 20

207682046

$1.90

Hex. Elastic Flange Nut M8

233281416

$1.48

Differential Protector | Renegade

705203701

$43.99
