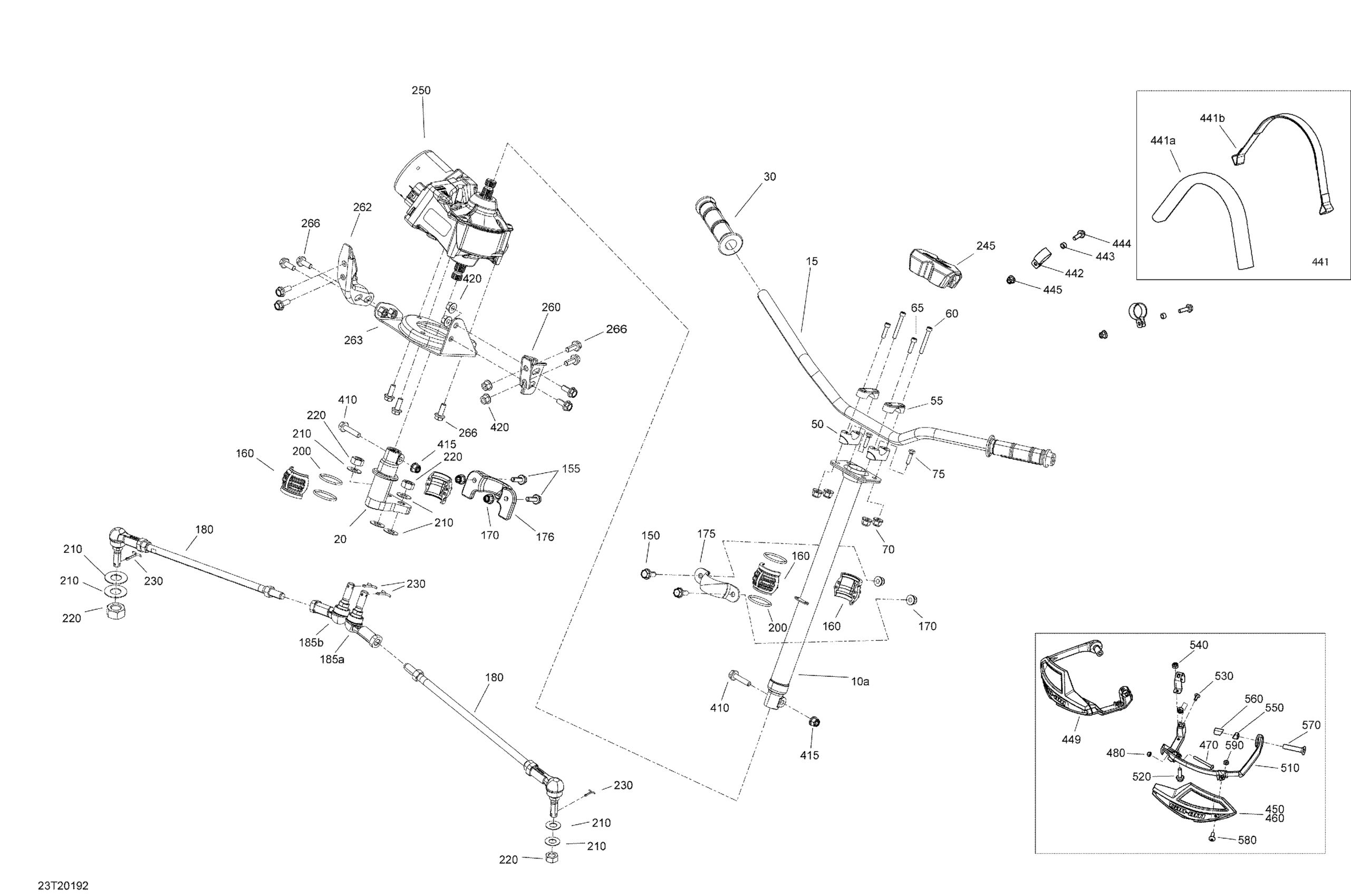

Can-Am Renegade 1000R EFI - XMR - 2020 Steering Diagram

#

Description
Price

10a

Main Tube Kit | Model With DPS

703501108

$74.99

15

Manta Green, Handle Bar | Model-REN XXC Digital Camo

709401530

$110.99

15

Aluminum Handle Bar

709400513

$63.49

15

Platinum Silver Satin, Handlebar | Model Timeless Black

709402361

$110.99

20

Pitman Arm | Model XMR

703501161

$43.99

30

Handle Grip

709400493

$14.83

50

Lower Mounting Clamp

709402750

$25.99

55

Support

709400496

$22.49

60

Socket Head Screw M8 X 60

205086060

$4.12

65

Socket Screw M8 X 30

205083060

$2.96

70

Hex. Elastic Flange Nut M8

233281416

$1.48

75

Hex. Screw M8 X 30

207183060

$1.58

150

Hex. Flange Screw M8 X 20

207682044

$1.15

155

Hex. Flange Screw M8 X 25

207682544

$1.35

160

Spherical Half Bushing

709400783

$7.65

170

Hex. Flange Elastic Nut M8

233281414

$1.47

175

Upper Column Attachment

709400827

$1.09

176

Column Attachment

709401428

$38.99

180

Tie-Rod Ass`y | Includes 180 to 180b

703501039

$110.99

185a

LH Ball Joint

709402303

$36.99

185b

RH Ball Joint

709402302

$36.99

180

Tie-Rod Ass`y | Includes 180 to 180b

703501039

$110.99

185a

LH Ball Joint

709402303

$36.99

185b

RH Ball Joint

709402302

$36.99

200

O-Ring

293300068

$7.65

210

Hardened Washer

706200281

$2.85

220

Nut M12

250100099

$2.09

230

Cotter Pin

211400013

$0.37

245

Steering Cover | XTP

709402328

$90.99

250

Power Steering Ass'y | Model With DPS

709403187

$1,218.99

260

LH Power Steering Bracket | Model With DPS

709402184

$18.49

262

RH Bracket | Model With DPS

709402185

$28.99

263

Power Steering Support | Model With DPS

709401743

$19.99

266

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

410

Hex. Flange Screw M8 X 35

250000986

$2.11

415

Hex. Elastic Flange Nut M8

233281416

$1.48

420

Hex. Flange Nut M8

233081416

$1.15

441

Strap Ass'y | Package XMR

506152115

$44.49

441a

Strap Ass'y | Package XMR

506152115

$44.49

441b

Strap Ass'y | Package XMR

506152115

$44.49

442

Collar Tube | Package XMR

709401720

$19.99

443

Bushing | Package XMR

506152156

$5.61

444

Hex. Flange Screw M6 X 20

207662054

$1.01

445

Hex. Flange Elastic Nut M6

233261466

$2.00

449

Deflector Kit | Package XXC Digital Camo

715003812

$34.99

450

Deep Black RH Air Deflector | Camo Model

709401303

$35.99

450

Manta Green, RH Deflector | Package-XMR 1000 Digital Camo

709401622

$35.99

460

Deep Black LH Air Deflector | Camo Model

709401304

$35.99

460

Manta Green, LH Deflector | Package-XMR 1000 Digital Camo

709401623

$34.99

470

Socket Head Screw M4 X 40

205444056

$2.11

480

Elastic Stop Nut M4

232541414

$0.58

510

Air Deflector Support Kit | X

715001378

$138.49

510

Air Deflector Support Kit | X

715001378

$138.49

510

Air Deflector Support Kit | X

715001378

$138.49

520

Hex. Flange Screw M6 X 20

207662044

$2.00

530

Torx Head Screw M6 X 16

250000717

$2.11

540

Hex. Elastic Stop Nut M6

232561600

$1.15

550

Small Bracket | DS 650 X

709400161

$21.99

560

Large Bracket | DS 650 X

709400162

$20.99

570

Socket Head Screw | X

205384034

$6.49

580

Torx Screw M5 X 14

250000742

$1.47

580

Torx Screw M5 X 14

250000742

$1.47

590

Hex. Elastic Nut M5 | X

232551600

$1.15
