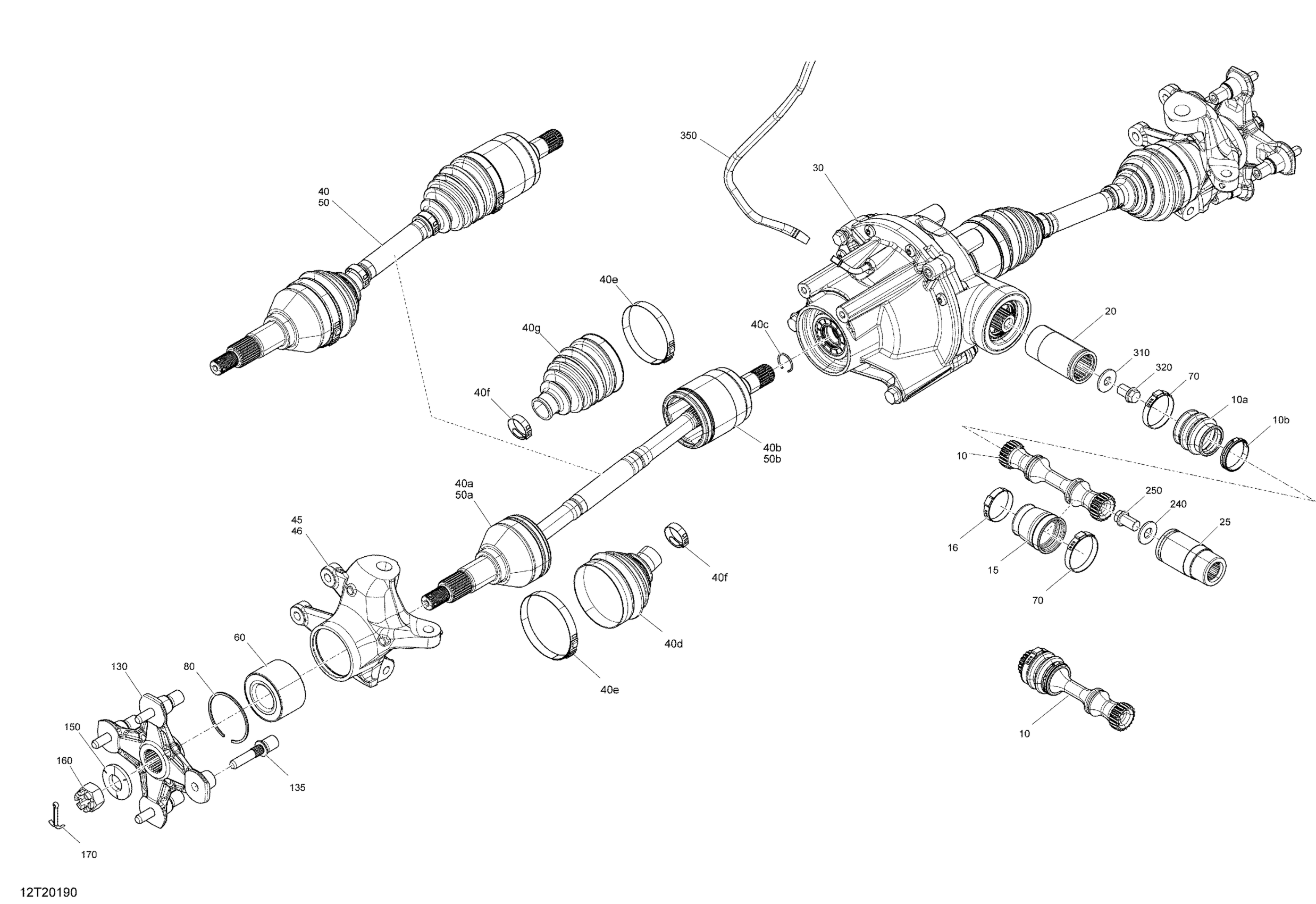

Can-Am Outlander 650 EFI - XMR - 2020 Front Drive - Common Parts Diagram

#

Description
Price

10

Propeller Shaft | Includes 1 to 2

705400913

$211.99

10a

Rubber Boot

715900118

$14.30

10b

Oetiker Gear Clamp 36.1MM

509000045

$8.29

15

Rubber Boot

705401093

$5.00

16

Oetiker Gear Clamp

293650199

$9.69

20

Coupling Sleeve

705401969

$28.49

25

Front Bushing Shaft Kit | 4X4

703500678

$114.99

30

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,789.99

40

RH CV Joint | Includes 40 to 40j

705402238

$275.49

40a

CV Joint

715900428

$259.49

40b

RH Plunging CV Joint

715900395

$259.49

40c

Circlip Joint | Not shown

705401349

$6.50

40d

Boot Kit, Wheel Side

705401354

$42.49

40e

Oetiker Clamp, Large

715900260

$10.33

40f

Oetiker Clamp, Small

715900261

$5.29

40g

Boot Kit, Différential Side

705401355

$42.49

45

LH Knuckle

705403307

$179.99

46

RH Knuckle

705403308

$179.99

50

LH CV Joint | Includes 50 to 50j

705403009

$275.49

50a

CV Joint

705401407

$259.49

50b

LH Plunging CV Joint

715900396

$259.49

60

Ball Bearing

293350150

$52.99

70

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

80

Circlip

293370019

$4.68

130

Wheel Hub

705501900

$132.49

135

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

150

Conical Spring Washer M18

250200171

$7.65

160

Hex. Flange Castellated Nut M18

232291413

$7.98

170

Cotter Pin

250400071

$2.11

240

Flat Washer M12

250200102

$2.11

250

Hex Flange Screw M12 X 20

250001042

$1.90

310

Flat Washer M10 | 4X4

250200014

$1.49

320

Hex Flange Screw M10 X 20 S.Grip

250001046

$4.44

350

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49
