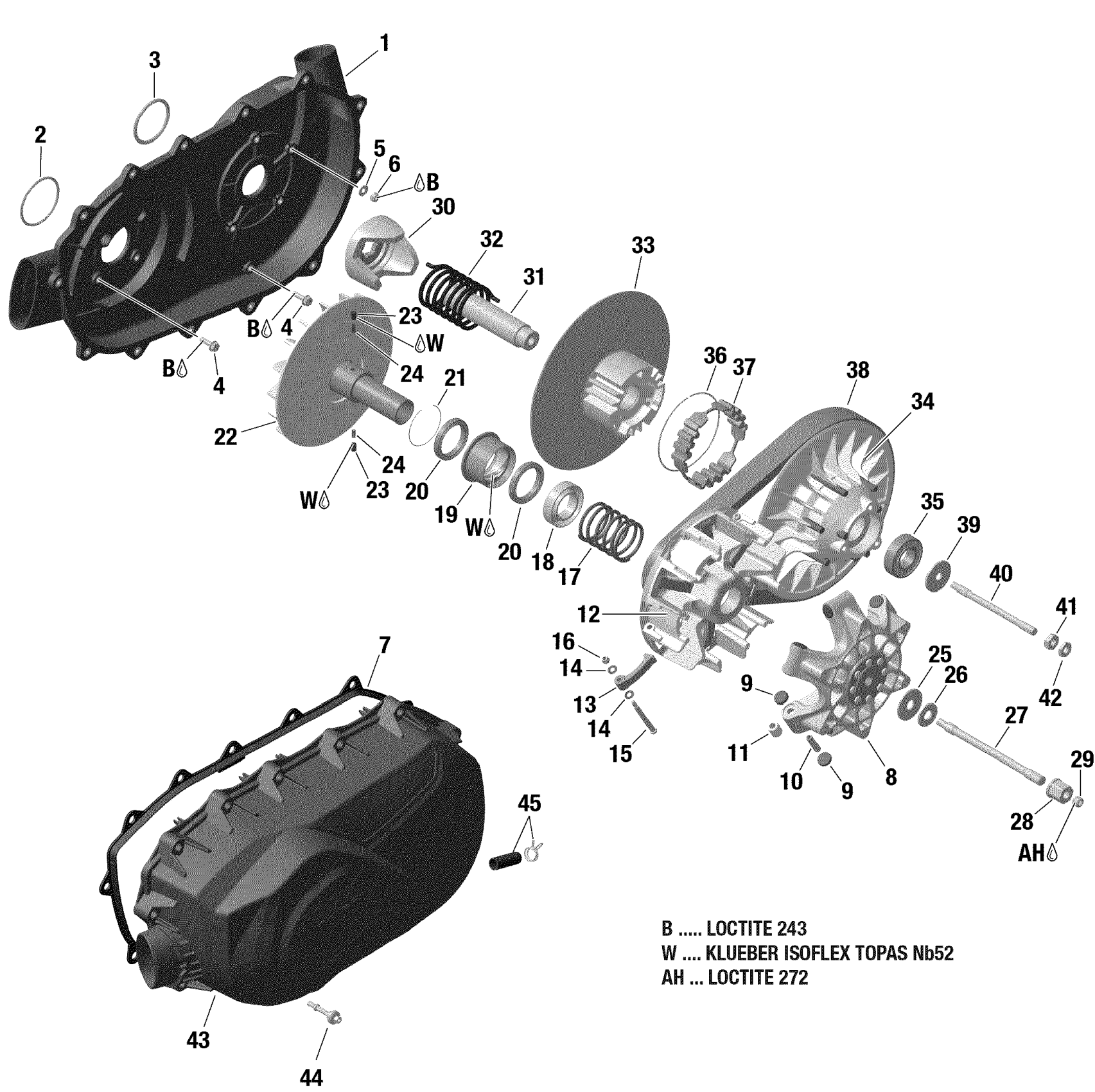

Can-Am Outlander 1000R EFI - XMR - 2020 Transmission - 339 Diagram

#

Description
Price

1

CVT Air Guide

420612304

$194.99

2

O-Ring

420430408

$5.29

3

O-Ring

420631089

$5.29

4

Hex.Screw M6 X 20

420441311

$5.18

5

Flat Washer

224061121

$0.53

6

Lock Nut

420842041

$0.09

7

Gasket

420430126

$41.49

8

Governor Cup

420280664

$369.99

9

Slider Shoe Set

420281296

$65.49

10

Roller Axle

417223257

$6.99

11

Roller

417223767

$11.59

12

Outer Haft

420280467

$329.99

13

Lever Set Ass'y | Includes 11a to 14

420248682

$174.99

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Compression Spring, Drive Pulley

420238617

$29.49

18

Seat Spring

420627578

$35.99

19

Drive Pulley Clutch

420257195

$114.99

20

Ball Bearing

420632377

$49.99

21

Retaining Ring

420245951

$5.31

22

Inner Half

420280374

$339.99

23

Spring Sleeve

420229577

$18.49

24

Spring

420239134

$3.06

25

Clutch Bolt Repair Kit

703500842

$68.99

26

Clutch Bolt Repair Kit

703500842

$68.99

27

Clutch Bolt Repair Kit

703500842

$68.99

28

Clutch Bolt Repair Kit

703500842

$68.99

29

Clutch Bolt Repair Kit

703500842

$68.99

30

Cam

420280701

$153.49

31

Driven Pulley Shaft

420220914

$129.99

32

Compression Spring

420638040

$61.99

33

Inner Half Ass'y

420280786

$308.49

34>37

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$359.99

35

Ball Bearing

420932421

$28.49

36

Retaining Ring

420245911

$5.31

37

Torque Gear

420660124

$23.49

38

V-Belt

422280366

$179.99

39

Thrust Washer

420627594

$13.49

40

Stud Screw M10 X 136

420441900

$25.99

41

Nut M10

420242097

$2.51

42

Hexagonal Nut M10

420242403

$1.90

43

Variator Cover

420612316

$169.49

44

Hex Screw M6 X 30

420440568

$8.58

45

Drain Plug Kit

707001179

$9.63
