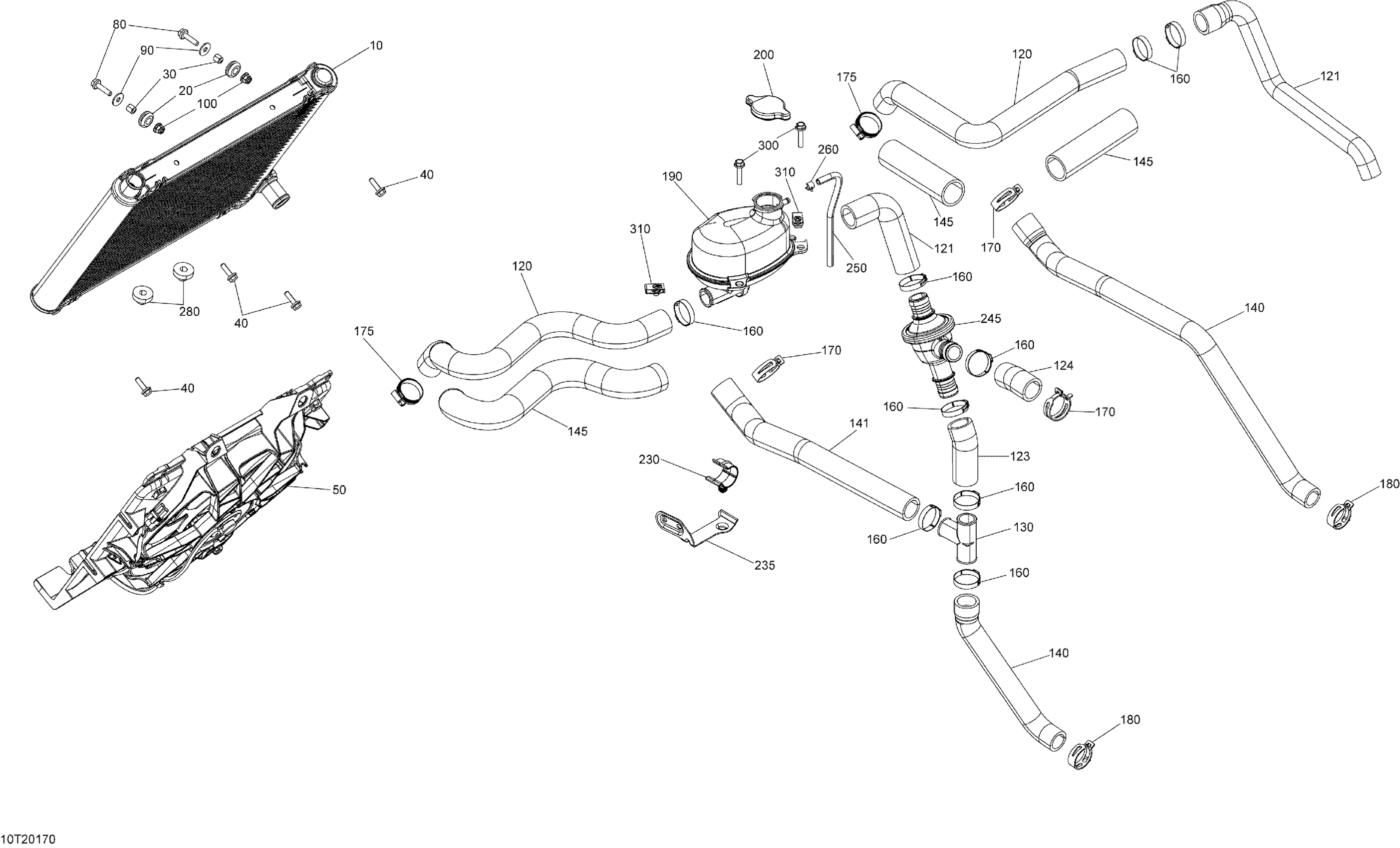

Can-Am Renegade 1000R EFI - XMR - 2020 Cooling - System Diagram

#

Description
Price

10

Radiator

709200286

$476.99

20

Grommet

709000582

$4.69

30

Bushing

293900105

$7.65

40

Hex. Flange Screw M6 X 20

207662034

$2.11

50

Fan Ass'y

709200564

$244.99

80

Hex. Flange Screw M6 X 25

207662534

$2.11

90

Flat Washer

250200082

$0.42

100

Flange Elastic Nut M6

233261434

$4.44

120

Hose Inlet

709200897

$32.99

121

Thermostat Inlet Hose | Engine 850-1000R

709200785

$10.11

123

Cylinder Hose | Engine 850-1000R

709200629

$8.60

124

Cylinder Hose | Engine 850-1000R

709200630

$8.60

130

T-Fitting

509000219

$15.89

140

Outlet Hose | Engine 850-1000R

709200787

$18.56

141

Radiator Outlet Hose | Engine 850-1000R

709200786

$23.99

145

Tubing 35 MM 1000MM Long

219704428

$10.99

160

Gear Clamp

509000162

$7.29

170

Norma Spring Clamp

293650166

$4.44

175

Norma Gear Clamp

293650098

$4.44

180

Norma Spring Clamp

293650166

$4.44

190

Coolant Tank

709200297

$55.99

200

Radiator Pressure Cap

709200207

$25.49

230

Retainer

275500526

$4.55

235

Hose Support

709200641

$9.69

245

Thermostat

709200406

$98.99

250

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

260

Spring Clamp

414554800

$0.88

280

Grommet

709200948

$8.89

300

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

310

Panel Nut M6 X 1.0

250100198

$2.11
