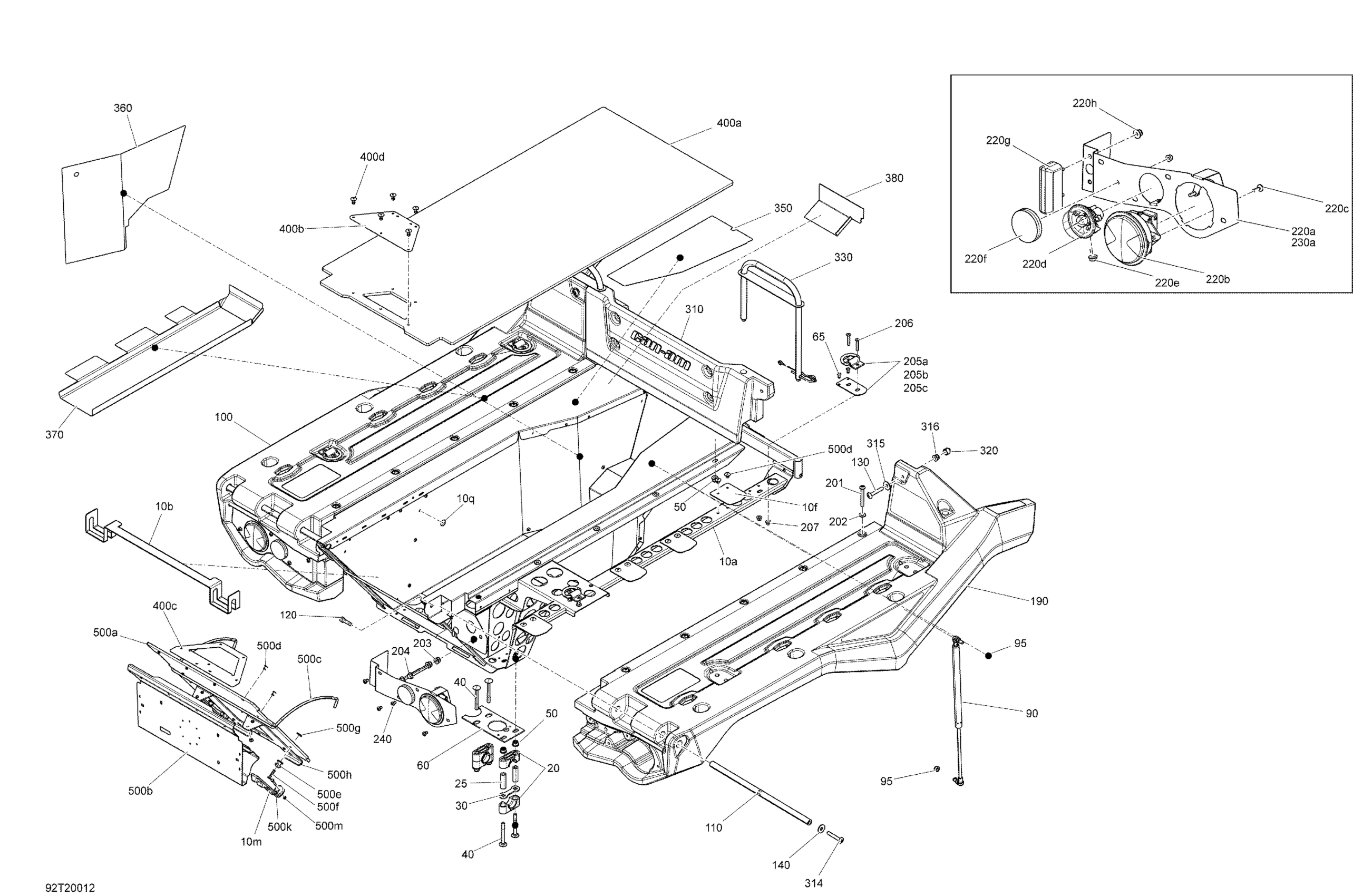

Can-Am Outlander MAX 6X6 - 650 EFI - DPS - 2021 Cargo - Kit Platform Diagram

#

Description
Price

10a

Metal Platform Paint | Includes 10a to 10a4

708301728

$1,519.99

10b

Brace Support

705204887

Unavailable

10f

Linq Hole Filler

708301095

$10.99

10h

Cotter Spring

505073670

$2.19

10j

Retainer Cable

293750069

$15.99

10m

Hood Latch

5342952

$24.49

10q

Black, Dart

414644300

$0.98

10s

Upper Heat Shield Wide

707601725

$41.99

20

Housing Half

506150400

$7.62

25

Housing Bushing

506150500

$7.99

30

Stopper Plate

506150600

$4.39

40

Carriage Bolt M8 X 70

207787044

$1.37

50

Hex. Flange Elastic Nut M8

233281414

$1.47

60

Cargo Box Hinges Reinforcement Plate

705203836

$18.49

65

Pop Rivet 3/16"

293150103

$0.55

90

Cargo Box Gas Shock

708301058

$114.99

95

Hex. Elastic Stop Nut M8

232581414

$0.56

100

Black, LH Side Platform | Model-Black

708303737

$259.99

110

Hinge Axis

708300935

$104.99

120

Socket Head Screw M8 X 30

205083044

$1.15

130

Torx Truss Screw M8 X 50

250000761

$7.51

140

Stainless Steel Flat Washer

234082670

$2.11

190

Black, RH Side Platform | Model-Black

708303738

$259.99

201

Torx Truss M/S M8 X 40

205484056

$7.51

202

Washer

503192494

$3.17

203

Hex. Flange Elastic Nut M8

233281414

$1.47

204

Hex. Flange Screw, M8 X 65

207686544

$13.16

205a

D-Ring

708302990

$4.29

205b

Tie-Down Ring Spring

708302991

$2.39

205c

Tie-Down Ring Bracket

708302992

$2.39

207

Hex. Flange Nut M6

233061414

$1.68

220a

LH Tail Light Plate | Model-T3

605356527

Unavailable

220a

LH Tail Light Plate | Model-International

708301274

$41.49

220b

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

220c

Torx Screw K50 X 16

250000720

$1.69

220d

Flasher | Europe

710002964

$35.99

220e

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

220f

Red Reflector

705011221

$14.49

220g

License Light

710002055

$58.49

220h

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

230a

RH Tail Light Plate | Model-T3

605356528

Unavailable

230a

RH Tail Light Plate | Model-International

708301275

$38.99

240

Socket Screw Button Head M6 X 10 | DS 650

250000436

$2.11

310

Black, Front Panel Short

708302081

$459.99

314

Torx Truss Screw M8 X 50

250000761

$7.51

315

Stainless Steel Flat Washer

234082670

$2.11

316

Hex. Flange Elastic Nut M8

233281414

$1.47

320

Cover | Model-T3

28056

$5.89

330

Locking Handle Weld

708300939

$72.99

350

Bed Heat Shield On Top

708301336

$14.99

360

Bed Heat Shield On Side

708301337

$16.49

370

Side Heat Shield

708301338

$16.49

380

Heat Shield

708302168

$16.49

400a

Middle Deck

708300959

$339.99

400b

Filler Plate

708301262

Unavailable

400c

Handle Plate

708301263

$19.99

400d

Pop Rivet 3/16”

293150108

$1.19

500a

Lower Tailgate

708300964

$234.99

500b

Register Plate Support

708301942

$48.99

500c

Limiter Rail

708301213

$56.99

500d

Stavex Rivet

293150144

$0.82

500e

Counter Roller

605449087

$4.12

500f

Rivet

293150212

$2.11

500g

Plate

708301695

$2.09

500h

Limiter Hook

708301261

$38.99

500k

Hex.Flange Screw M5 X 20

207652044

$1.90

500m

Hex. Flange Elastic Nut M5

233251414

$1.04
