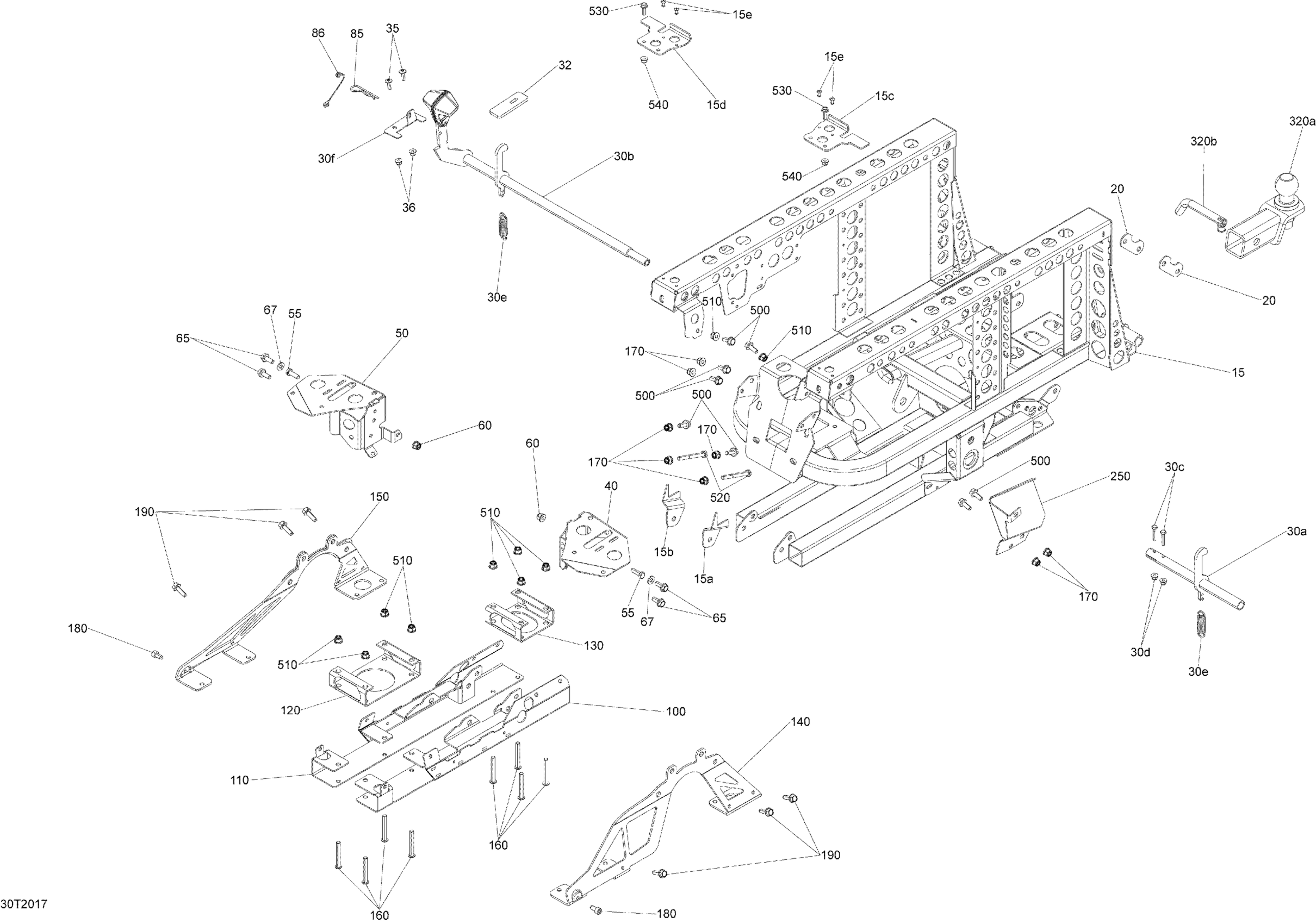

Can-Am Outlander T MAX 6X6 - 1000 EFI - T Regulation, 2020 Frame - Rear Part Diagram

Rear Frame | Includes 15 to 15e

705204598

$1,019.99

LH Grip Plate

605356426

$20.99

RH Grip Plate

605356425

$20.99

LH Cargo Support

705204600

$18.49

RH Cargo Support

705204601

$18.49

Stavex Rivet

293150144

$0.82

Support Plate

705203564

$24.49

LH Tube

705203669

$104.99

RH Tube

705203670

$119.99

Hex. Cap Screw M6 X 30

207063054

$6.39

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Spring

415107100

$6.35

Lever Support

705203834

$18.49

Rubber Collar

708301280

$20.99

Torx Screw M6 X 20

250000722

$1.68

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

LH Rear Fender Support

705203611

$76.99

RH Rear Fender Support

705203612

$76.99

Hexagonal Screw

250000556

$2.11

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Flange Screw M8 X 20

207682046

$1.90

Washer

503192494

$3.17

Cotter Spring

505073670

$2.19

Retainer Cable

293750069

$15.99

LH Lower Beam Reinforcement

705203724

$41.99

RH Lower Beam Reinforcement

705203725

$41.99

Front Support Plate

705203726

$96.99

Rear Support Plate

705203727

$96.99

LH Differential Support Reinforcement

705203728

$214.99

RH Differential Support Reinforcement

705203729

$214.99

Torx Screw Scotch Grip M8X60

250000777

$8.11

Hex. Elastic Flange Nut M8

233281416

$1.48

Forming Screw HD.DIN.7500E

250000678

$3.91

Hex Forming Screw DIN.7500D

250000376

$7.51

Heat Shield

707601726

$22.49

Trailer Hitch Kit | Package PRO International

705210328

$243.49

Hitch Pin

705204490

$52.99

Hex. Flange Screw M8 X 20

207682046

$1.90

Hex. Elastic Flange Nut M8

233281416

$1.48

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

Hex. Flange Screw M6 X 20

207662054

$1.01

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
