Description

Price

10

Rear Drive Unit Ass'y | Includes 1000 to 1000u

705502370

$969.99

15

Rear Cover

705502389

$179.99

20

Pinion 10 Teeth

705502823

$219.99

30

Gear 36 Teeth

705502822

$409.99

40

Ball Bearing

705502055

$31.99

50

Ball Bearing

705502737

$48.49

60

Ball Bearing

705502738

$59.49

70

Needle Bearing

705502058

$49.99

80

Nut | 4X4

705401603

$35.99

85

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

90

Differential Shim 0.02 mm

705502060

$13.76

95

Flat Washer M10 | 4X4

250200014

$1.49

100

Pinion Gear Shim 1.67 mm

705502061

$18.99

110

Oil Seal

705501996

$21.99

120

Oil Seal

705402405

$27.49

130

Fill Level Plug | 4X4

705500504

$10.01

140

SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership

205483046

Unavailable

150

Breather Tube

705501584

$14.99

160

Seal

705502064

$8.47

170

O-Ring

705502065

$5.95

180

Copper Washer | 4X4

705500506

$0.45

220

Fill Level Plug | 4X4

705500504

$10.01

225

Copper Washer | 4X4

705500506

$0.45

250

Hex. Flange Screw M10 X 135

250001041

$5.59

255

Screw Socket HD M10 X 140

250001094

Unavailable

260

Hex. Flange Elastic Nut M10

233201436

$2.11

263

WASHER M10 - Call your local BRP dealership

20005

Unavailable

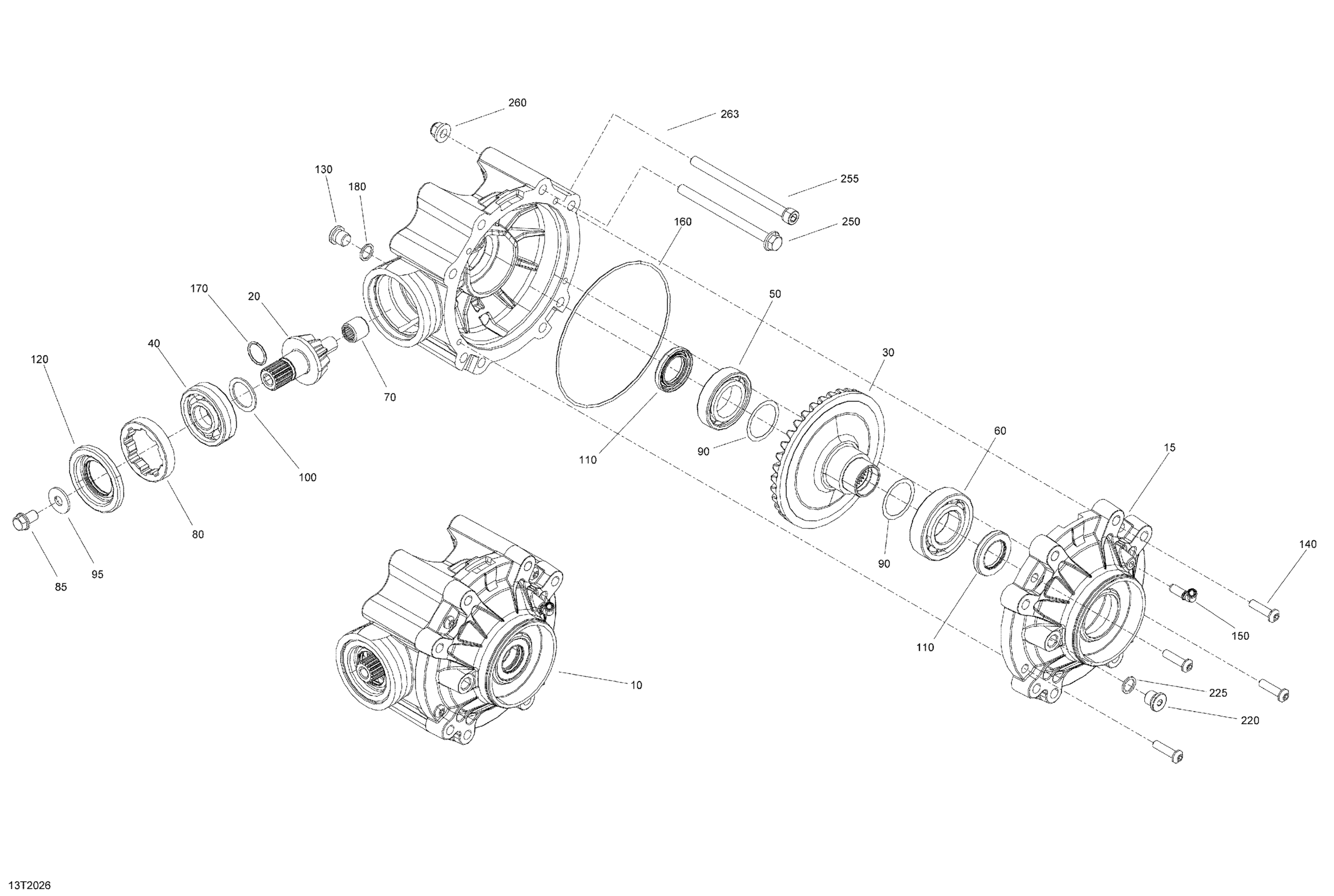

Can-Am Outlander MAX 6X6 - 450 EFI - 2020 Rear Drive - Final Drive Unit Diagram

Rear Drive Unit Ass'y | Includes 1000 to 1000u

Rear Cover

Pinion 10 Teeth

Gear 36 Teeth

Ball Bearing

Ball Bearing

Ball Bearing

Needle Bearing

Nut | 4X4

Hex. Flange Screw M10 X 16 S.GRIP

Differential Shim 0.02 mm

Flat Washer M10 | 4X4

Pinion Gear Shim 1.67 mm

Oil Seal

Oil Seal

Fill Level Plug | 4X4

SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership

Breather Tube

Seal

O-Ring

Copper Washer | 4X4

Fill Level Plug | 4X4

Copper Washer | 4X4

Hex. Flange Screw M10 X 135

Screw Socket HD M10 X 140

Hex. Flange Elastic Nut M10

WASHER M10 - Call your local BRP dealership
