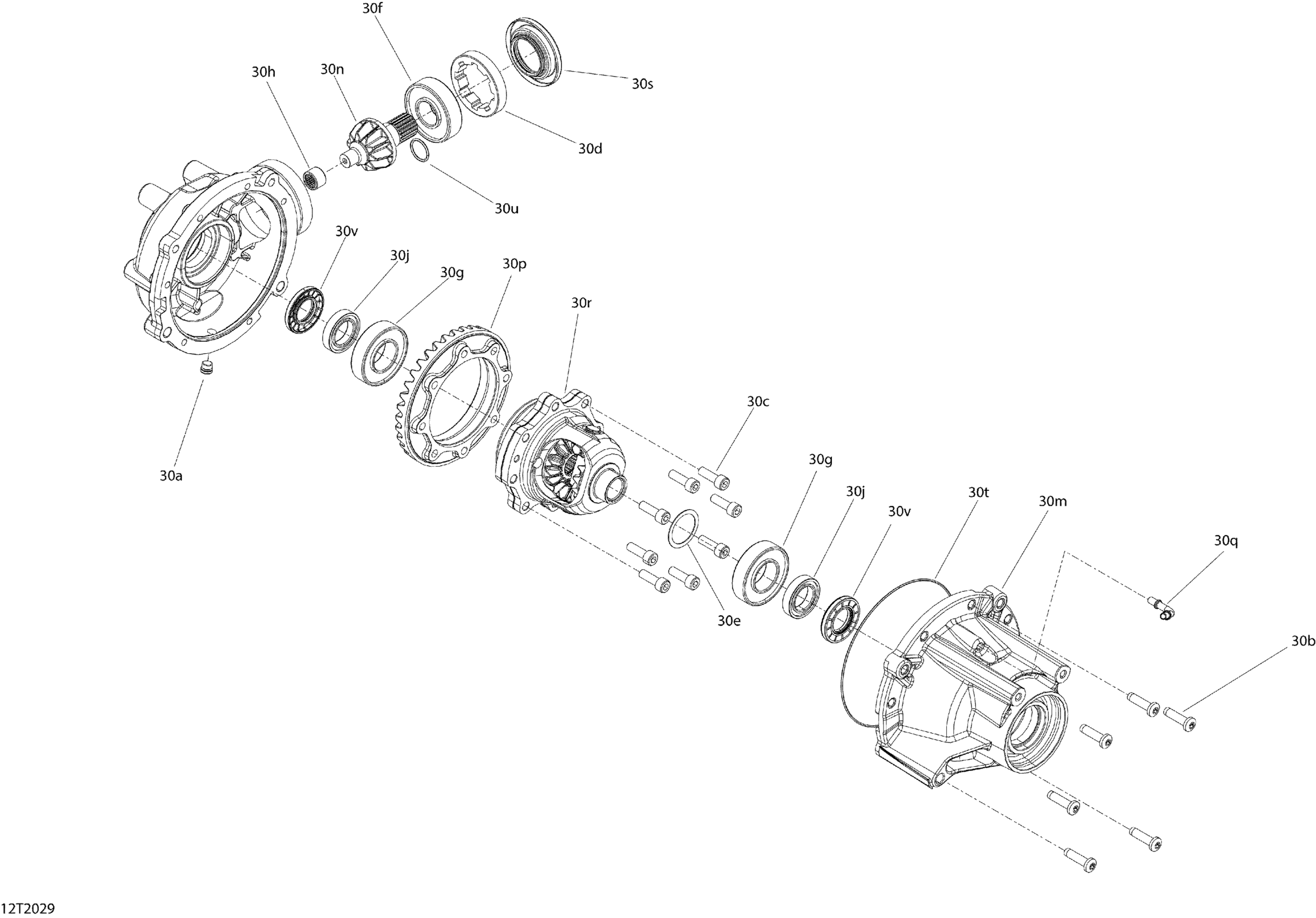

Can-Am Outlander MAX 6X6 - 450 EFI - 2020 Front Drive - Differential Parts Diagram

Description

Price

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,789.99

Front Differential | Includes 8 to 31

703500907

$1,579.99

30a

Drain Plug | After May 30, 2014

705501885

$14.22

30b

Screw | 4X4

705401601

$10.49

30c

Screw | After May 30, 2014

705401602

$6.19

30d

Nut | 4X4

705401603

$35.99

30e

Shim | 4X4

705401604

$57.99

30f

Ball Bearing | After May 30, 2014

705401605

$31.99

30g

Ball Bearing | 4X4

705401606

$51.99

30h

Ball Bearing | After May 30, 2014

705402848

$49.99

30j

Ball Bearing | After May 30, 2014

705401608

$51.99

30m

Front Cover | After May 30, 2014

705401610

$149.99

30n

Pinion 10 Teeth | After May 30, 2014

705402841

$219.99

30p

Gear 36 Teeth | After May 30, 2014

705401612

$409.99

30q

Vent Valve | After May 30, 2014

705401613

$16.49

30r

Differential | Package-DPS, XT, XTP

705402182

$1,128.49

30r

Differential | Package-STD

705402184

$977.49

30s

Oil Seal | After May 30, 2014

705401615

$19.49

30t

Seal | After May 30, 2014

705401616

$14.28

30u

O'Ring | After May 30, 2014

705401617

$7.20

30v

Gasket | 4X4

705401618

$18.49

30w

Shim

705401769

$7.69

30x

Shim

705401770

$7.09

30y

Flat Washer M10 | 4X4

250200014

$1.49

30z

Hex Flange Screw M10 X 20 S.Grip

250001046

$4.44
