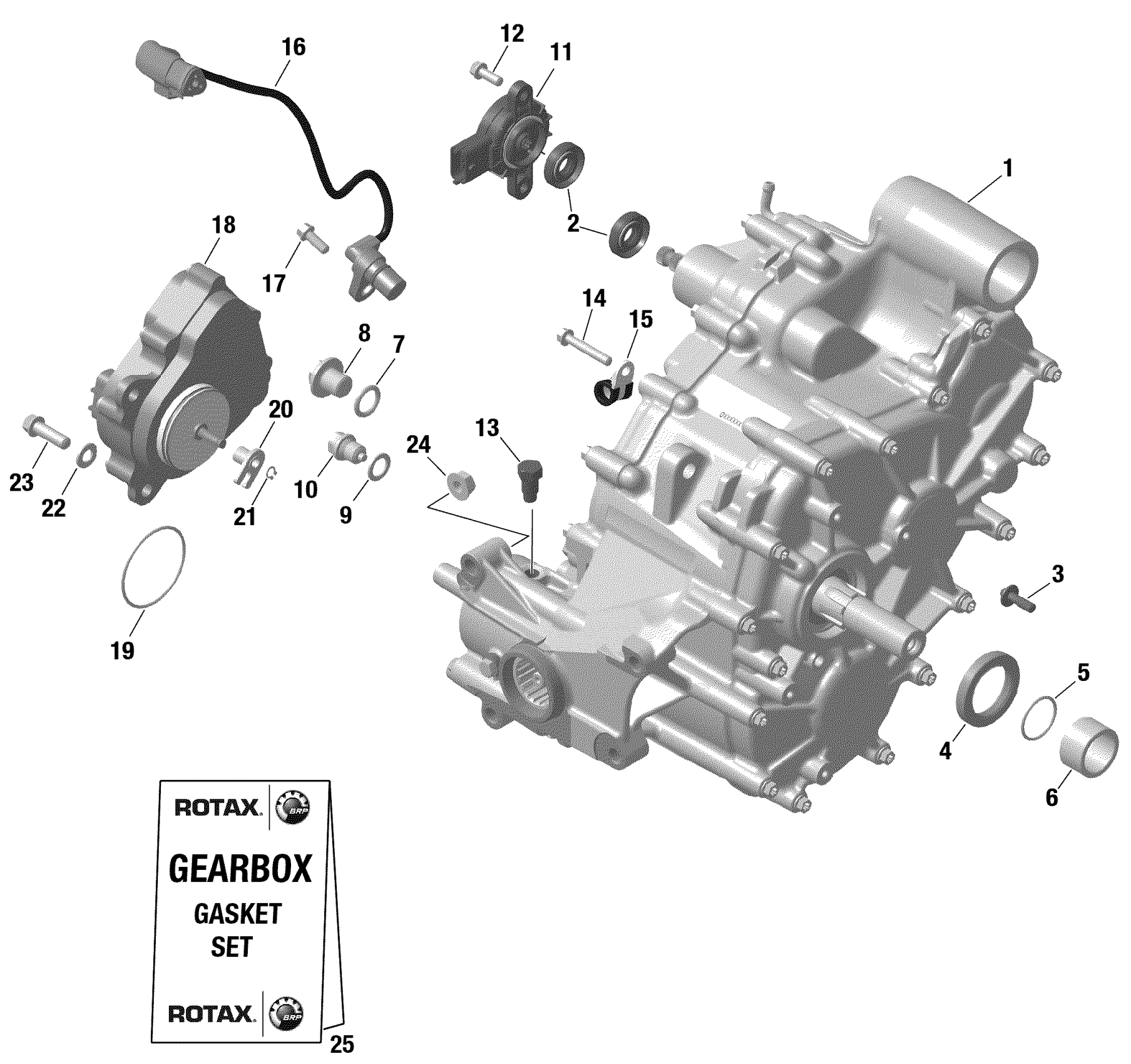

Can-Am Outlander 1000R EFI - XMR - 2021 Rotax - Gear Box And Components 420686214 Diagram

#

Description
Price

1

Gear Box Ass'y

420686214

$2,859.99

2

Oil Seal

420250452

$17.59

3

Distance Screw M6

420441433

$3.49

4

Oil Seal

420950089

$19.49

5

O-Ring

420631612

$4.33

6

Distance Ring

420647267

$42.49

7

O-Ring

420650350

$12.11

8

Plug Screw M14 X 1.5

420241662

$15.81

9

Copper Washer

420250640

$0.98

10

Magnetic Drain Plug M12

420241787

$17.99

11

Angle Rotation Sensor

420266168

$194.99

12

Torx Flange Screw M6 X 16

420440162

$3.17

13

Plug Screw M10X10

420241905

$2.24

14

Torx Flange Screw M6 X 35

420440274

$1.01

15

Cable Clamp

420251692

$13.18

16

Camshft Position Sensor Ass'y

420265727

$109.99

17

Torx Flange Screw M6 X 16

420440162

$3.17

18

Actuator Ass'y 4 pins

715900613

$319.99

19

O-Ring

293300117

$4.44

20

Shifting Fork

415129175

$16.49

21

Circlip | 4X4

293370042

$3.17

22

Flat Washer 8.4 mm

420250315

$1.15

23

Torx Flange Screw M8 X 25

420440372

$4.12

24

Hex. Nut M8

420842619

$2.35

25

Gasket Set

420684149

$80.49
