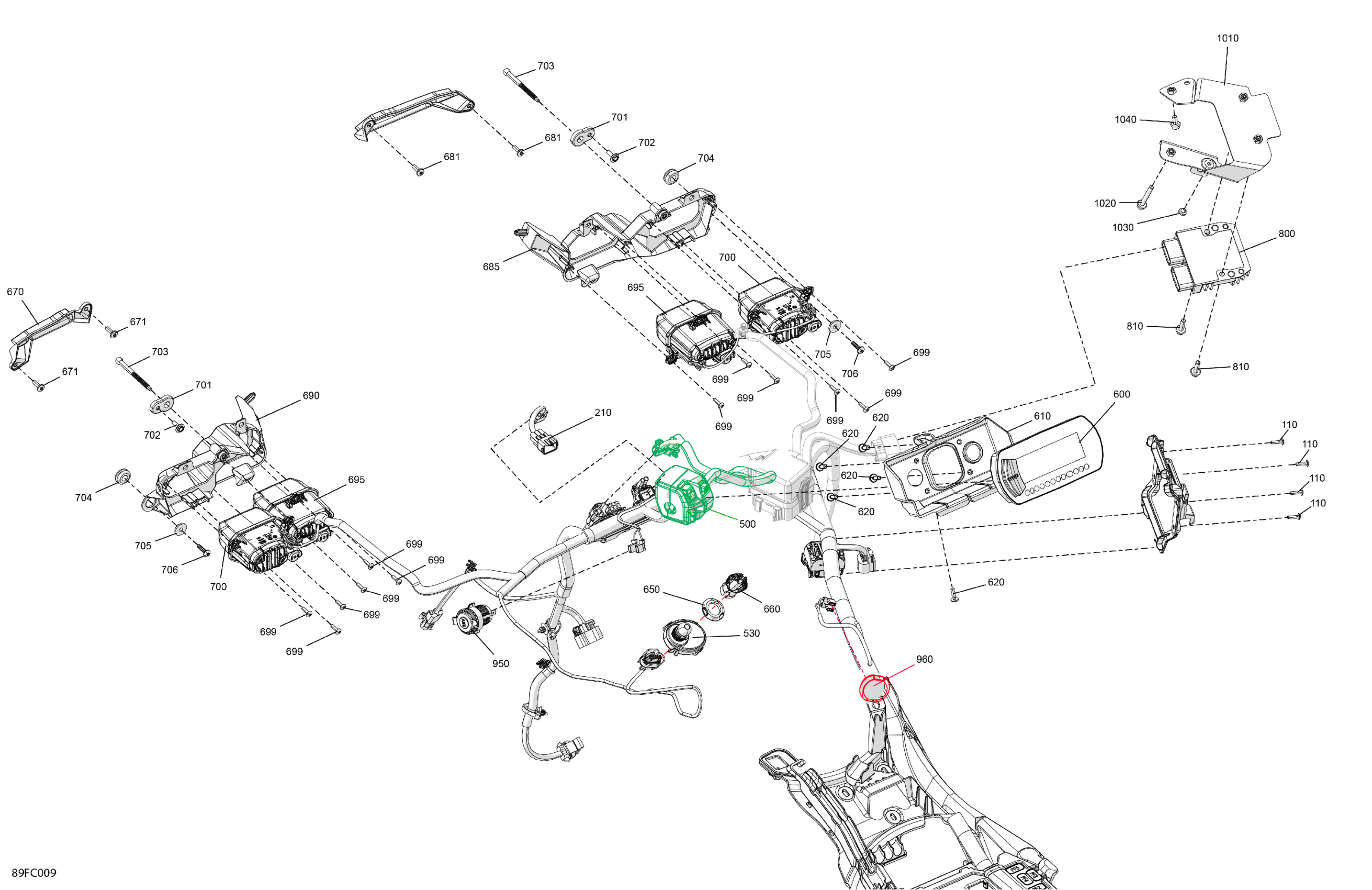

Can-Am Outlander PRO HD5 - CE, 2023 Electric - Front Section Diagram

Torx-Truss Pt K40 X 16

250000759

$1.74

Switch Wiring Harness

710009366

$41.51

LH Front Switch Housing | CARB Vehicle

710006944

$272.28

Terminal DESS CAN | CARB Vehicle

710008832

$60.42

Multifunction Gauge Compact Mono

710008108

$383.05

Int Gauge Support

710007694

$6.45

Torx Screw K50 X 16

250000720

$1.39

Specialized Nut

278004274

$2.72

Grey Key RFID | Except Model Europe, Except T3

710004964

$55.35

Grey, Can-Am DESS Key

515179384

$55.35

LH Cap

705015024

$10.22

Torx Screw K50 X 16

250000720

$1.39

Torx Screw K50 X 16

250000720

$1.39

RH Front Headlight Support

710008319

$42.28

LH Front Headlight Support

710008318

$42.28

HIgh Beam Light

710006910

$156.89

Torx-Truss Pt K40 X 16

250000759

$1.74

Low Beam Light

710008088

$156.89

Ball Socket

293900157

$8.45

Screw PT Type K-50 X 16

250000959

$1.74

Ajustment Screw

710005837

$6.45

Grommet

709000582

$4.38

Shoulder Bushing

710004749

$2.75

Torx Screw K50 X 16

250000720

$1.39

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

Hex. Flange Screw M6 X 25

207562544

$1.39

DC Outlet

710001248

$31.17

Rubber Plug

710002858

$2.75

Voltage Regulator Support

710006542

$16.12

Hex. Flange Screw M6 X 40

207664044

$2.18

Rubber Stopper

293830229

$6.92

Hex. Flange Screw M6 X 12

207661244

$1.70
