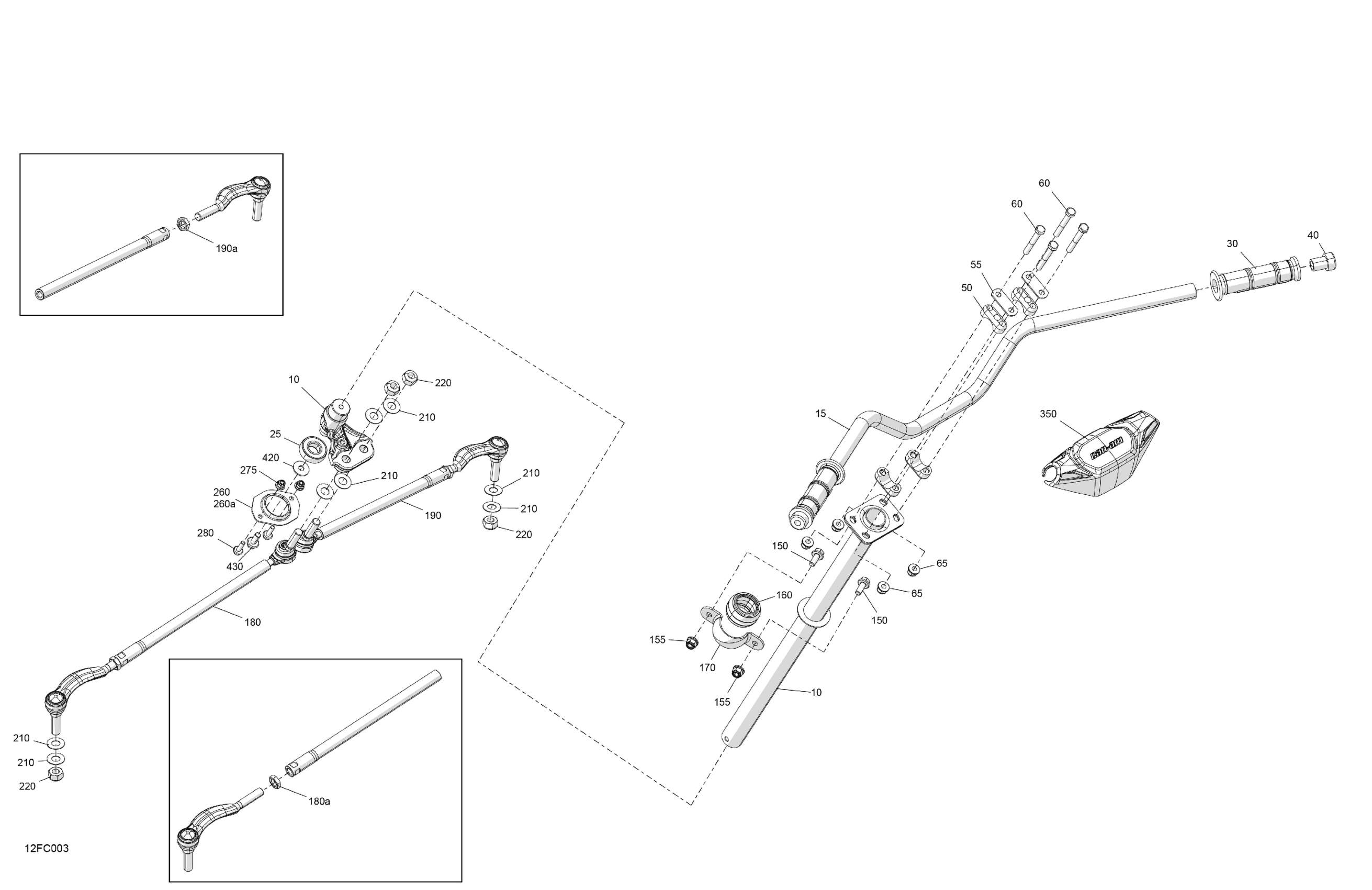

Can-Am Outlander PRO HD5 - CE, 2023 Mechanic - Steering Diagram

#

Description
Price

10

Steering Column

709402740

$110.74

15

Handlebar

709402551

$59.99

25

Ball Bearing

709402499

$16.89

30

Handle Grip

709400493

$14.75

40

End Piece

709400449

$8.29

50

Steering Support

709401799

$20.74

55

Stiffner

709400509

$4.43

60

Hex. Screw M8 X 60

207086046

$2.30

65

Hex. Elastic Flange Nut M8

233281416

$1.25

150

Hex. Flange Screw M8 X 20

207682044

$0.92

155

Hex. Flange Elastic Nut M8

233281414

$1.14

160

Spherical Bushing

709402169

$6.14

170

Upper Column Attachment

709400827

$1.00

180

LH Tie Rod | Includes 180 to 180a

709402826

$59.97

180a

Hex Jam Nut RH M12

715900835

$4.60

190

RH Tie Rod | Includes 190 to 190a

709402827

$59.97

190a

Hex Jam Nut RH M12

715900835

$4.60

210

Hardened Washer

706200281

$2.34

220

Hex. Elastic Hex. Nut M12

250100089

$0.39

260

Lower Bearing Support | Includes 260 to 260a

709402360

$10.98

260a

Lower Bearing Support

709402713

$41.51

275

Hex. Flange Elastic Nut M6

233261466

$1.66

280

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

350

Handlebar Trim

709402570

$23.05

420

Flat Washer 8 mm

234082410

$1.11

430

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39
