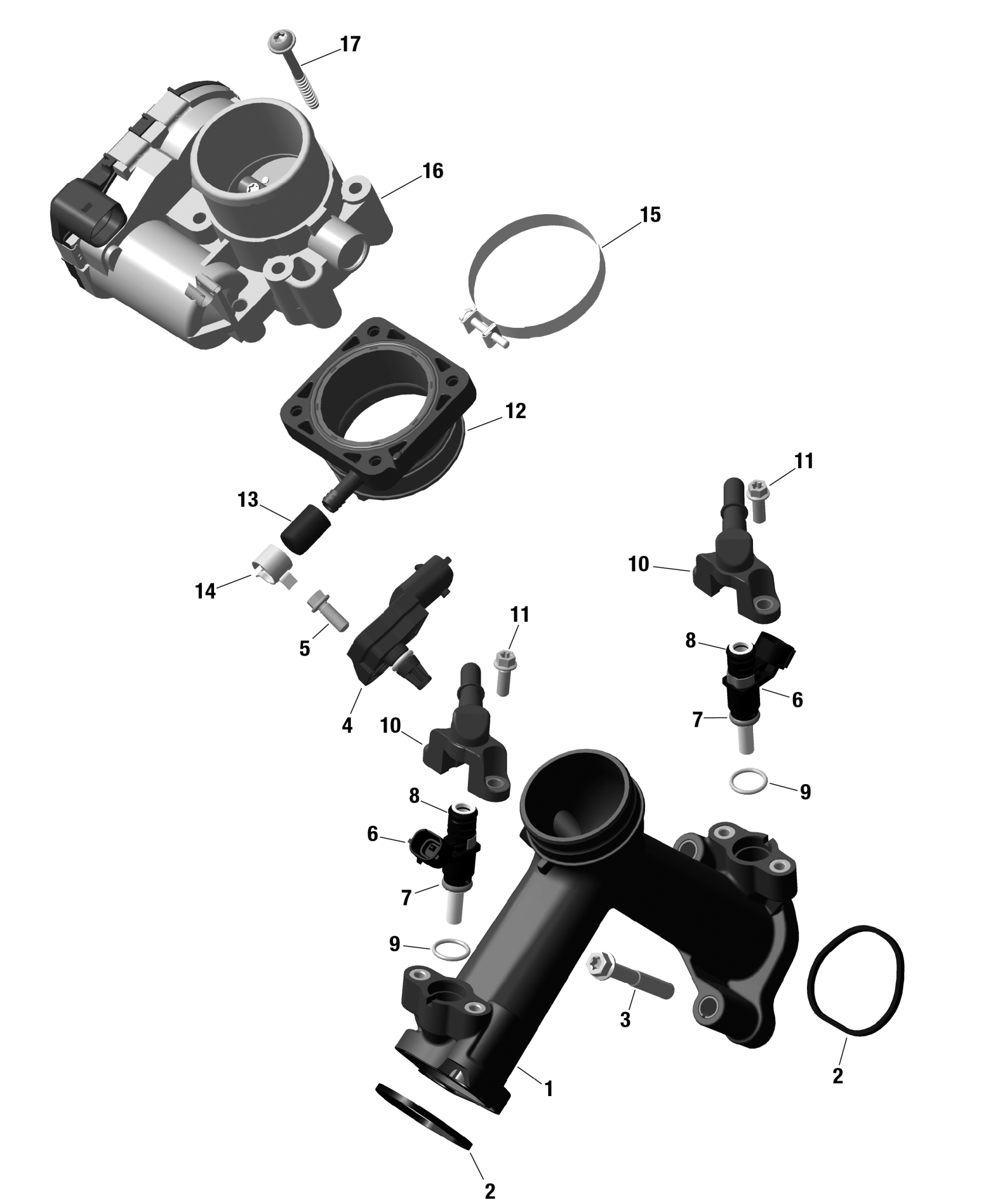

Can-Am Outlander 850 EFI - STD - 2022 Rotax - Air Intake Manifold and Throttle Body - 850 EFI Diagram

Description

Price

Air Intake Manifold

420667581

$139.99

Gasket

420630642

$5.39

Torx Flange Screw M8 X 55

420641213

$7.41

Pressure And Temperature Sensor

707000995

$88.99

Hex. Flange Screw M6 X 12

420440149

$2.11

Injection Valve Ass'y | Includes no. 7-9

420874886

$142.99

O-Ring

420431890

$7.49

O-Ring

420631220

$14.28

O-Ring

420631296

$0.76

Fuel Rail

420874901

$24.49

Torx Flange Screw M6 X 16

420440162

$3.17

Intake Neck

420267046

$62.49

Closure Cap

420201911

$4.86

Spring Type Clamp 14

420853512

$4.55

Clamp

420251480

$14.28

Throttle Body Socket Ass'y

420892596

$466.49

Torx Flange Screw M6 X 50

420441588

$4.44
