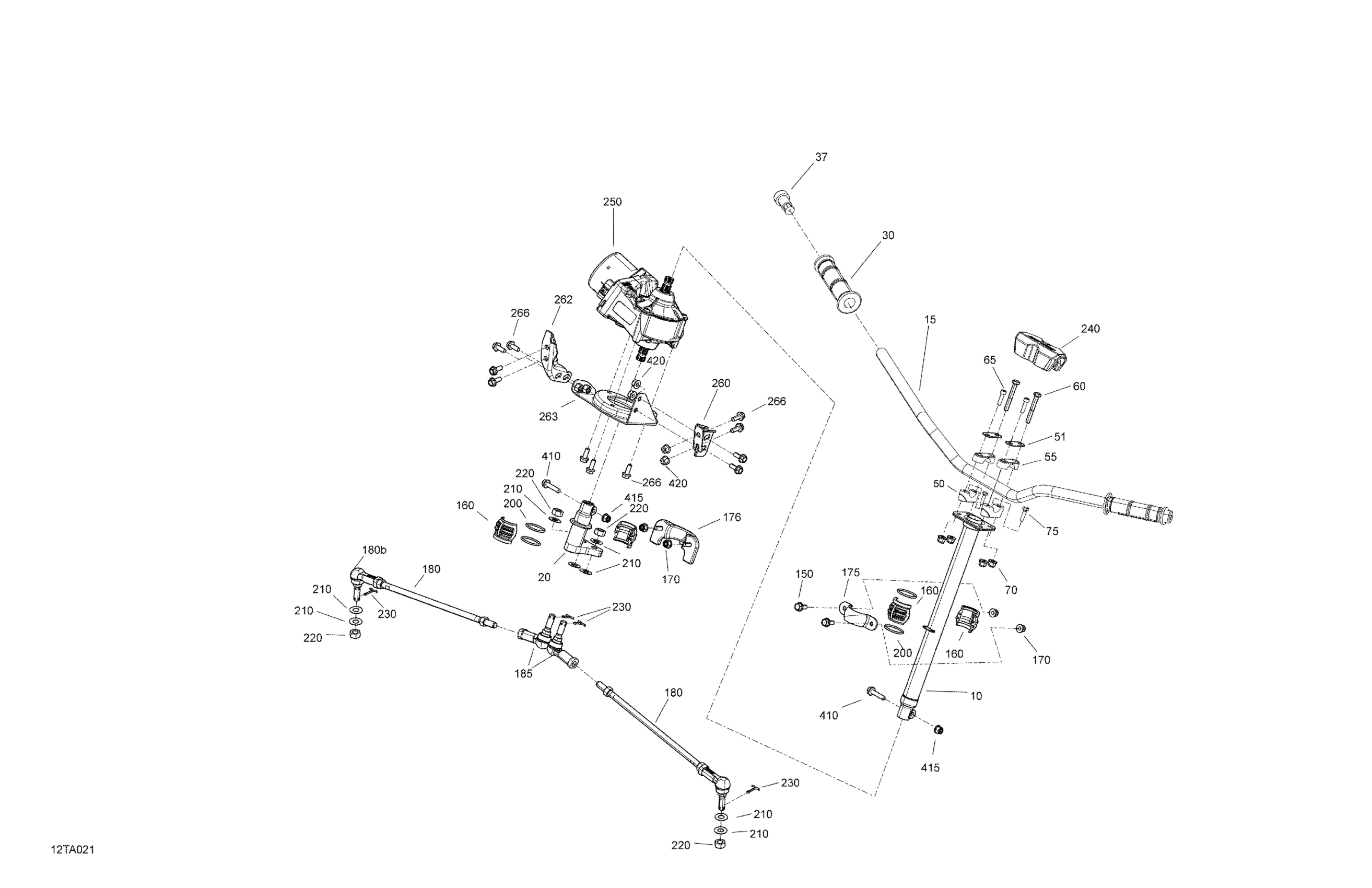

Can-Am Outlander 1000R EFI - XT_XTP_XXC - 2021 Mechanic - Steering Diagram

#

Description
Price

10

Main Tube Kit | Model With DPS

703501108

$74.99

15

Black, Handle Bar

709401240

$69.99

15

Anodized Handlebar | Package XTP, XXC

709402292

$63.49

20

Pitman Arm | Model With DPS Except XMR

703501160

$43.99

30

Handle Grip

709400493

$14.83

37

End Piece

709400449

$8.49

50

Steering Support

709401799

$22.49

50

Lower Mounting Clamp

709402750

$25.99

51

Stiffner

709400509

$4.69

55

Support

709400496

$22.49

60

Hex. Screw M8 X 60

207086046

$2.85

60

Socket Head Screw M8 X 60

205086060

$4.12

65

Socket Screw M8 X 30

205083060

$2.96

70

Hex. Elastic Flange Nut M8

233281416

$1.48

75

Hex. Screw M8 X 30

207183060

$1.58

150

Hex. Flange Screw M8 X 20

207682044

$1.15

155

Hex. Flange Screw M8 X 25

207682534

$2.11

160

Spherical Half Bushing

709400783

$7.65

170

Hex. Flange Elastic Nut M8

233281414

$1.47

175

Upper Column Attachment

709400827

$1.09

176

Column Attachment

709401428

$38.99

180

Tie-Rod Ass`y | Includes 180 to 180b

703501039

$110.99

180b

RH Ball Joint

709402302

$36.99

185

RH Ball Joint

709402302

$36.99

200

O-Ring

293300068

$7.65

210

Hardened Washer

706200281

$2.85

220

Nut M12

250100099

$2.09

230

Cotter Pin

211400013

$0.37

240

Steering Cover | XTP

709402328

$90.99

250

Power Steering Ass'y | Model With DPS

709403187

$1,218.99

260

LH Power Steering Bracket | Model With DPS

709402184

$18.49

262

RH Bracket | Model With DPS

709402185

$28.99

263

Power Steering Support | Model With DPS

709401743

$19.99

266

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

410

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.72

415

Hex. Elastic Flange Nut M8

233281416

$1.48

420

Hex. Flange Nut

233081436

$2.00
