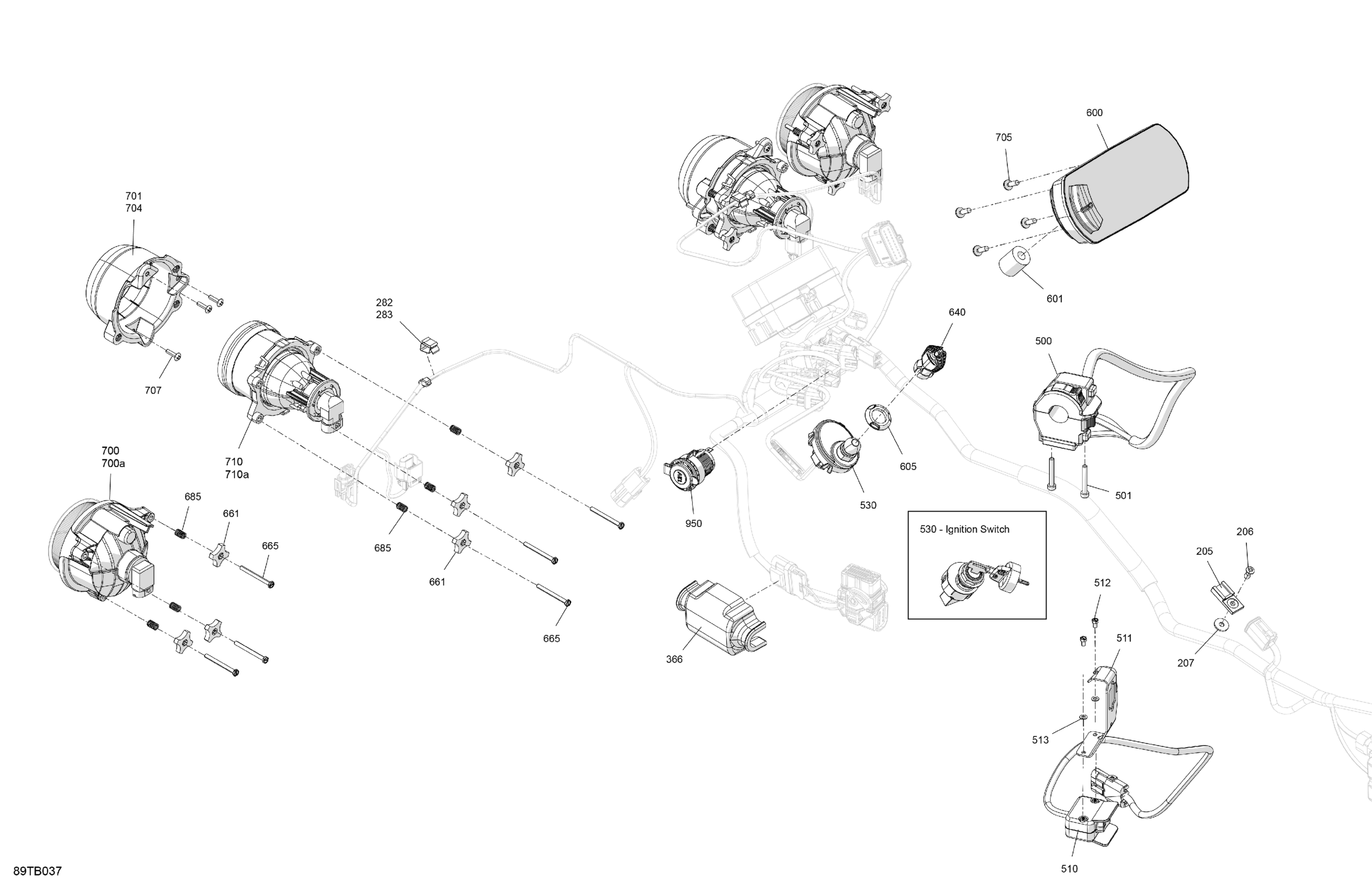

Can-Am Outlander MAX 850 EFI - XT - 2022 Electric - Front Section Diagram

Description

Price

205

Clip

270000141

$9.57

206

Pop Rivet 3/16 X ,551

293150301

$0.73

207

Washer | DS 650 X

391301600

$0.46

282

Clip

710010204

$1.40

283

Clip

710010204

$1.40

366

Soft Protection Sleeve

710007255

$2.51

500

Switch Handle

710006134

$66.39

501

Socket Head Screw M5 X 35

205053588

$1.79

510

Winch Switch

710007327

$11.33

511

Black Support | Packages - XT, XTP, LTD, XMR Except Europe

710004670

$8.84

512

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.61

513

Flat Washer 4 mm

234040600

$0.52

530

Terminal Dess One-Wire | Except Model Europe

515178840

$77.58

530

Ignition Switch | Except Model Pro, T3

710007864

$79.82

600

Multifunction Gauge Compact Mono

710008108

$364.90

601

Ferrite

415130224

$14.90

605

Specialized Nut

278004274

$3.12

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$53.70

661

Handle

572106600

$9.03

665

Hex. Screw K40 X 45

250000718

$2.00

685

Spring

517168600

$6.70

700

Low Beam | Includes 54 to 55

710006177

$108.18

700a

Bulb 12V 55W

715900141

$38.78

701

RH High Front Housing

710002291

$25.34

704

LH High Front Housing

710002292

$20.12

705

Torx Screw K50 X 16

250000720

$1.60

707

Phillips Screw K40 X 16

250000723

$0.93

710

High Beam Ass'y | Includes 11 to 12

710002525

$108.18

710a

Halogen Bulb

415129249

$38.78

950

DC Outlet

710001248

$35.79
