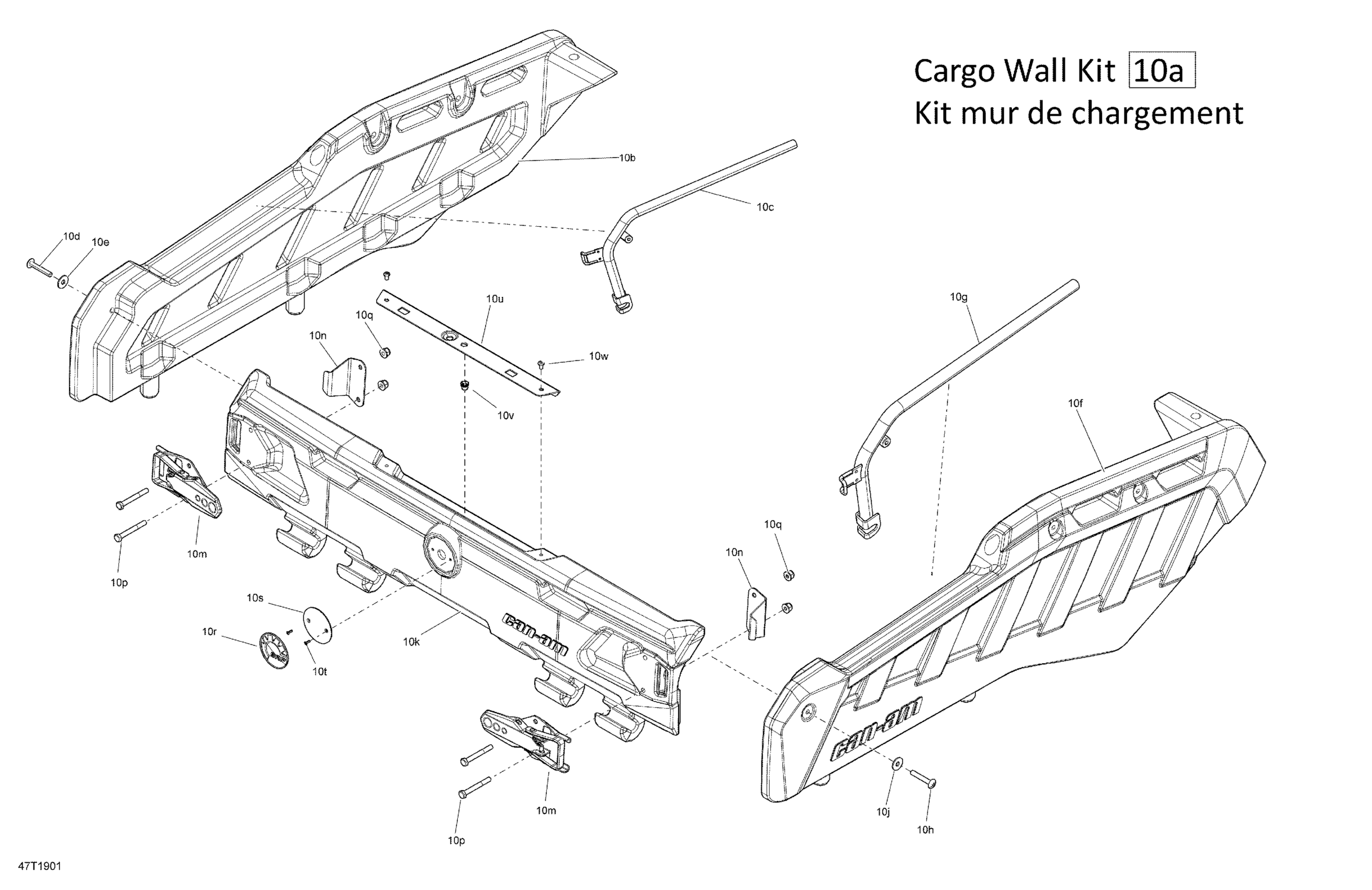

Can-Am Outlander MAX 6X6 - 1000 EFI - T3, 2019 Options 6X6 - Cargo Wall Kit Diagram

Description

Price

10a

Cargo Wall Kit | Includes 10a to 10w

715005153

$1,274.58

10b

Black, LH Side Panel

708303727

$290.74

10c

LH Side Railing

708302800

$74.58

10d

Torx Truss Screw M8 X 50

250000761

$6.18

10e

Stainless Steel Flat Washer

234082670

$1.74

10f

Black, RH Side Panel

708303728

$290.74

10g

RH Side Railing

708302799

$74.58

10h

Torx Truss Screw M8 X 50

250000761

$6.18

10j

Stainless Steel Flat Washer

234082670

$1.74

10k

Black, Tailgate

708302080

$483.05

10m

Latch Ass'y

511001014

$36.12

10n

Latch Fixing Plate

708301005

$15.35

10p

Hex. Screw M8 x 65

207086544

$1.42

10q

Hex. Flange Elastic Nut M8

233281414

$1.14

10r

BRP Logo 68mm

516008739

$12.87

10s

Logo Base

708301177

$8.52

10t

Countersunk Head Screw K30 X 10

250000698

$1.85

10u

Lock List

708301184

$16.89

10v

Clinch Nut M6 Hexsert

605636003

$4.12

10w

Socket Screw Button Head M6 X 10 | DS 650

250000436

$1.74
