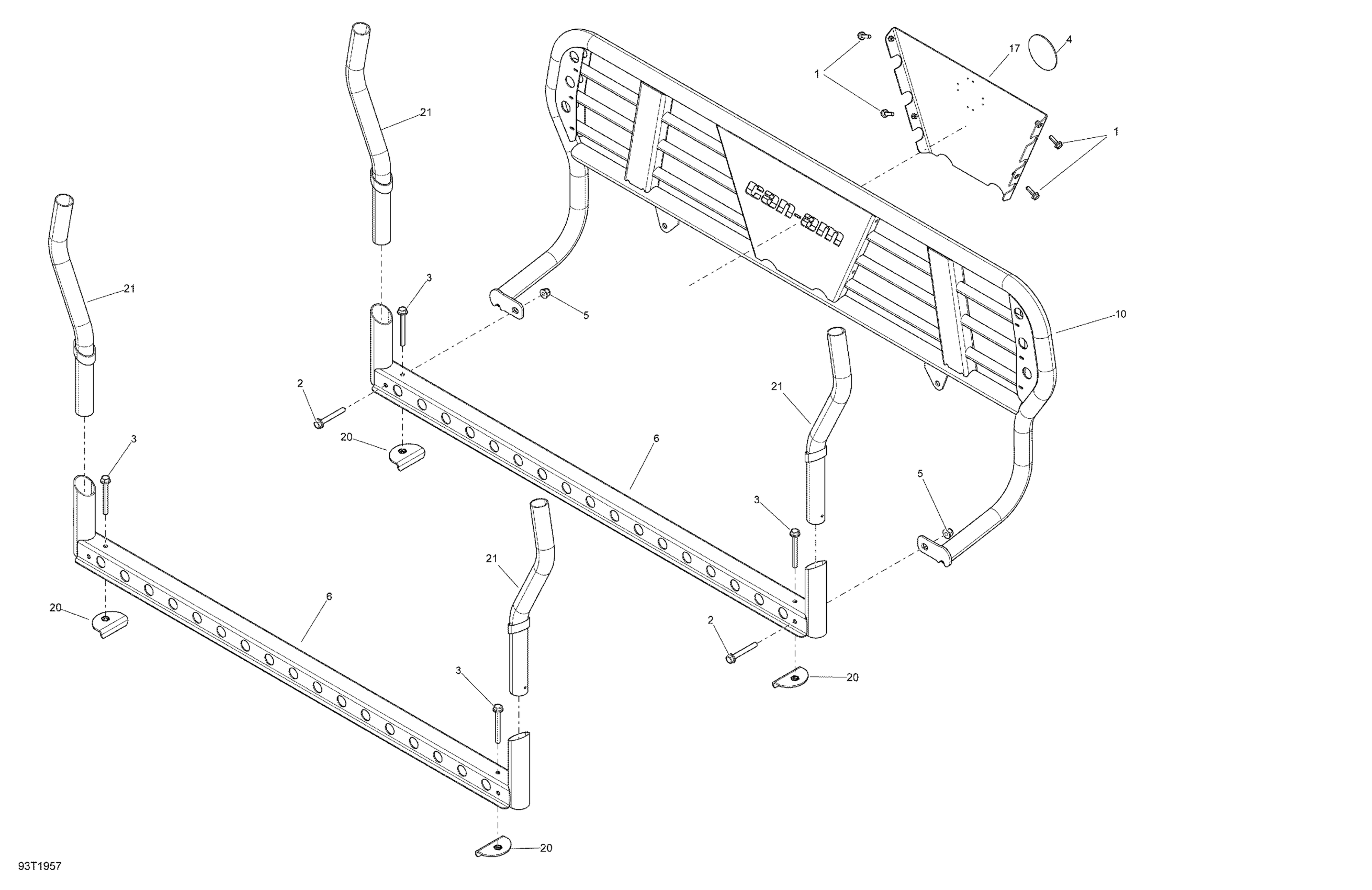

Can-Am Outlander MAX 6X6 - 1000 EFI - T3, 2019 Forestry Log Bar Diagram

#

Description

Price

1

Hex. Flange Screw M6 x 20

207662056

$0.96

2

Hex. Flange Screw M8 x 60

207686044

$2.94

3

Hex. Flange Screw M8 X 70

207687044

$7.01

4

BRP Logo 68mm

516008739

$14.78

5

Hex. Flange Elastic Nut M8

233281414

$1.31

6

FRAME TUBE PAINTED - Call your local BRP dealership

708300974

Unavailable

10

Front Wall Assembly

708301554

Unavailable

17

COVER PLATE - Call your local BRP dealership

708301072

Unavailable

20

FASTENING PLATE - Call your local BRP dealership

708301094

Unavailable

21

LOG BAR PAINTED - Call your local BRP dealership

708301277

Unavailable
