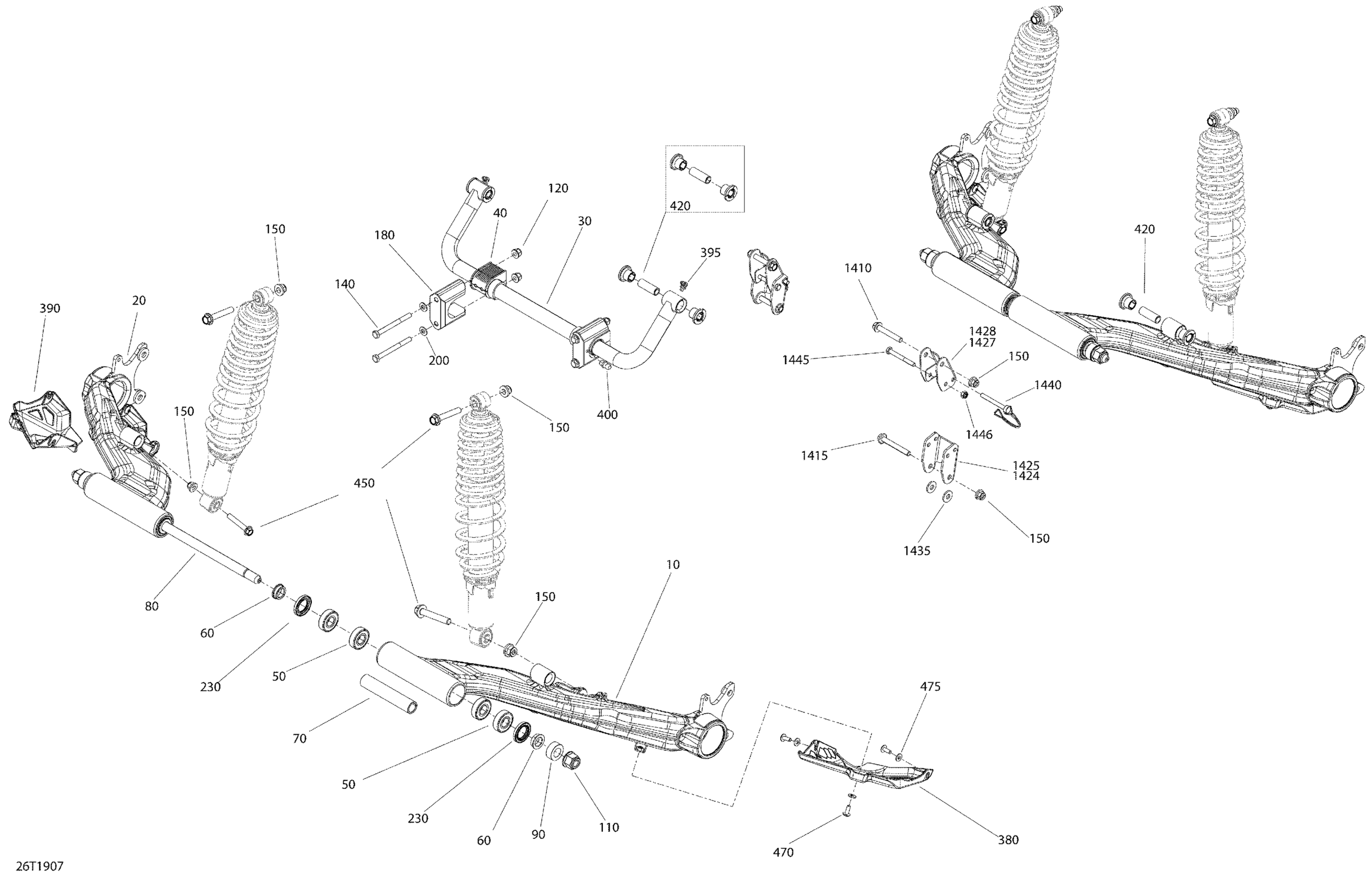

Can-Am Outlander MAX 6X6 - 1000 EFI - T3, 2019 Rear Suspension 6X6 Diagram

#

Description
Price

10

LH Swing Arm

706003041

$290.74

20

RH Swing Arm

706003042

$290.74

30

Sway Bar

706003050

$124.58

40

Stabilizer Bar Bushing

706004641

$9.22

50

Ball Bearing

293350145

$12.91

60

Spacer

706001282

$10.98

70

Spacer

706002259

$27.66

80

Axial Pivot M16

706001664

$69.20

90

Flat Washer M17

250200112

$6.34

110

Hex. Flange Elastic Nut M16

233211466

$1.53

120

Hex. Flange Elastic Nut M8

233281434

$1.74

140

Hex. Screw M8 X 85

250001035

$1.46

150

Hex. Flange Elastic Nut M10

233201436

$1.74

180

Bushing Holder

706001099

$31.51

200

Flat Washer M8

234081430

$1.74

230

Seal

293200144

$4.60

380

LH Protector | All Except Packages XXC & Hunting Edition

706003052

$15.22

390

RH Protector | All Except Packages XXC & Hunting Edition

706003053

$15.22

395

Grease Fitting 90°

293550056

$1.37

400

Grease Fitting

250000315

$4.82

420

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

450

Hex. Flange Screw M10 X 6

207606046

$3.38

470

Tork Screw M6 X 16

250000534

$1.74

475

Flat Washer

250200039

$0.72

1410

Hex. Flange Screw M10 X 65

207606536

$3.61

1415

Hex. Screw M10 X 70

250000520

$7.31

1424

RH Linkage Outer Part

706001765

$26.89

1425

LH Linkage Outer Part

706001600

$26.89

1427

RH Linkage Inner Part

706001766

$14.48

1428

Linkage Inner Part

706001601

$14.48

1435

Washer

505073634

$2.31

1440

Pin Onto The Shaft

706001602

$14.02

1445

Hex. Screw M8 x 65

207086544

$1.42

1446

Hex. Elastic Stop Nut M8

232581414

$0.47
