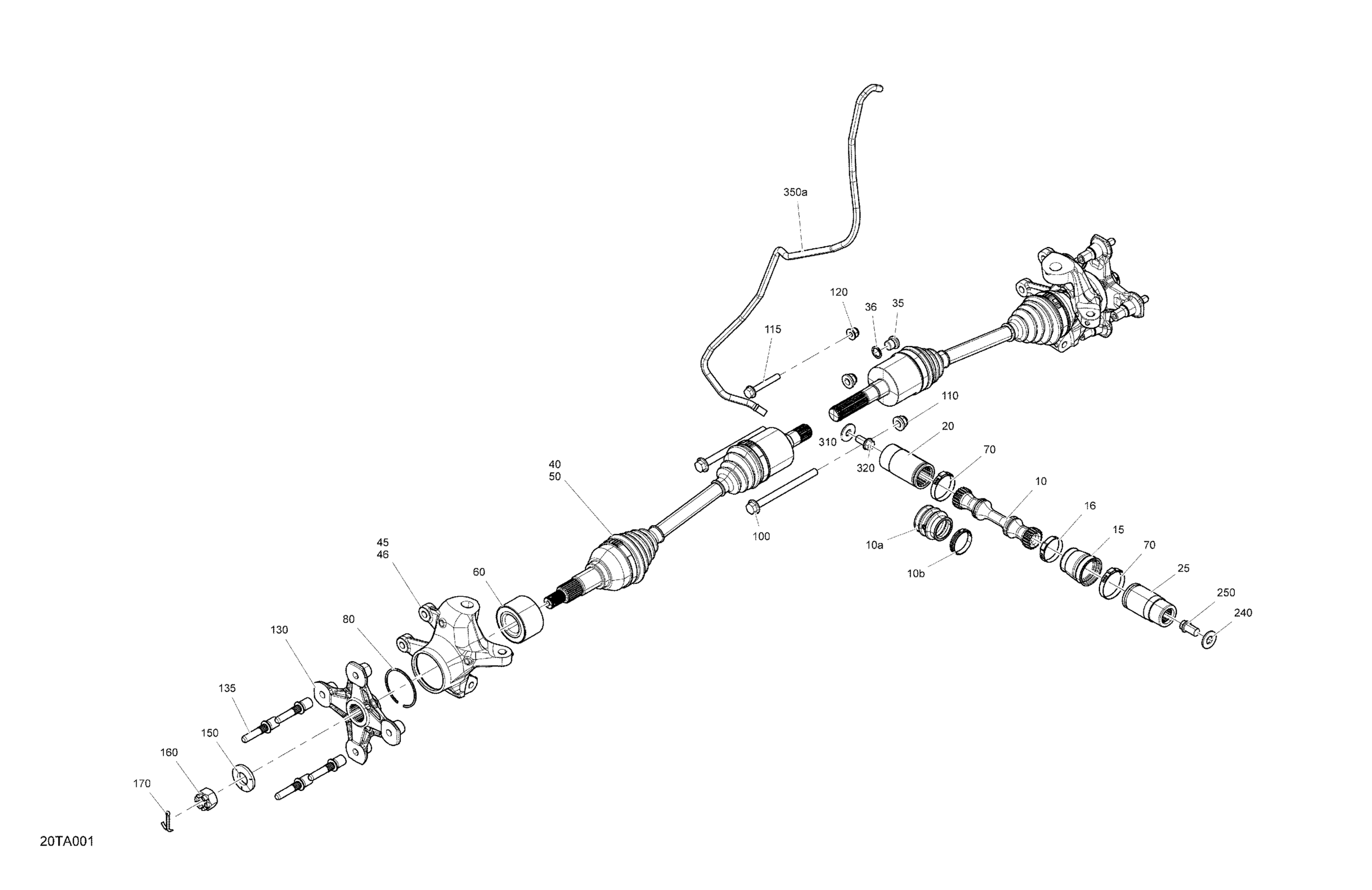

Can-Am Outlander MAX 650 EFI - XT - CE, 2021 Drive - Front Section - Common Parts Diagram

Propeller Shaft | Includes 1 to 2

705400913

$211.99

Rubber Boot

715900118

$14.30

Oetiker Gear Clamp 36.1MM

509000045

$8.29

Rubber Boot

705401093

$5.00

Oetiker Gear Clamp

293650199

$9.69

Coupling Sleeve

705401969

$28.49

Front Bushing Shaft Kit | 4X4

703500678

$114.99

Wear Ring | 4X4

705400036

$26.49

Fill Level Plug | 4X4

705500504

$10.01

Copper Washer | 4X4

705500506

$0.45

RH CV Joint | Includes 40 to 40j

705402236

$243.99

LH Knuckle

705403307

$179.99

RH Knuckle

705403308

$179.99

LH CV Joint

705402235

$243.99

Ball Bearing

293350150

$52.99

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

Circlip

293370019

$4.68

Hex. Flange Screw M10 X 125

230602546

$7.41

Hex. Flange Elastic Nut M10

233201436

$2.11

Hex. Flange Screw M8 X 55

207685544

$5.39

Hex. Flange Elastic Nut M8

233281414

$1.47

Wheel Hub Ass'y

705501716

$105.99

Wheel Hub | Built Dec 21 2020 And Up

705503050

$104.99

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

Conical Spring Washer M18

250200171

$7.65

Hex. Flange Castellated Nut M18

232291413

$7.98

Cotter Pin

250400071

$2.11

Flat Washer M12

250200102

$2.11

Hex Flange Screw M12 X 20

250001042

$1.90

Flat Washer M10 | 4X4

250200014

$1.49

Hex Flange Screw M10 X 20 S.Grip

250001046

$4.44

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49
