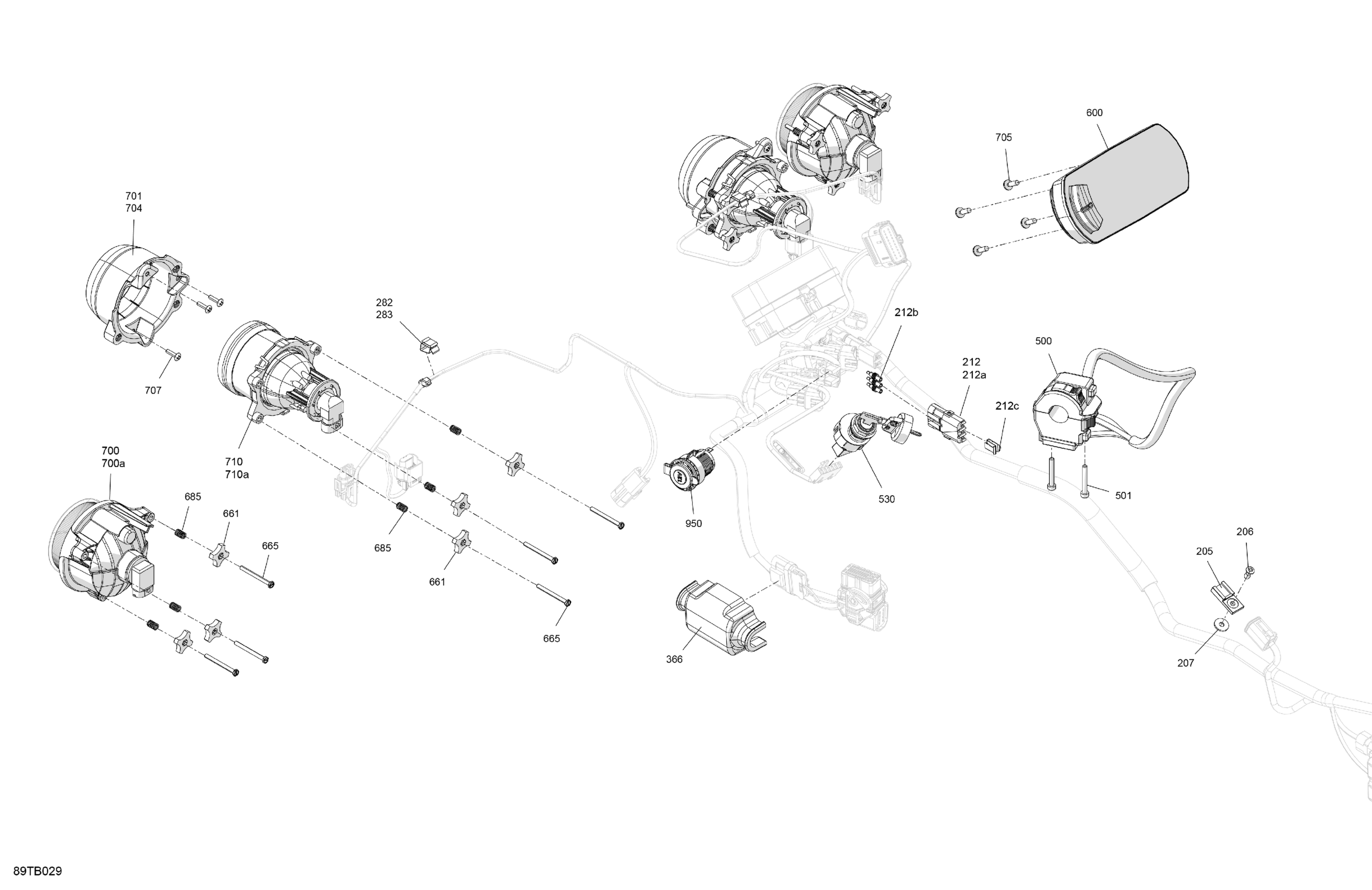

Can-Am Outlander MAX 650 EFI - DPS - 2022 Electric - Front Section Diagram

Description

Price

205

Clip

270000141

$11.49

206

Pop Rivet 3/16 X ,551

293150301

$0.77

207

Washer | DS 650 X

391301600

$0.48

212

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.71

212a

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

212b

Wire Seal

278000216

$3.19

212c

Clip

710000992

$4.29

282

Clip

710010204

$1.67

283

Clip

710010204

$1.67

366

Soft Protection Sleeve

710007255

$2.54

500

Multifunction Switch

710008837

$80.49

501

Socket Head Screw M5 X 35

205053588

$1.90

530

Ignition Switch | Except Model Pro, T3

710007864

$85.99

600

Multifunction Gauge Compact Mono

710008108

$409.99

661

Handle

572106600

$10.33

665

Hex. Screw K40 X 45

250000718

$2.11

685

Spring

517168600

$7.39

700

Low Beam | Includes 54 to 55

710006177

$119.99

700a

Bulb 12V 55W

715900141

$41.49

701

RH High Front Housing

710002291

$28.99

704

LH High Front Housing

710002292

$22.49

705

Torx Screw K50 X 16

250000720

$1.69

707

Phillips Screw K40 X 16

250000723

$0.98

710

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

710a

Halogen Bulb

415129249

$41.49

950

DC Outlet

710001248

$37.99
