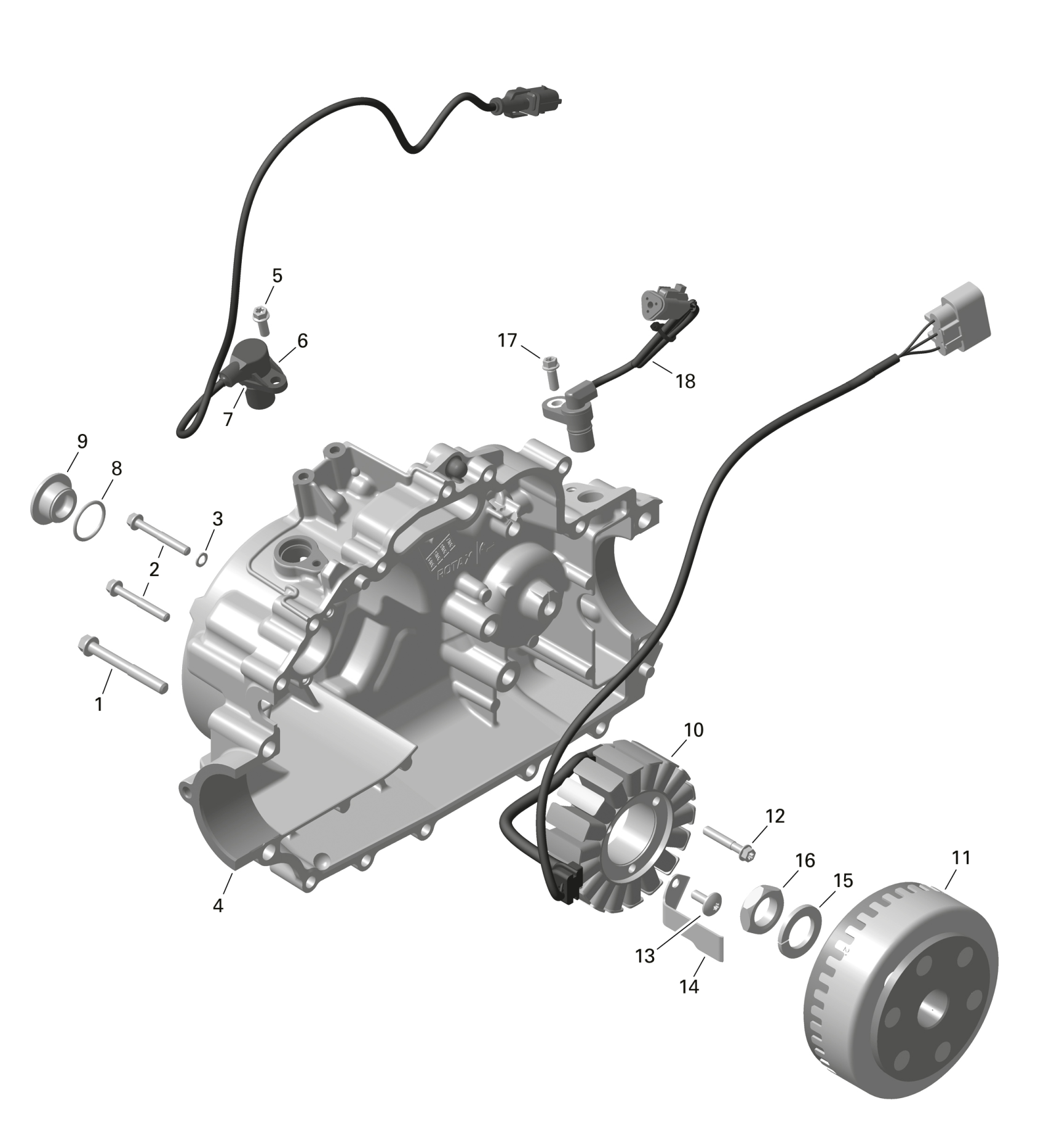

Can-Am Outlander 450 EFI - DPS - 2023 ROTAX - Magneto and Electric Starter Diagram

#

Description
Price

1

Torx Flange Screw M8 X 65

420440402

$7.41

2

Torx Flange Screw M6 X 45

420440324

$0.98

3

Seal Washer

420230415

$1.79

5

Torx Flange Screw M6 X 16

420440162

$3.17

6

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

7

O-Ring

420431580

$14.83

8

O-Ring

420430782

$5.39

9

Plug Screw M24X 1.5

420241633

$7.41

10

Stator Plate, 480W

420685921

$297.99

11

Flywheel 480W

420686275

$451.49

12

Torx Flange Screw M6 X 35

420440274

$1.01

13

Torx Screw M6 X 16

420241529

$2.11

14

Inner Cable Cover

420251270

$12.12

15

Lock Washer, 22 mm

420945759

$1.90

16

Hex. Nut, M22 X 1.5

420842239

$17.53

17

Torx Flange Screw M6 X 16

420440162

$3.17

18

Camshft Position Sensor Ass'y

420265727

$109.99
