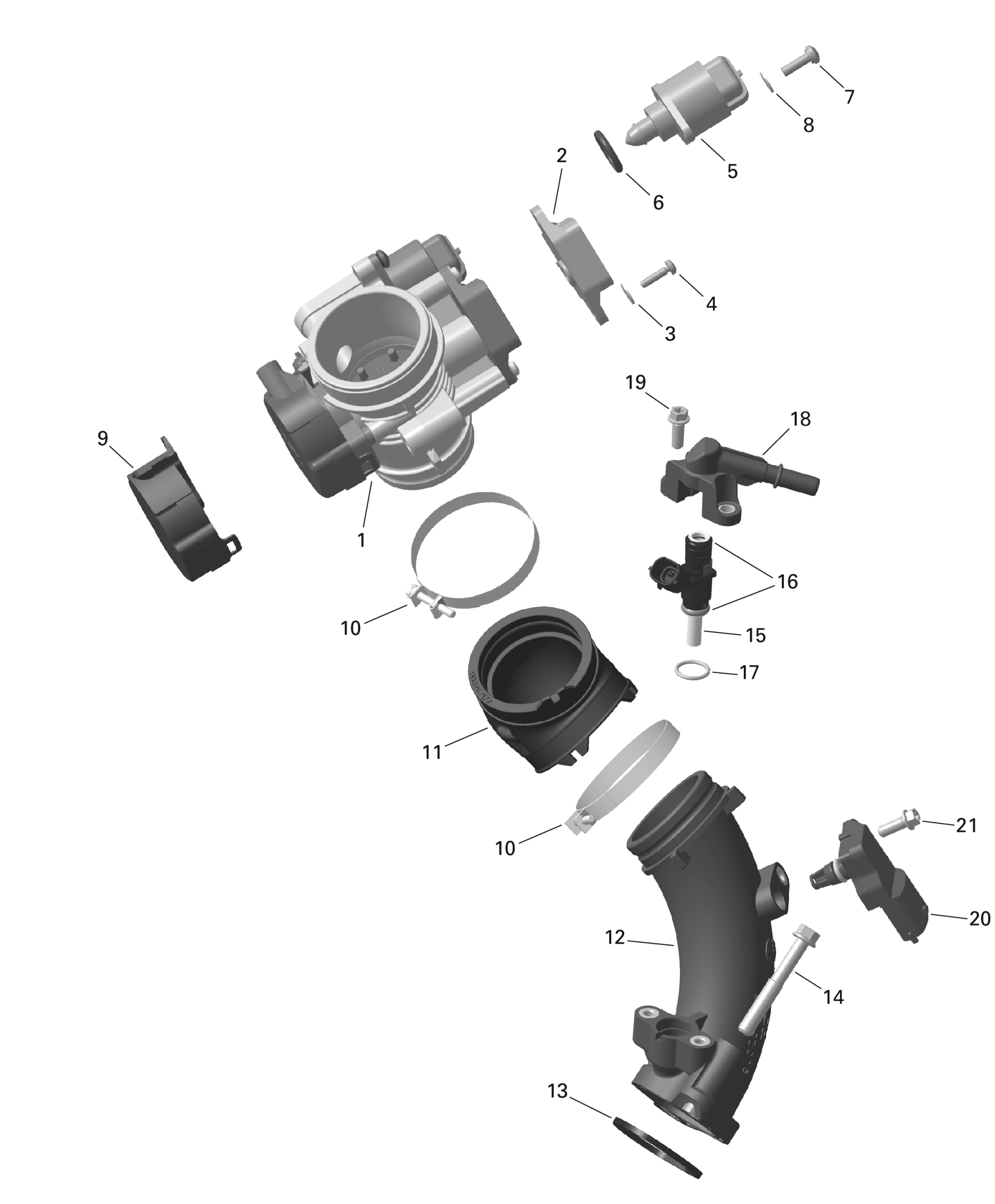

Can-Am Outlander 450 EFI - STD - 2023 ROTAX - Air Intake Manifold And Throttle Body Diagram

Description

Price

Throttle Body Ass'y | Includes 8 to 16

420685326

$659.67

Position Sensor

420866120

$77.97

Flat Washer 4 mm, Stainless

234042600

$0.92

Phillips Screw M4 X 16

208641660

$0.74

Idle Air Control Valve

420665941

$147.52

O-Ring

420631780

$3.61

Snap Ring

420845710

$3.38

Binding Head Screw M5 X 16

420440911

$11.48

Cover Kit

420281540

$19.37

Clamp

420251480

$13.18

Intake Neck

420267172

$17.13

Intake Adaptor

420267527

$41.76

Gasket

420630642

$5.06

Torx Flange Screw M8 X 55

420641213

$6.11

Injection Valve Ass'y | Includes no. 7-9

420874886

Unavailable

15a

O-Ring

420431890

$4.95

15b

O-Ring

420631220

$11.48

O-Ring

420631220

$11.48

O-Ring

420631296

$0.72

Fuel Rail

420874905

$26.09

Torx Flange Screw M6 X 16

420440164

$1.67

Pressure And Temperature Sensor

707000995

$70.82

Torx Flange Screw M6 X 16

420440164

$1.67
