02- Engine - Exhaust

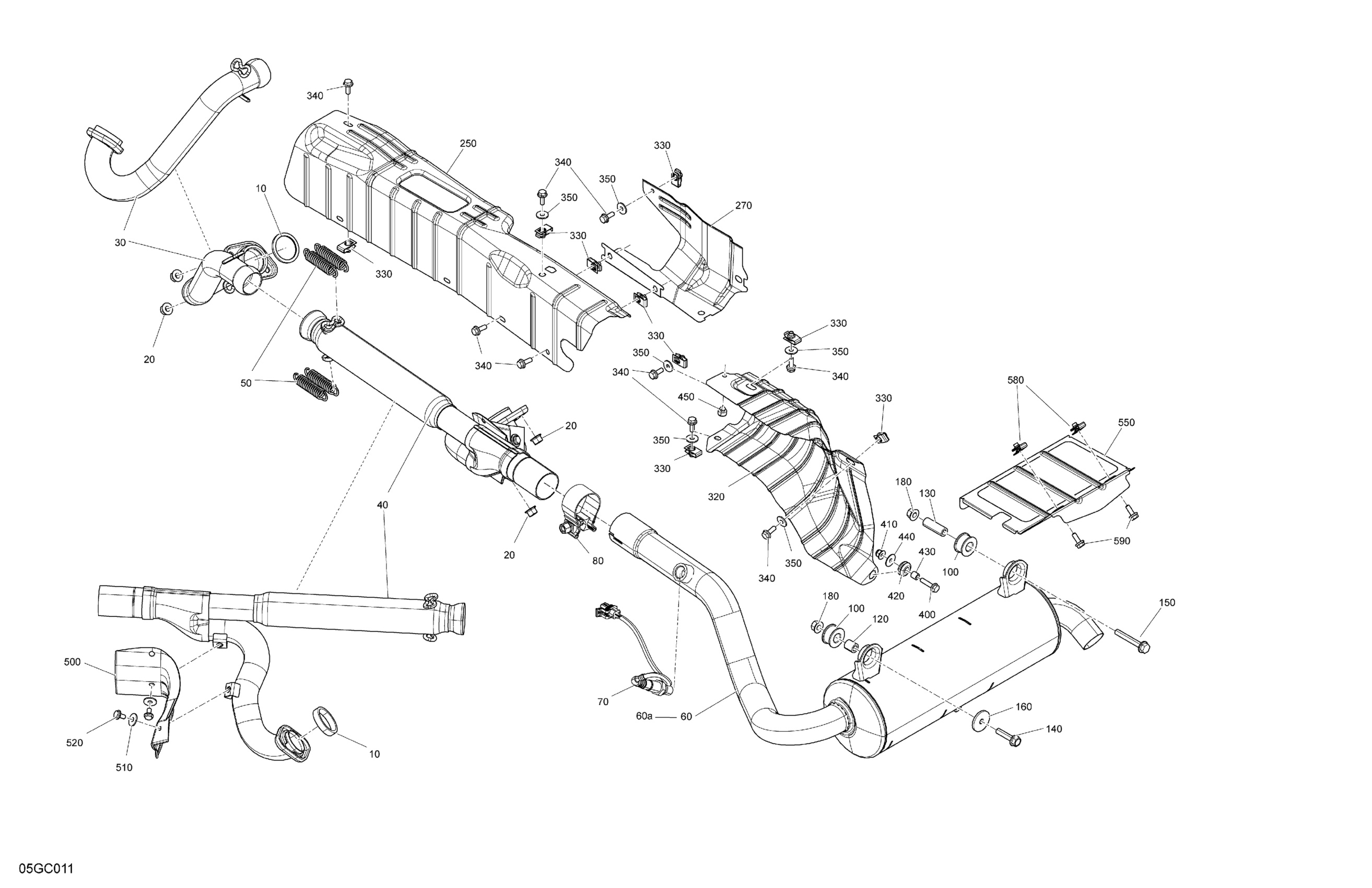

Can-Am 006 - Outlander 570 EFI - XT - (2YPA-2YPB) North America, 2023 02- Engine - Exhaust Diagram
#
10
Gasket
707600317
Unavailable
20
Hex. Flange Nut
233081436
Unavailable
30
Front Head Pipe
707600764
Unavailable
40
2-Into-1 Exhaust System
707601396
Unavailable
50
Spring
415107100
Unavailable
60
Exhaust Muffler
707603258
Unavailable
60a
Muffler
707603262
Unavailable
70
Oxygen Sensor
707600872
Unavailable
80
Exhaust Pipe Clamp
293650228
Unavailable
100
Vibration Damper
707603323
Unavailable
120
Spacer Bushing
293900116
Unavailable
130
Bushing
293900115
Unavailable
140
Hex. Flange Screw M8 X 35
207683544
Unavailable
150
Hex. Flange Screw M8 X 55
207685544
Unavailable
160
Flat Washer M8
250200158
Unavailable
180
Hex. Flange Nut
233081436
Unavailable
250
Heat Shield
707603724
Unavailable
270
Protector
707601484
Unavailable
320
Protector
707601425
Unavailable
330
Panel Nut M6 X 1.0
250100198
Unavailable
340
Hex. Flange Screw M6 X 16
207661644
Unavailable
350
Flat Washer 6 mm
234062410
Unavailable
400
Hex. Flange Screw M6 X 25
207662544
Unavailable
410
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
420
Grommet
709000582
Unavailable
430
Bushing
293900105
Unavailable
440
Flat Washer
224060201
Unavailable
450
Rubber Bumper
293830005
Unavailable
500
Pipe Protector
707600932
Unavailable
510
Flat Washer
250200082
Unavailable
520
Hex. Flange Screw M6 X 12 S.Grip
250001090
Unavailable
550
Protector
707601635
Unavailable
580
Panel Nut M6 X 1.0
250100198
Unavailable
590
Hex. Flange Screw M6 X 16
207661644
Unavailable
