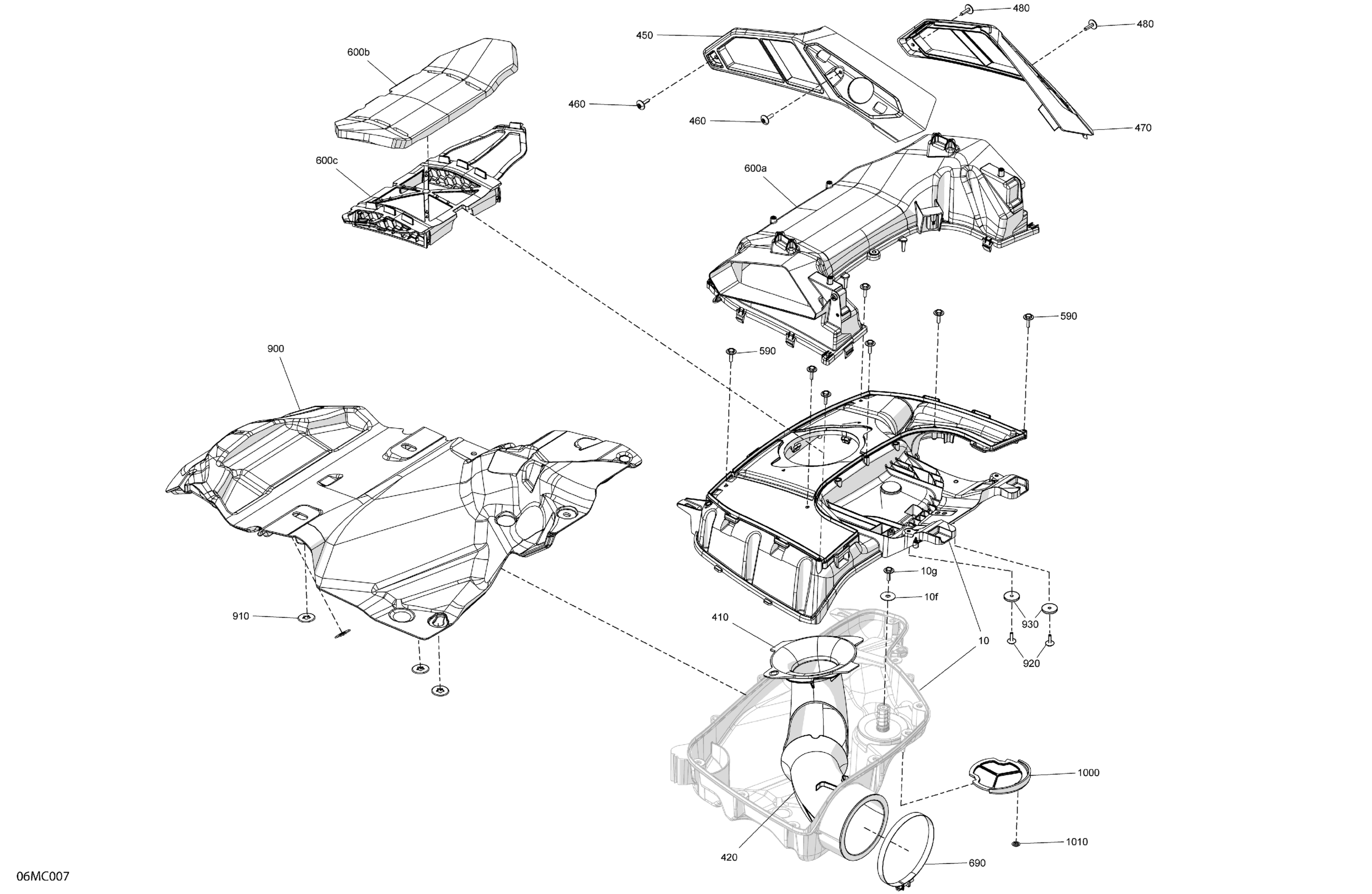

Ski-Doo 006 - MXZ 850 E-TEC - BLIZZARD - North America, 2023 02- Engine - Air Intake Diagram

Description

Price

Secondary Intake Silencer Ass'y | Includes 10 to 10g

508001363

$174.99

10f

Flat Washer

224060201

$1.26

10g

Screw M4 X 16

250000725

$3.49

410

Resonator Hose IN

508001129

$35.99

420

Resonator Hose OUT

508001130

$35.99

450

LH Air Filter

508001136

$33.99

460

Screw M4 X 16

250000889

$3.09

470

RH Air Filter

508001137

$42.49

480

Screw M4 X 16

250000889

$3.09

590

Screw M4 X 16

250000725

$3.49

600a

Upper Intake Silencer Duct

508001172

$46.49

600b

Acoustic Insulation

508001224

$15.27

600c

Foam Support

508001222

$36.99

690

Gemi Clamp

293650247

$7.65

900

Acoustic Panel

508001198

$44.49

910

Push Nut

508000853

$2.09

920

Screw M4 X 16

250000725

$3.49

930

Thermal Insulation

508001264

$1.99

1000

Pop Off Filter

508000815

$6.99

1010

Push Nut

250001189

$1.37
