Description

Price

300

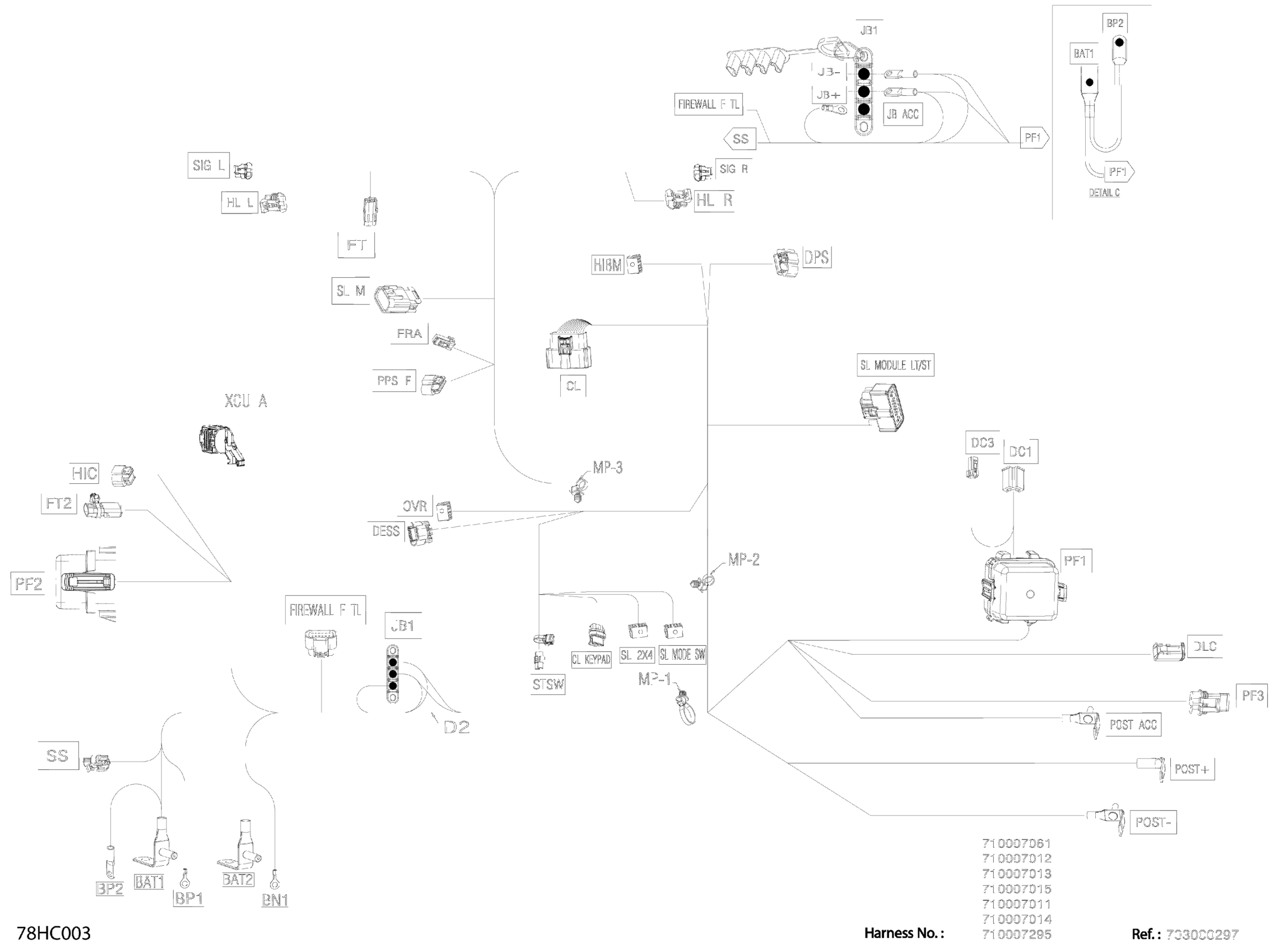

Main Wiring Harness

710009158

$827.58

BN1

Open Barrel Terminal

278001392

$4.00

BP1

Shrink Tubing, 6 mm

515177246

$0.99

BP1

Open Barrel

278000992

$1.79

CL

Female Housing 20 Circuits

278002858

$20.12

CL

Sealing Cap

278002860

$1.42

CL

Female Terminal 22 AWG

515178349

$1.76

CL

Female Terminal

515178018

$0.78

CL KEYPAD

Housing

710001161

$9.15

CL KEYPAD

Lock

710001162

$3.18

CL KEYPAD

Wire Seal

710001163

$5.10

CL KEYPAD

Female Terminal

710001164

$5.92

D2

Diode

409012700

$10.51

DC1

Housing

710005373

$3.93

DC1

Terminal

710005077

$1.49

DC3

Female Housing, 2 Circuits

515175658

$14.90

DC3

Female Terminal

515175231

$4.00

DC3 CAP

Male Housing, 2 Circuits

710000667

$7.25

DESS

Female Delphi Connector 5 Cavities

710007151

$13.62

DESS

Lock

710007243

$3.93

DESS

Wire Seal

710001163

$5.10

DESS

Female Terminal

710001164

$5.92

DLC

Female Housing 6 Circuits

710002706

$16.22

DLC

Lock

710002705

$3.61

DLC

Female Terminal

710005439

$4.15

DLC

Female Terminal

710005438

$3.88

DPS

Female Housing

710004989

$7.00

DPS

Lock | PACKARD 15430900

710005098

$1.57

DPS

Lock

710001222

$1.68

DPS

Plug

710002075

$2.47

DPS

Wire Seal

278002186

$4.51

DPS

Seal

710003153

$0.91

DPS

Female Terminal

278002187

$5.04

DPS

Terminal

710001873

$2.19

FIREWALL F TL

Female Housing, 12 Circuits

710001930

$13.52

FIREWALL F TL

Lock

710001222

$1.68

FIREWALL F TL

Lock

710006333

$5.52

FIREWALL F TL

Cap

710001225

$7.27

FIREWALL F TL

Seal

710001233

$2.55

FIREWALL F TL

Terminal

710001229

$2.93

FL-1

Fuse Wire 31-40AMP

715002537

$20.12

FL-2

Fuse Wire 31-40AMP

715002537

$20.12

FP

Male Housing, 4 Circuits

278002185

$5.86

FP

Lock

710001222

$1.68

FP

Lock

710006214

$0.73

FP

Wire Seal

278002186

$4.51

FP

Seal

710003153

$0.91

FP

Female Terminal

278002187

$5.04

FP

Terminal

710001873

$2.19

FRA

Female Housing, 2 Circuits

515175658

$14.90

FRA

Female Terminal

710003896

$1.70

FT

Clip

710000992

$3.88

FT

Female Housing, 2 Circuits

278000217

$7.59

FT

Wire Seal

278000218

$3.48

FT

Male Terminal

409004300

$5.30

FT2

Female Housing, 2 Circuits

278000217

$7.59

FT2

Wire Seal

278000218

$3.48

FT2

Male Terminal

409004300

$5.30

G FL

Female Housing, 2 Circuits

710005880

$5.04

G FL

Wire Seal

710001118

$1.19

G FL

Female Terminal

710005876

$1.31

G FR

Female Housing, 2 Circuits

710005880

$5.04

G FR

Wire Seal

710001118

$1.19

G FR

Female Terminal

710005876

$1.31

HIBM

Housing

710002000

$5.86

HIBM

Terminal

710003047

$3.12

HIBM

Female Terminal

710005491

$1.57

HIC

Housing

710001928

$14.52

HIC

Lock

710001222

$1.68

HIC

Lock

710006181

$3.12

HIC

Cap

710001225

$7.27

HIC

Seal

710001233

$2.55

HIC

Seal Wire

710001332

$2.72

HIC

Terminal

710001229

$2.93

HIC

Terminal

710001228

$2.72

HL L

Housing

710000645

$14.34

HL L

Lock

710000642

$3.43

HL L

Seal

278001482

$2.55

HL L

Female Terminal

710001134

$5.85

HL R

Housing

710000645

$14.34

HL R

Lock

710000642

$3.43

HL R

Seal

278001482

$2.55

HL R

Female Terminal

710001134

$5.85

JB ACC

Shrink Tubing, 6 mm

515177246

$0.99

JB ACC

Open Barrel

278000992

$1.79

JB-1

Junction Block Cover

710006610

$19.37

JB-1

Elastic Stop Nut M6, Brass

232561200

$3.51

OVR

Housing

710002000

$5.86

OVR

Female Terminal

710005491

$1.57

PF1

Fuse Cover

278003553

$3.79

PF1

Fuse Base Ass'y

278003448

$26.62

PF1

Wire Seal

278000216

$2.55

PF1

Seal

293300198

$1.78

PF1

Phillips Screw K40 X 16

250000723

$0.81

PF1

Wire Seal

278000218

$3.48

PF1

Wire Seal

710000048

$5.10

PF1

Wire Seal

278001065

$5.85

PF1

Female Terminal

515177177

$4.96

PF1

Female Terminal

710000918

$5.10

PF1

Female Terminal

278002578

$0.86

PF1-F22

Fuse, 20 Amperes

409003900

$3.12

PF1 LABEL W SAS

Fuses Decal

710006407

$9.84

PF1 SP1

Little Fuse, 10 Amperes

710000744

$7.24

PF1-F11

Little Fuse, 20 Amperes

710000746

$6.77

PF1-F12

Little Fuse, 20 Amperes

710000746

$6.77

PF1-F14

Little Fuse, 30 Amperes

710000747

$6.77

PF1-F16

Little Fuse, 10 Amperes

710000744

$7.24

PF1-F23

Little Fuse, 20 Amperes

710000746

$6.77

PF1-F7

Little Fuse, 10 Amperes

710000744

$7.24

PF1-R3

Relay, 50 AMP

515176775

$13.45

PF1-R4

Relay

715900824

$16.22

PF1-R8

Relay

715900824

$16.22

PF2

Fuse Cover

278003553

$3.79

PF2

Fuses Decal

710007297

$9.91

PF2

Fuse Base Ass'y

278003448

$26.62

PF2

Wire Seal

278000216

$2.55

PF2

Seal

293300198

$1.78

PF2

Wire Seal

278000218

$3.48

PF2

Wire Seal

278001065

$5.85

PF2

Wire Seal

710000048

$5.10

PF2

Female Terminal

710000918

$5.10

PF2

Female Terminal

278002578

$0.86

PF2

Female Terminal

710000890

$3.73

PF2 SP1

Little Fuse, 10 Amperes

710000744

$7.24

PF2 SP2

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F17

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F18

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F28

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F4

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F5

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F9

Fuse, 25 Amps

710002590

$17.88

PF2-R1

Relay, 30 AMP

515176774

$18.63

PF2-R10

Relay

715900824

$16.22

PF2-R2

Relay

715900824

$16.22

PF3

Fuse Holder

278001325

$8.31

PF3

Female Terminal

710000113

$5.85

PF3-F2

Fuse

710001613

$7.24

POS S FL

Housing

710003731

$7.15

POS S FL

Plug

710001938

$2.49

POS S FL

Wire Seal

710001118

$1.19

POS S FL

Female Terminal

710003862

$2.31

POS S FR

Housing

710003731

$7.15

POS S FR

Plug

710001938

$2.49

POS S FR

Wire Seal

710001118

$1.19

POS S FR

Female Terminal

710003862

$2.31

POST ACC

Folded Terminal Eyelet

710006749

$9.25

POST+

Terminal 90°

710003266

$8.60

POST+

Protector Cap

710000495

$9.84

PPS F

Housing

710001232

$13.39

PPS F

Lock

710001222

$1.68

PPS F

Seal

710001233

$2.55

PPS F

Terminal

710001229

$2.93

SAS

Cover, 48 positions

710001591

$10.05

SAS

Molex Housing, 48 Circuits

710001967

$132.06

SAS

Plug

710001592

$2.06

SAS

Plug

710001593

$2.06

SAS

Female Terminal

710001589

$1.79

SAS

Female Terminal

710001590

$1.69

SAS

Terminal

710001728

$5.52

SAS

Female Terminal

710001727

$2.55

SAS REAR F

Housing

710001928

$14.52

SAS REAR F

Lock

710001222

$1.68

SAS REAR F

Lock

710006181

$3.12

SAS REAR F

Seal

710001233

$2.55

SAS REAR F

Terminal

710001229

$2.93

SAS SW

Housing

710002000

$5.86

SAS SW

Terminal

710003047

$3.12

SAS SW

Female Terminal

710005491

$1.57

SB

Housing

710002177

$3.12

SB

Lock

710002043

$0.81

SB

Seal

278001482

$2.55

SB

Female Terminal

710001134

$5.85

SIG L

Female Housing

710005321

$4.19

SIG L

Lock

710000642

$3.43

SIG L

Cap

710006310

$0.97

SIG L

Seal

278001482

$2.55

SIG L

Female Terminal

710001134

$5.85

SIG R

Female Housing

710005321

$4.19

SIG R

Lock

710000642

$3.43

SIG R

Cap

710006310

$0.97

SIG R

Seal

278001482

$2.55

SIG R

Female Terminal

710001134

$5.85

SL 2X4

Housing

710002000

$5.86

SL 2X4

Terminal

710003047

$3.12

SL 2X4

Female Terminal

710005491

$1.57

SL M

Housing

710001927

$8.31

SL M

Holder | XMR

710002006

$2.84

SL M

Lock

710006181

$3.12

SL M

Seal

710001233

$2.55

SL M

Seal Wire

710001332

$2.72

SL M

Terminal

710001224

$2.93

SL M

Terminal

710001223

$2.93

SL MODE SW

Housing

710002000

$5.86

SL MODE SW

Terminal

710003047

$3.12

SL MODULE LT

Seal

278003046

$0.74

SL MODULE LT

Seal Plug

710006362

$5.90

SL MODULE LT

Terminal

710005584

$2.09

SL MODULE LT

Female Housing ,16 Circuits

278003484

$14.27

SL MODULE LT

Female Terminal

515178018

$0.78

SL MODULE LT

Female Terminal 22 AWG

515178349

$1.76

SS

Female Housing, 2 Circuits

515177192

$6.32

SS

Lock

710001152

$3.48

SS

Wire Seal

710001163

$5.10

SS

Female Terminal

710001164

$5.92

STSW

Wire Seal

710000402

$4.28

STSW

Female Terminal

409012100

$3.73

V FL

Clip

710000992

$3.88

V FL

Housing PT

710001151

$5.72

V FL

Lock

710001152

$3.48

V FL

Wire Seal

710001163

$5.10

V FL

Terminal

710001224

$2.93

V FR

Clip

710000992

$3.88

V FR

Housing PT

710001151

$5.72

V FR

Lock

710001152

$3.48

V FR

Wire Seal

710001163

$5.10

V FR

Terminal

710001224

$2.93

XCU A

Cover

515178602

$4.66

XCU A

Housing 56 Circuits

515178595

$24.02

XCU A

Plate

515178604

$3.63

XCU A

Plug

515178599

$2.60

XCU A

Plug

515178600

$2.60

XCU A

Plate

515178603

$3.63

XCU A

Terminal

515178596

$3.30

XCU A LT

Terminal

515178598

$3.21

XCU A LT

Terminal

515178666

$4.19

YRS

Housing

710003730

$13.75

YRS

Wire Seal

710001118

$1.19

YRS

Female Terminal

710003862

$2.31

Can-Am Maverick Turbo RR - XRS Smart Shock - 2023 Electric - Main Harness - 710009158 Diagram

Main Wiring Harness

Open Barrel Terminal

Shrink Tubing, 6 mm

Open Barrel

Female Housing 20 Circuits

Sealing Cap

Female Terminal 22 AWG

Female Terminal

Housing

Lock

Wire Seal

Female Terminal

Diode

Housing

Terminal

Female Housing, 2 Circuits

Female Terminal

Male Housing, 2 Circuits

Female Delphi Connector 5 Cavities

Lock

Wire Seal

Female Terminal

Female Housing 6 Circuits

Lock

Female Terminal

Female Terminal

Female Housing

Lock | PACKARD 15430900

Lock

Plug

Wire Seal

Seal

Female Terminal

Terminal

Female Housing, 12 Circuits

Lock

Lock

Cap

Seal

Terminal

Fuse Wire 31-40AMP

Fuse Wire 31-40AMP

Male Housing, 4 Circuits

Lock

Lock

Wire Seal

Seal

Female Terminal

Terminal

Female Housing, 2 Circuits

Female Terminal

Clip

Female Housing, 2 Circuits

Wire Seal

Male Terminal

Female Housing, 2 Circuits

Wire Seal

Male Terminal

Female Housing, 2 Circuits

Wire Seal

Female Terminal

Female Housing, 2 Circuits

Wire Seal

Female Terminal

Housing

Terminal

Female Terminal

Housing

Lock

Lock

Cap

Seal

Seal Wire

Terminal

Terminal

Housing

Lock

Seal

Female Terminal
