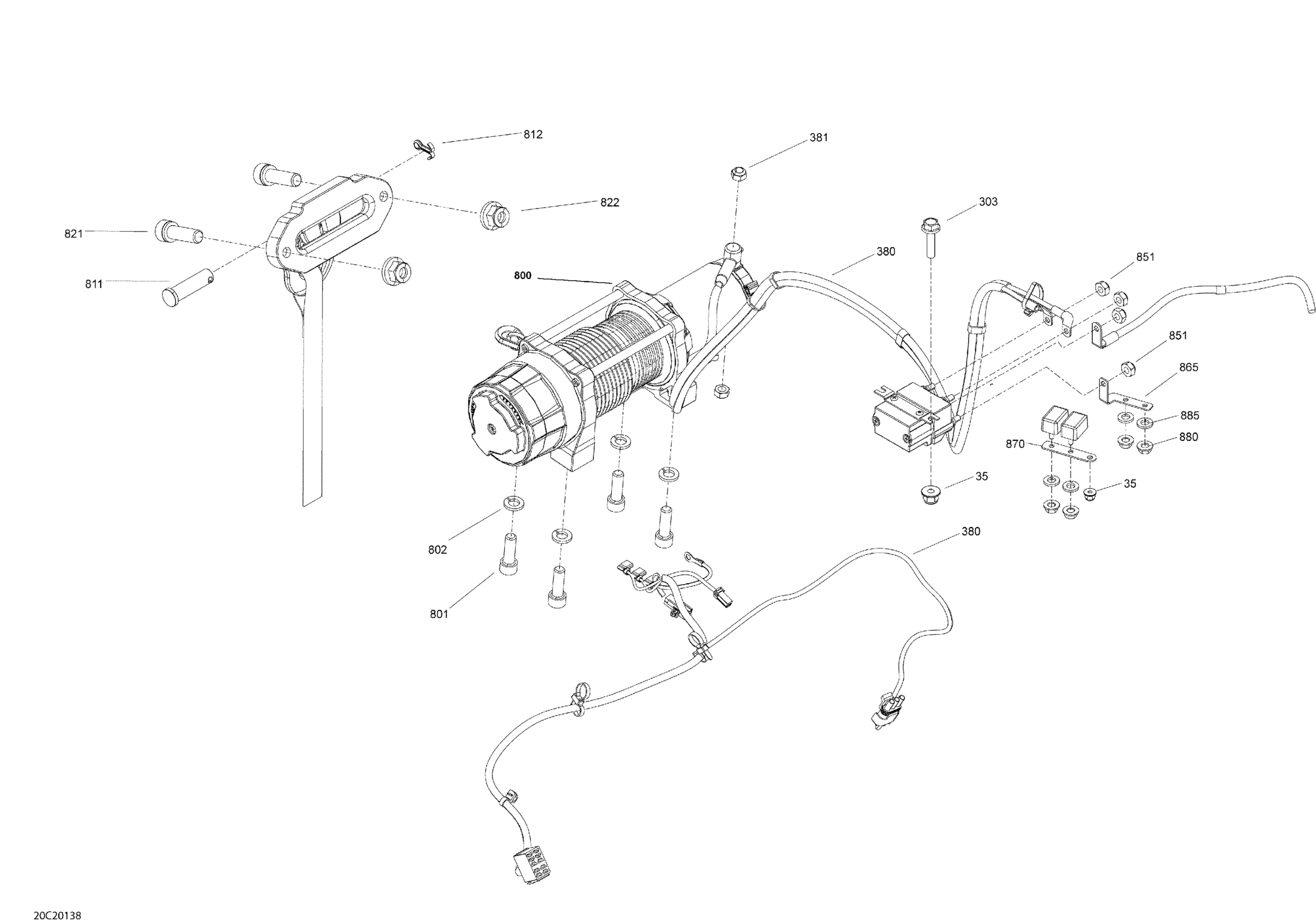

Can-Am Maverick Turbo RR - XRC - 2020 Electric - System - Winch Diagram

Description

Price

Hex. Flange Elastic Nut M6

233261494

$1.45

303

Hex. Flange Screw M6 X 25

207662554

$1.43

380

Winch Cables

710006470

$101.46

381

Elastic Stop Nut M6, Brass

232561200

$4.03

800

Electric Winch

710006990

$711.16

801

Socket Head Screw M8 X 25

205082544

$1.06

802

Lock Washer 8 mm

234181401

$0.87

811

Winch Hook Kit

705014949

$23.10

812

Winch Hook Kit

705014949

$23.10

821

Socket Screw M10 x 30 | XT

205003044

$3.00

822

Hex. Flange Elastic Nut M10

233201436

$2.00

851

Elastic Stop Nut M6, Brass

232561200

$4.03

865

Copper Busbar

710006400

$10.97

870

Copper Busbar

710006401

$10.97

880

Hex. Flange Nut M5

250100071

$2.03

885

Lock Washer Helical M6

234161601

$1.06
