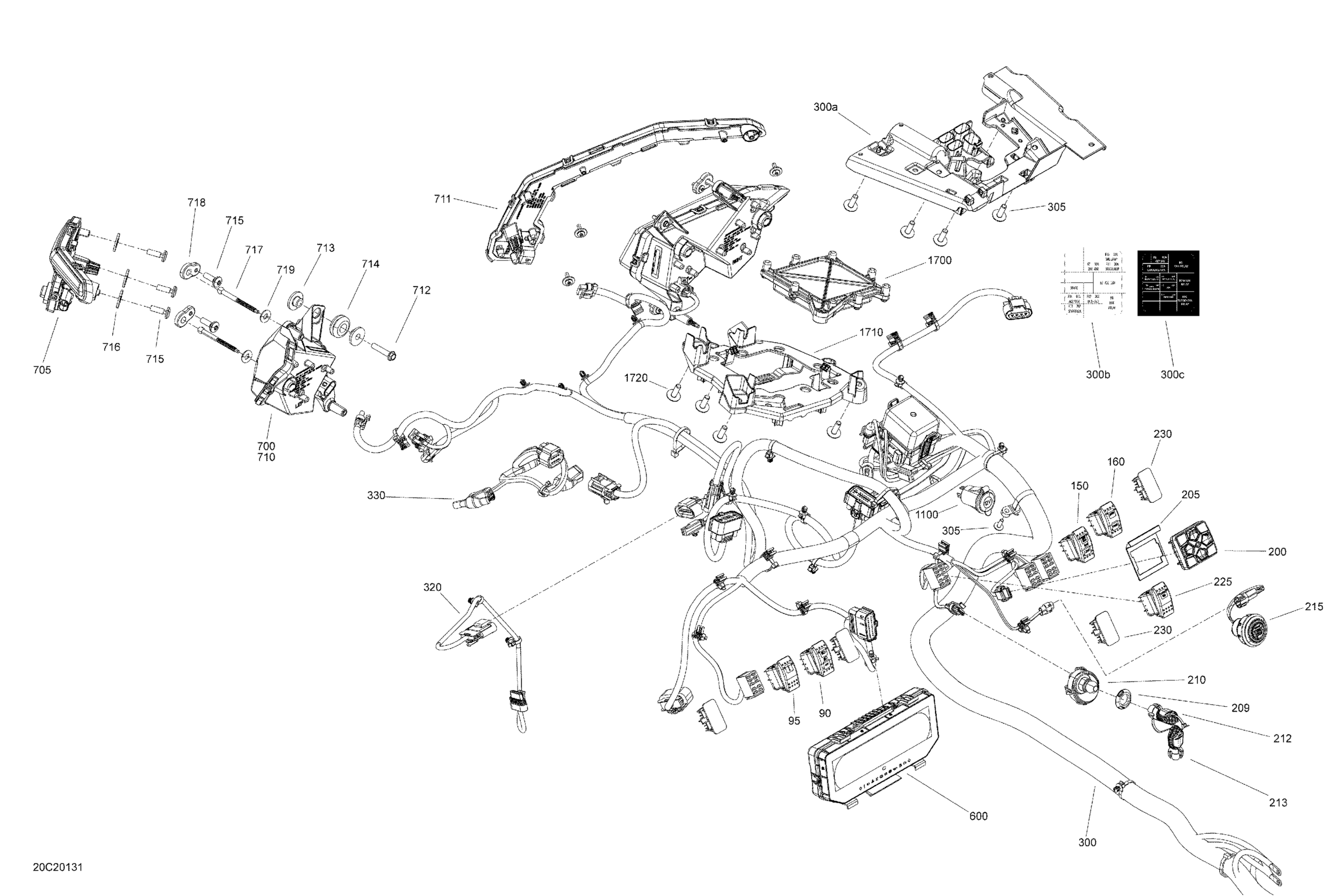

Can-Am Maverick Turbo RR - XRC - 2020 Electric - System - Front Section Diagram

#

Description
Price

90

Light Switch

710004492

$47.49

95

Switch Winch

710002052

$28.49

150

Differential Switch

710006040

$31.99

160

Differential Mode Switch

710006558

$23.49

200

Switch Multifunction

710006059

$87.99

205

Rubber Stopper

707900778

$3.29

209

Safety Nut (DESS Switch)

278002963

$3.28

210

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

212

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

213

Green Key RFID | Except Model Europe, Except T3

710005232

$63.49

215

Start-Stop Button | Not Shown

710005213

$60.49

225

Switch, Over ride

710002053

$19.49

230

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

300

Main Wiring Harness | Includes 300 to 300c

710006658

$929.99

300a

Fuse Holder Support

710006339

$18.99

300b

Fuses Decal

710006560

$10.99

300c

Fuses Decal

710006408

$10.99

305

Screw PT Type K-50 X 16

250000959

$2.11

320

Cable Throttle Pedal

710005291

$239.99

330

Front Differential Wiring Harness

710006807

$49.99

600

Full Size Multifunction Gauge

710006854

$449.99

700

LH Front Auxiliary LED Light

710008811

$459.99

705

LH Signature Beam

710004994

$169.99

710

RH Front Auxiliary LED Light

710008812

$449.99

711

RH Signature Beam

710004995

$169.99

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.44

713

Shoulder Bushing

710004749

$2.69

714

Grommet

709000582

$4.69

715

Torx Screw K50 X 16

250000720

$1.69

716

Stainless Steel Flat Washer

234062670

$2.11

717

Ajustment Screw

710005837

$6.35

718

Adjustment Guide

710005097

$9.59

719

O-Ring

293300192

$4.92

1100

12V Power Outlet

710005374

$33.99

1700

Differential Module

710008871

$479.99

1710

FDM Support

710005807

$8.60

1720

Screw PT Type K-50 X 16

250000959

$2.11
