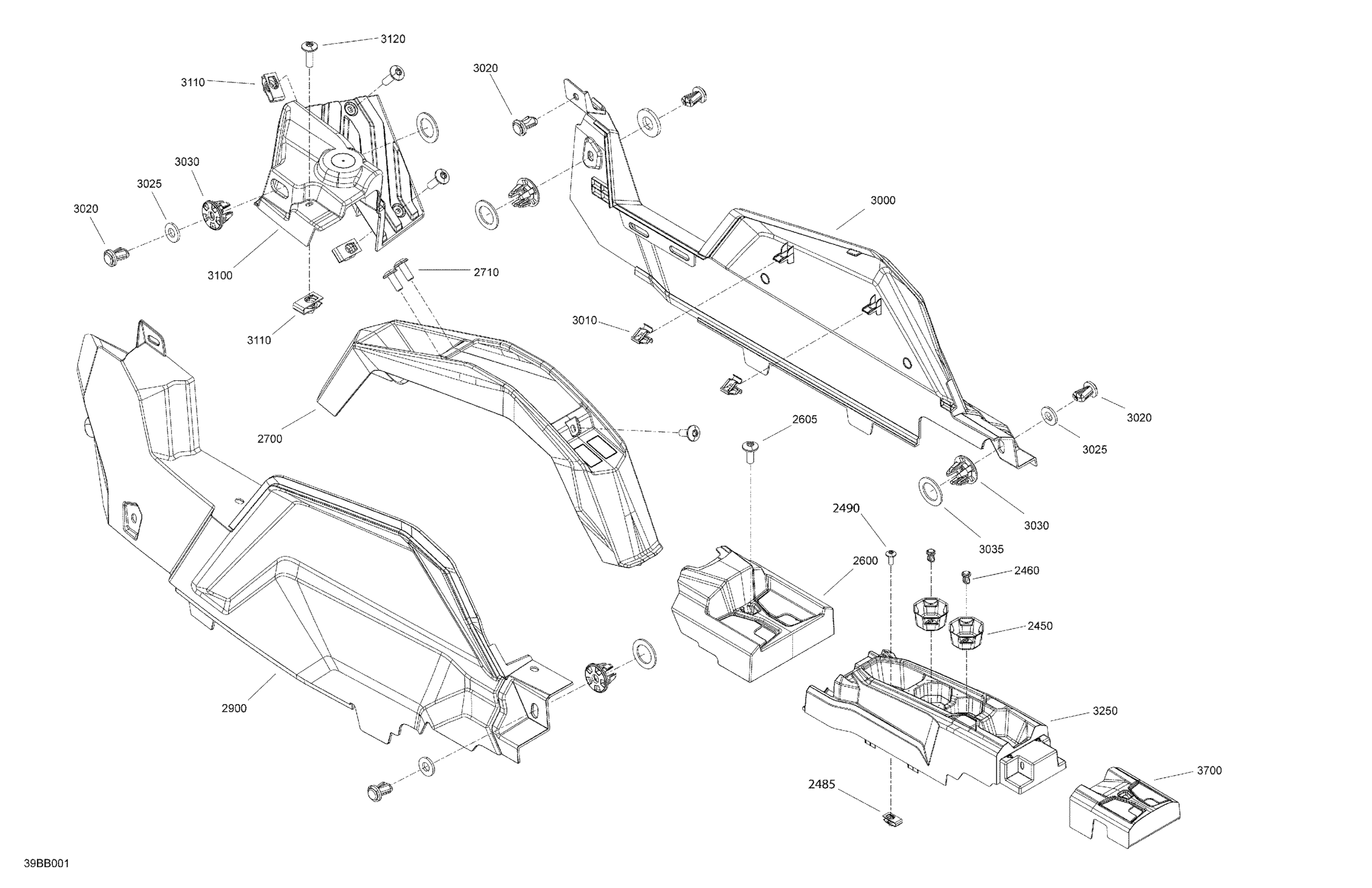

Can-Am Maverick Sport MAX 1000R - DPS - 2022 Cab Interior - Center Console Diagram

Description

Price

2450

Cup Holder

707900532

$10.49

2460

Tuflok Plastic Rivet

293150230

$1.47

2485

Panel Nut M6 X 1.0

250100198

$2.11

2490

Torx Truss Screw M6 X 16

250000721

$1.69

2600

Belt Cover

707900538

$31.99

2605

Torx Truss Screw M6 X 16

250000721

$1.69

2700

Central Console

707900537

$26.99

2710

Torx Truss Screw M6 X 16

250000721

$1.69

2900

LH Lateral Console Panel

715005013

$119.99

3000

Not Available As Spare Parts

XXX

Unavailable

3010

Clip

517306478

$1.09

3020

Tuflok Plastic Rivet

293150230

$1.47

3025

Washer

503192494

$3.17

3030

Insert

707900133

$2.89

3035

Washer

503189273

$3.28

3100

Passenger Footrest

707900545

$42.99

3110

Panel Nut M6 X 1.0

250100198

$2.11

3120

Torx Screw M6 X 20

250000722

$1.68

3250

Rear Top Console

707900547

$104.99

3700

Rear Belt Cover

707900548

$31.99
