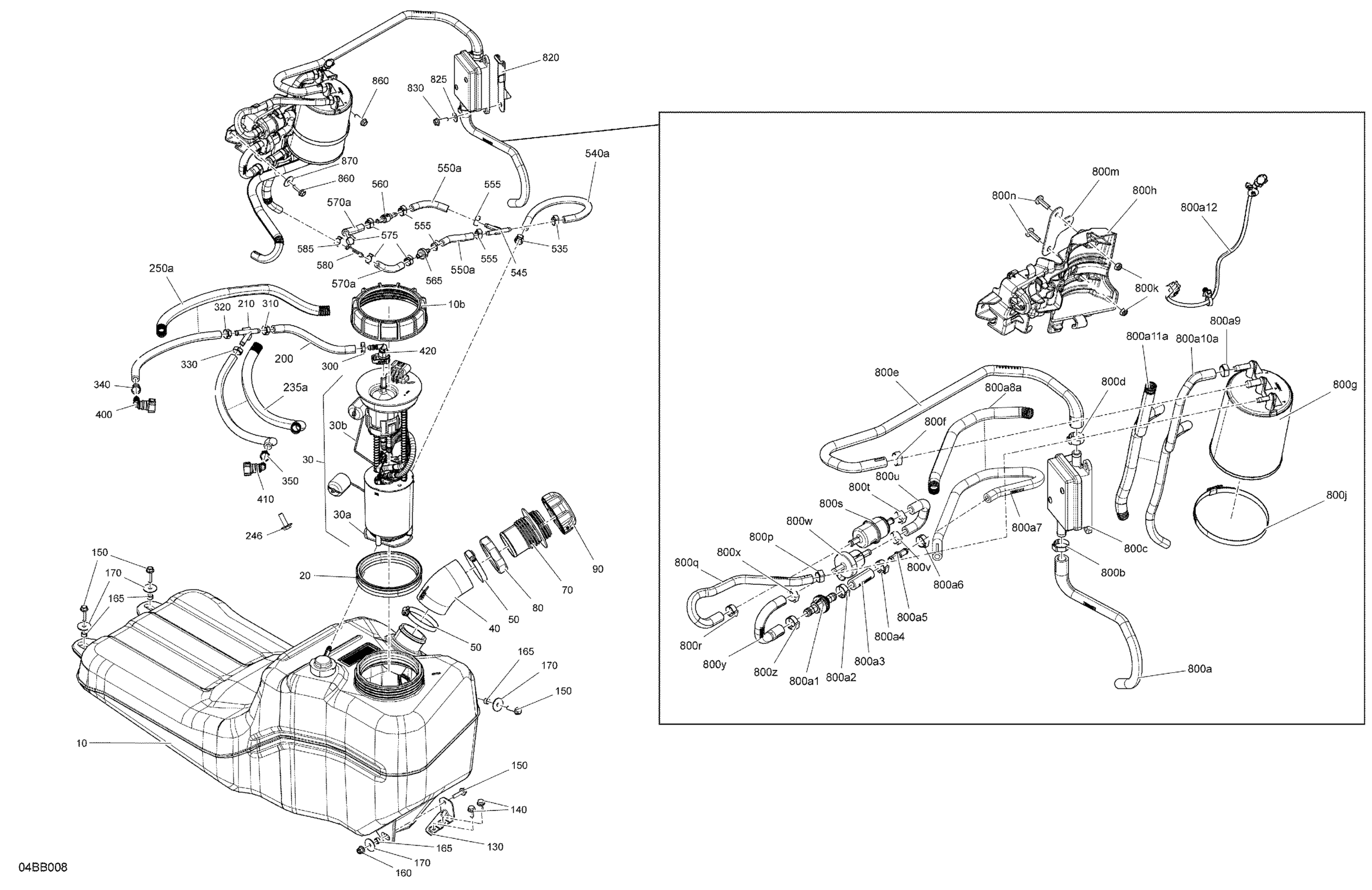

Can-Am Maverick Sport MAX 1000R - DPS - 2022 Engine - Fuel - EVAP Diagram

#

Description
Price

10

Fuel Tank Ass'y | Includes 10 to 10b

709001434

$401.51

10b

Special Nut M130

250100062

$17.52

20

Gasket

293250173

$15.57

30

Fuel Pump | Includes 30 to 30b

709001056

$349.97

30a

Fuel Filter

270600113

$27.27

30b

Fuel Sender

715900424

$138.43

40

Fil Neck Hose

709000828

$32.28

50

Norma Clamp

293650081

$9.87

70

Filler Neck

709000867

$14.75

80

Fuel Filler Neck Nut

293600206

$10.02

90

Fuel Cap

709000868

$32.28

130

Tank Bracket

709000997

$5.52

140

Hex. Flange Screw M6 X 16

207661644

$0.61

150

Hex. Flange Screw M6 X 25

207662554

$1.48

160

Hex. Flange Elastic Nut M6

233261466

$1.66

165

Spacer

293900135

$1.37

170

Washer M6

250200029

$1.83

200

Hose 7,94 MM ID 3000MM Long

219704475

$87.66

210

Y Fitting

709001329

$10.15

235a

Tubing 16 Mm 1000Mm Long

219704408

$6.23

246

Screw PT Type K-50 X 16

250000959

$1.74

250a

Tubing 16 Mm 1000Mm Long

219704408

$6.23

300

Crimp Clamp

293650053

$2.42

310

Crimp Clamp

293650053

$2.42

320

Crimp Clamp

293650053

$2.42

330

Crimp Clamp

293650053

$2.42

340

Crimp Clamp

293650053

$2.42

350

Crimp Clamp

293650053

$2.42

400

Quick Attach 90°

275500700

$12.61

410

Quick Attach 90°

275500700

$12.61

420

Quick Disconnect

275500921

$12.61

535

Oetiker Clamp

293650042

$1.40

540a

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

545

Y-Fitting

293710059

$8.19

550a

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

555

Oetiker Clamp

293650042

$1.40

560

Check Valve

513033469

$25.32

565

Check Valve

275500398

$8.57

570a

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

575

Oetiker Clamp

293650042

$1.40

580

Y-Fitting

293710059

$8.19

585

Oetiker Clamp

293650042

$1.40

800a

Formed Hose

709000879

$16.89

800b

Oetiker Clamp

293650186

$3.33

800c

Air Filter

709000524

$46.12

800d

Oetiker Clamp

293650186

$3.33

800e

Formed Hose

709000957

$16.89

800f

Crimp Clamp

293650053

$2.42

800g

Charcoal Canister This part replaces 709001294.

709001673

$83.05

800h

Canister Support | EVAP Models

709000851

$4.60

800j

Tridon Clamp

293650054

$7.51

800k

Hex. Elastic Stop Nut M6

232561600

$0.92

800m

Support

709000936

Unavailable

800n

Torx Screw M6 X 20

250000712

$1.74

800p

Oetiker Clamp

293650042

$1.40

800q

Formed Hose

709000853

$15.22

800r

Oetiker Clamp

293650046

$2.33

800s

Fuel Filter

513034047

$23.05

800t

Crimp Clamp, 15.3-706R

293650047

$2.64

800u

Formed Hose

709000857

$15.22

800v

Crimp Clamp, 15.3-706R

293650047

$2.64

800w

Bleed Valve

709000443

$69.20

800x

Crimp Clamp, 15.3-706R

293650047

$2.64

800y

Formed Hose

709000881

$16.89

800z

Crimp Clamp

293650053

$2.42

800a1

Check Valve

275500941

$27.66

800a2

Crimp Clamp

293650053

$2.42

800a3

Hose

709000882

$15.35

800a4

Crimp Clamp

293650053

$2.42

800a5

Flow Reducer

709000933

$4.60

800a6

Crimp Clamp, 15.3-706R

293650047

$2.64

800a7

Formed Hose

709001013

$27.66

800a8a

Tubing 16 Mm 1000Mm Long

219704408

$6.23

800a9

Oetiker Clamp

293650046

$2.33

800a10a

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

800a11a

Tubing 16 Mm 1000Mm Long

219704408

$6.23

800a12

Extension Wiring Harness

710005866

$27.66

820

Filter Support

709000935

$3.98

825

Stainless Steel Flat Washer

234062670

$1.74

830

Hex. Flange Screw M6 X 20

207662054

$0.83

860

Hex. Flange Screw M6 X 20

207662054

$0.83

870

Flat Washer M6.6 X 22

250200162

$1.91
