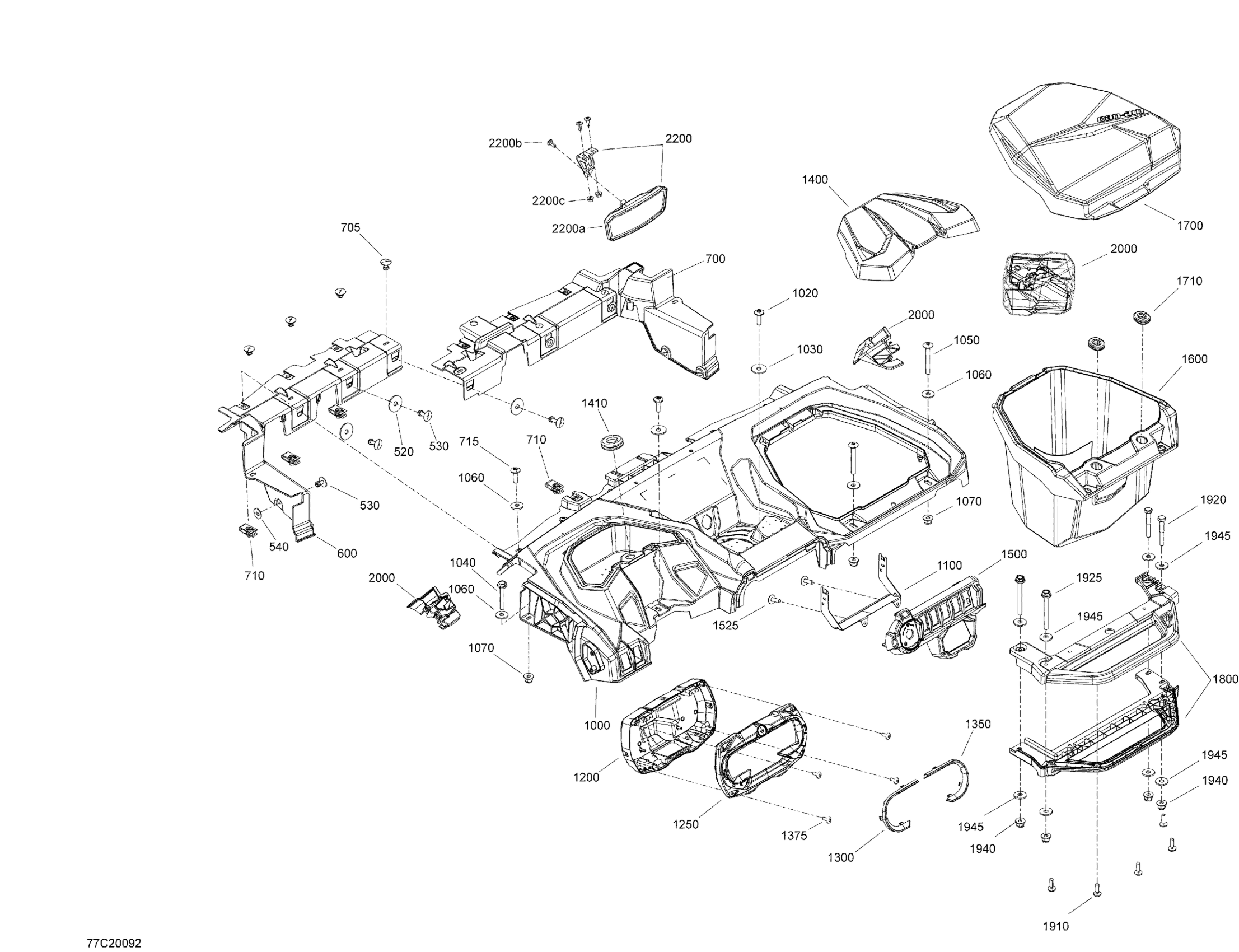

Can-Am Maverick Sport 1000R - XXC - 2020 Cab Interior - Dashboard Diagram

#

Description
Price

520

Flat Washer M6 X 25

250200044

$1.97

530

Pop Rivet 3/16"

293150100

$1.04

540

Washer M5

250200025

$0.70

600

LH Upper Front Bulkhead

707900513

$15.64

700

RH Upper Front Bulkhead

707900514

$15.64

705

Pop Rivet 3/16"

293150100

$1.04

710

Panel Nut M6 X 1.0

250100198

$1.99

715

Torx Screw M6 X 20

250000722

$1.54

1000

Dashboard Kit

715008526

$182.81

1020

Torx Screw M6 X 20

250000722

$1.54

1030

Flat Washer M6.6 X 22

250200162

$2.19

1040

Hex. Flange Screw M6 X 40

207664044

$2.12

1050

Torx Truss M6 X 50

250000868

$2.00

1060

Stainless Steel Flat Washer

234062670

$2.00

1070

Hex. Flange Elastic Nut M6

233261466

$1.91

1100

Dash Support

707900941

$7.31

1200

Rear Gauge Trim

709402141

$19.37

1250

Front Gauge Trim

709402142

$20.12

1300

Deep Black, LH Trim Gauge

705012349

$4.99

1350

Deep Black, RH Trim Gauge

705012351

$4.99

1375

Torx Truss Screw K40 X 12

250000577

$2.00

1400

Storage Cover

707900522

$12.46

1410

Grommet

517303756

$3.61

1500

Switch Support

707900546

$15.64

1525

Screw PT Type K-50 X 16

250000959

$2.00

1600

Glove Box

715005011

$51.46

1700

Glove Box Cover

715005009

$48.48

1710

Oblong Grommet

707900663

$2.06

1800

Passenger Handle Bar Kit

707900559

$32.06

1910

Torx Screw K50 X 16

250000720

$1.60

1920

Hex. Screw M6 X 45

207064544

$1.96

1925

Hex. Flange Screw M6 X 60

250000778

$4.15

1940

Hex. Flange Elastic Nut M6

233261466

$1.91

1945

Stainless Steel Flat Washer

234062670

$2.00

2000

Front Cage Trim Kit

707900531

$26.09

2200

Center Mirror Kit | Except Package XMR

715004924

$106.49

2200a

Central Mirror

707900502

$52.96

2200b

Torx Truss Screw M6 X 16

250000721

$1.60

2200c

Hex. Elastic Flange Nut M6

233161464

$0.96
