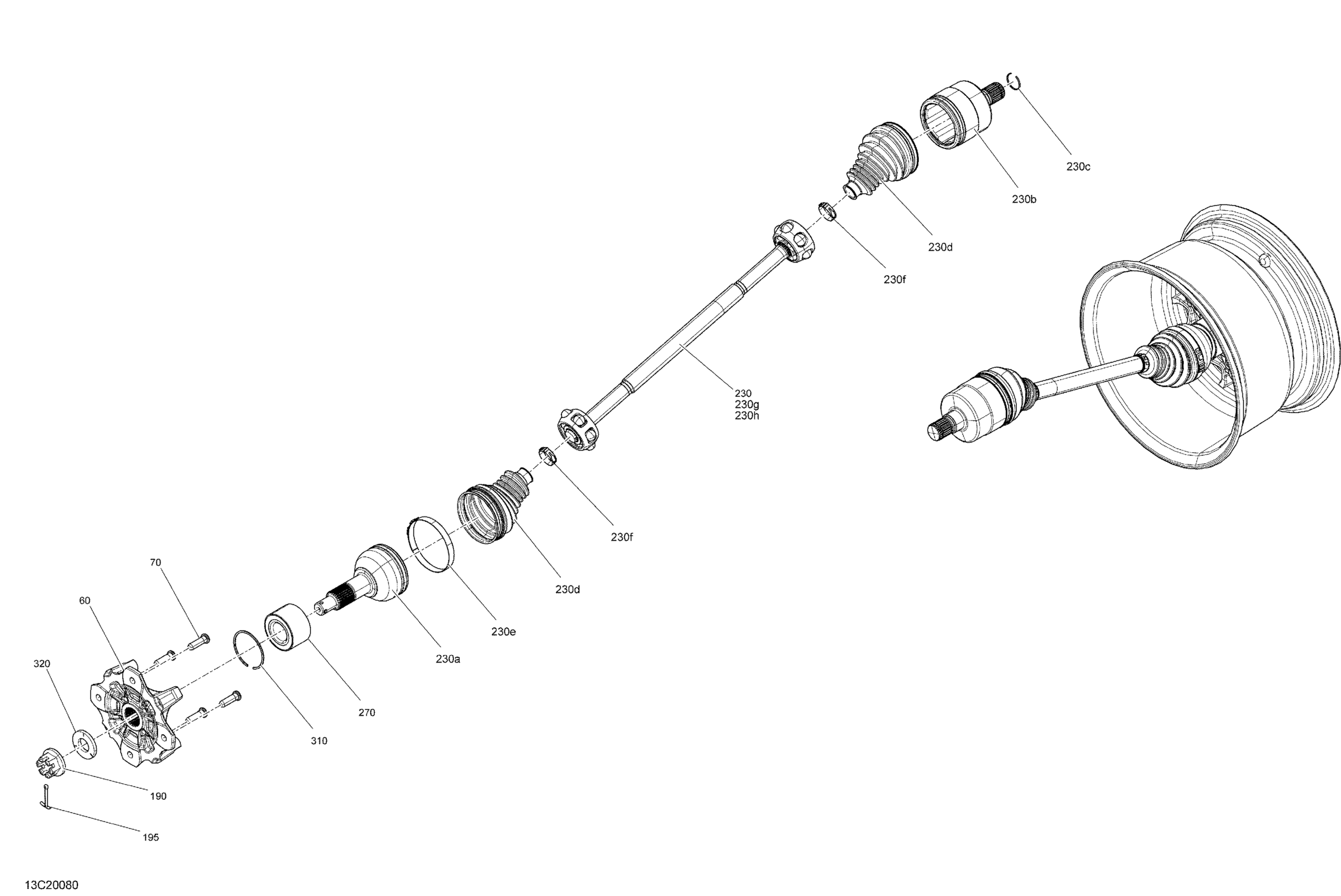

Can-Am Maverick Sport 1000R - XXC - 2020 Rear Drive - Common Parts Diagram

Description

Price

Wheel Hub

705502338

$116.49

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

190

Castle Nut M20

250100193

$8.05

195

Cotter Pin

250400084

$2.29

230

Rear Half Shaft | Includes 230 to 230g

705502757

$243.99

230a

JOINT_CV EXT - Call your local BRP dealership

715900429

$244.99

230b

Plunging Joint

715900444

$275.49

230c

Circlip

705501781

$6.50

230d

Boot Kit

705501864

$42.49

230e

Oetiker Clamp, 82.1 mm

715900241

$10.33

230f

Oetiker Clamp, 27.3 mm

715900242

$10.33

230g

Joint Protector

705501842

$8.85

230h

O-Ring

715900579

$2.51

270

Ball Bearing

293350150

$52.99

310

Circlip

293370019

$4.68

320

Conical Spring Washer M20

250200170

$14.74
