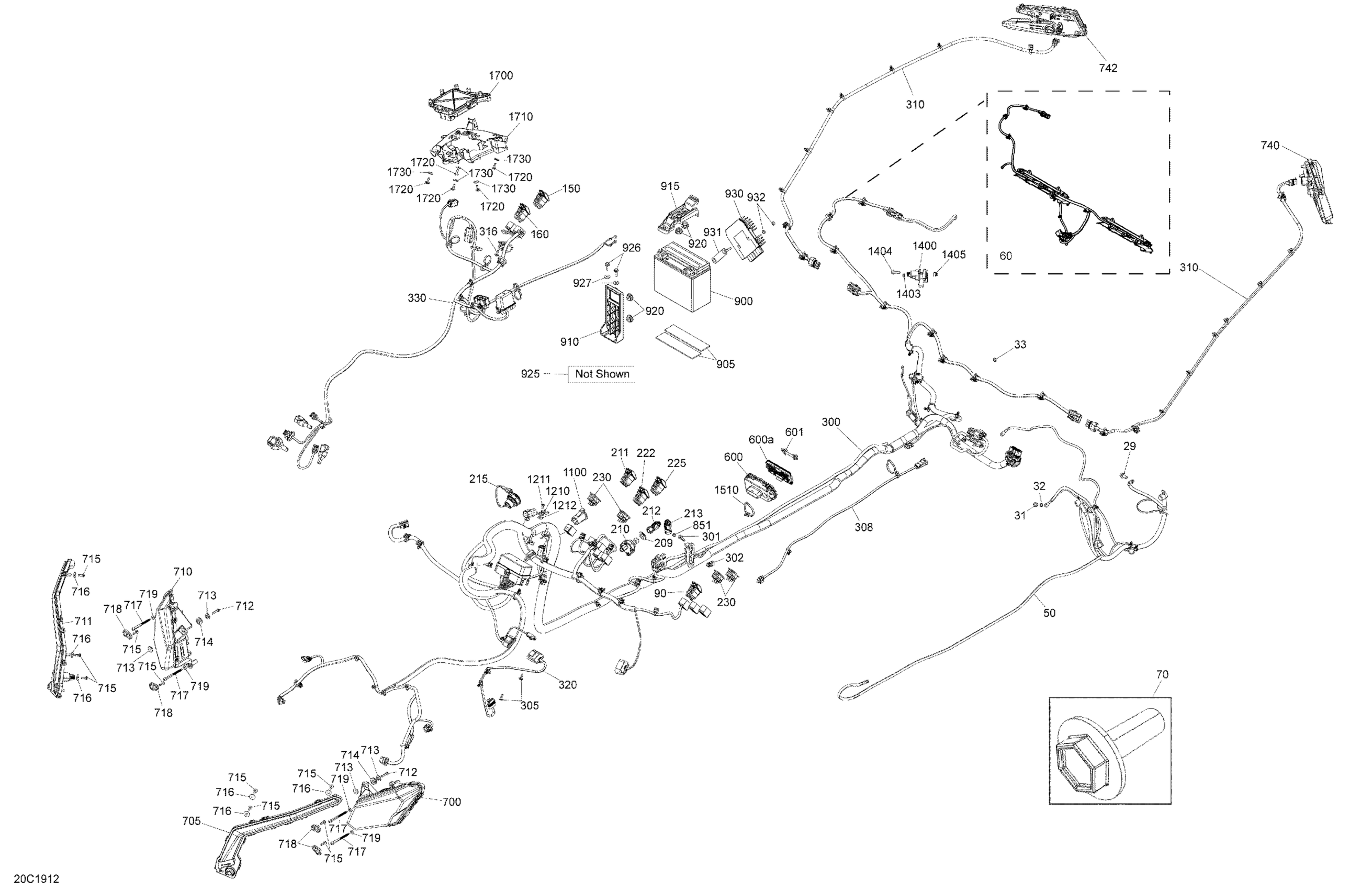

Can-Am Maverick MAX Turbo R - 2019 Electrical Turbo R - Packages XRS & XDS Diagram

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.08

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

External Serrated Lock Washer 6 mm

234461608

$0.92

Elastic Stop Nut M6

232561414

$1.55

Starter Wiring Harness

710006022

$69.20

Wiring Harness Junction

710006246

$92.28

Screw PT Type K-50 X 16

250000959

$1.74

Light Switch

710004492

$46.12

Differential Switch

710006040

$32.28

Differential Mode Switch

710006557

$32.28

Safety Nut (DESS Switch)

278002963

$2.72

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

Switch DPS

710001781

$23.74

Grey Key RFID | Except Model Europe, Except T3

710004964

$55.35

Green Key RFID | Except Model Europe, Except T3

710005232

$55.35

Start-Stop Button | Not Shown

710005213

$59.97

Driving Mode Switch

710005909

$36.89

Switch, Over ride

710002053

$19.27

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Main Wiring Harness Long | Includes 300 to 300a

710006254

$876.89

Fuse Holder Support

710006339

$16.12

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

Panel Nut M6 X 1.0

250100198

$1.73

Screw PT Type K-50 X 16

250000959

$1.74

Safety Belt Wiring Harness

710005898

$20.74

Rear Wiring Harness

710006424

$27.66

Screw PT Type K-50 X 16

250000959

$1.74

Cable Throttle Pedal

710005291

$226.12

Front Differential Wiring Harness

710006807

$46.12

Speedometer | Includes 600 to 600a

710006334

$415.35

Lens | XTP

415129349

$23.05

Speedometer Button | XTP

415129355

$13.94

LH Front Auxiliary LED Light

710008811

$441.74

LH Signature Beam

710004994

$161.51

RH Front Auxiliary LED Light

710008812

$432.24

RH Signature Beam

710004995

$161.51

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

Shoulder Bushing

710004749

$2.75

Grommet

709000582

$4.38

Torx Screw K50 X 16

250000720

$1.39

Stainless Steel Flat Washer

234062670

$1.74

Ajustment Screw

710005837

$6.45

Adjustment Guide

710005097

$8.45

O-Ring

293300192

$3.85

LH Tail Light

710004743

$129.20

RH Tail Light

710004744

$129.20

Elastic Stop Nut M6, Brass

232561200

$3.51

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

Battery Bolt Kit

250000282

$2.95

Rubber Pad

293830126

$11.01

Fixation Plate

710004788

$9.77

Fixation Plate

710004789

$6.92

Stopper Rubber

705014429

$6.09

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

Flat Washer 6 mm

234062410

$0.64

Voltage Regulator

710005842

$159.87

Bracket

710005782

$11.00

Elastic Stop Nut M6

232561414

$1.55

Battery Cable Cap

710006471

$2.75

12V Power Outlet

710005374

$27.27

Clip

270000141

$8.33

Pop Rivet 3/16"

390402300

$0.75

Washer | DS 650 X

391301600

$0.48

Starter Relay

278003012

$35.07

Elastic Stop Nut M6, Brass

232561200

$3.51

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

Panel Nut M6 X 1.0

250100198

$1.73

Front Drive Module

710006479

$447.66

FDM Support

710005807

$6.92

Screw PT Type K-50 X 16

250000959

$1.74

Washer M5

250200025

$0.61
