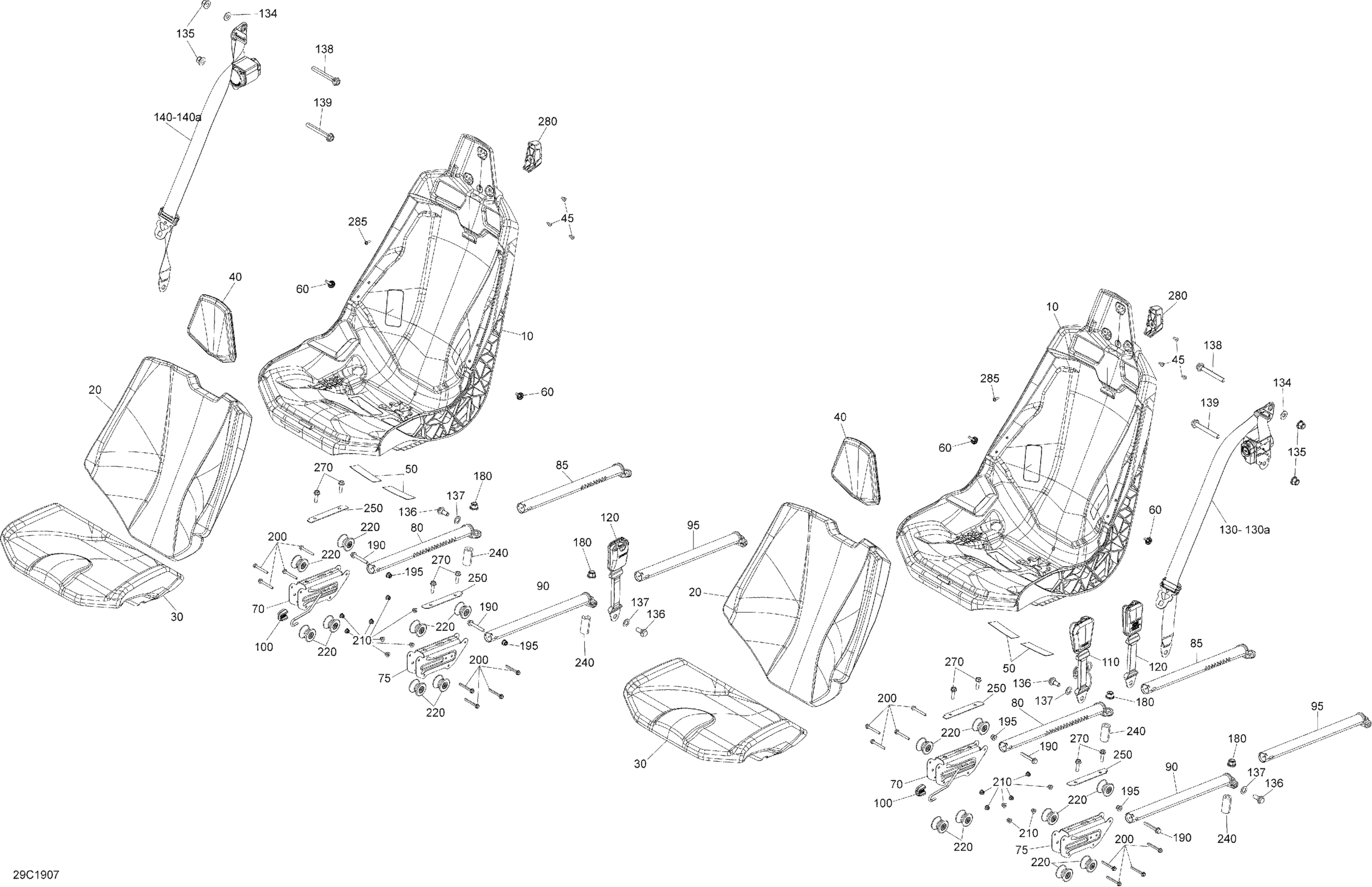

Can-Am Maverick MAX Turbo R - 2019 Seat - Turbo R Diagram

#

Description
Price

10

LH Seat Shell

715005155

$249.99

10

RH Seat Shell

715005156

$249.99

20

Backrest Ass'y

708002121

$349.99

20

Backrest

708002674

$394.00

20

Backrest Cushion

708002676

$394.00

20

Backrest Cushion | Package XRS & Hyper Silver

708002874

$349.99

30

Cushion Ass'y

708002124

$214.15

30

Seat Base Cushion | Model Gold

708002382

$214.15

30

Seat Base Ass'y

708002672

$214.15

30

Seat Base Cushion

708002678

$214.15

35

Stopper

708002670

$3.81

40

Headrest

708002131

$91.01

45

Torx Screw K50 X 16

250000720

$1.60

50

Velcro Tape

708002535

$4.09

60

Button Head Tie Rap

708002533

$1.76

70

Adjustable Trolley Kit

703500997

$52.21

75

Trolley

708002298

$15.64

80

Seat Rail

708003061

$47.73

85

Rail

708002578

$49.22

90

Seat Rail

708003064

$47.73

95

Rail

708002575

$49.22

100

Adjustment Handle

708002655

$13.99

110

Driver Buckle

708002714

$91.01

120

Passenger Buckle

708002385

$80.57

130

Safety Belt Passenger

708002654

$256.69

130

Safety Belt 4 Points | Package XRSDPS

708002918

$308.99

130a

RH Shoulder Pad

708002825

$33.55

134

Flat Washer M12

250200102

$2.00

135

Elastic Flange Nut M12

233221416

$2.67

136

Safety Belt screw

708002504

$4.76

137

Position Washer

708000891

$0.97

138

Hex. Flange Screw M12 X 97.5

250000896

$9.16

139

Hex. Flange Screw M12 X 95

250000876

$6.36

140

Driver Side Safety Belt

708002811

$256.69

140

LH Front Safety Belt 4 Points

708002917

$244.00

140a

LH Shoulder Pad

708002824

$33.55

180

Elastic Flange Nut M12

233221416

$2.67

190

Hex. Flange Screw M8 X 55

207685554

$5.04

195

Elastic Flange Nut M8

233281464

$0.96

200

Hex. Flange Screw M6 X 50

207665054

$4.54

210

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

220

Wheel

708002134

$14.40

240

Rear Bushing

708002299

$9.73

250

Plate | Includes 250 to 250a

708003680

$1.97

270

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.63

400

Elastic Flange Nut M12

233221416

$2.67

410

Elastic Flange Nut M8

233281464

$0.96
