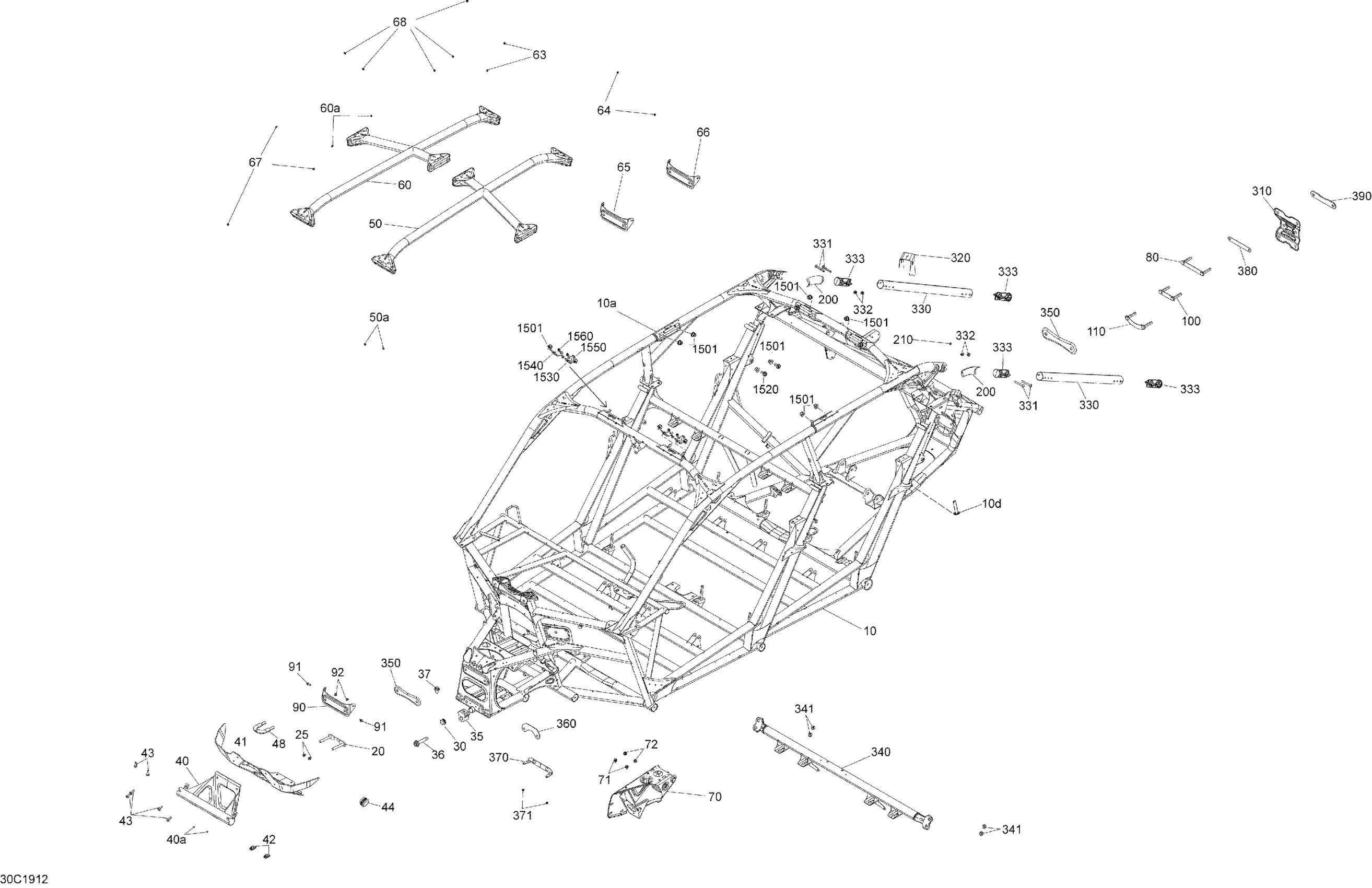

Can-Am Maverick MAX Turbo - 2019 Frame Diagram

#

Description
Price

10>10c

Black Frame Kit | Includes 10 to 10c

715005783

Unavailable

10a>10a2

Black Cage Kit | Except XRSDPS Package, Liquid Gold. Upper Section Only

715004371

Unavailable

10>10c

Hyper Silver Frame Kit | Includes 10a to 10a2

715005781

Unavailable

10a>10a2

Hyper Silver Cage Kit | Includes 10a to 10a2

715005721

Unavailable

10a1

Hex. Flange Elastic Nut M12

233221414

$5.85

10a2

Hex. Flange Screw S.Grip M12 X 30

207523036

$6.57

10b

Hexagonal Nut

233701400

$0.55

10c

Pop Rivet 3/16"

390402200

$0.30

10d

Weld Pin 8mm X 40mm

250000913

$1.85

20

Front Plate

705207424

$17.88

25

Flange Screw M6 X 10, Scotch Grip

207561044

$6.76

30

Insert Half Hex Body M6 x 1.0

250100199

$2.91

35

Bumper Link

705206992

$14.90

36

Flange Screw M12 X 60

250000857

$6.99

37

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.49

40

Deep Black, Front Bumper | Except Model Gold

705210400

$96.24

40

Hyper Silver, Front Bumper | Packages XRS

705207305

$106.69

40

YELLOW FRONT XRC BUMPER KIT - Call your local BRP dealership | Includes 40 to 40a

715004741

Unavailable

40a

Pop Rivet 3/16"

390402200

$0.30

41

Front Master Plate

705206871

$188.78

42

Panel Nut M6 X 1.0

250100198

$1.99

43

Torx Screw M6 X 20

250000722

$1.54

44

Cap

705202455

$4.27

48

U-Clamp

705206983

$35.04

49

Hex. Flange Elastic Nut M10

233201436

$2.00

50

LH Added Cage | Except XRSDPS Package, Liquid Gold

705206251

$91.99

50

Hyper Silver, LH Added Cage | Hyper Silver

705207366

$91.99

50

Sunburst Yellow, LH Added Cage | Package XMR

705207364

Unavailable

50a

Pop Rivet 3/16"

390402200

$0.30

60

Deep Black, RH Reinforcement Cage | Includes 60 to 60a1j

705210079

$91.99

60

Hyper Silver, RH Added Cage | Hyper Silver

705207367

$91.99

60

Sunburst Yellow, RH Added Cage | Package XMR

705207365

Unavailable

60a

Pop Rivet 3/16"

390402200

$0.30

63

Elastic Flange Nut M12

233221466

$2.46

64

Hex. Flange Screw DIN.6921 M12X25

250000856

$6.28

65

Deep Black, LH Cage Reinforcement

705211746

$52.96

66

Deep Black, RH Cage Reinforcement

705211747

$52.96

67

Torx Head Screw M6 X 16

250000717

$2.00

68

Hex. Flange Elastic Nut M6

233261494

$1.45

70

DPS Support

705206924

$64.15

71

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.06

72

Hex. Flange Elastic Nut M8

233281414

$1.31

80

Rear Upper Plate

705206852

$18.63

90

Stifner Plate

705206877

$27.58

91

Hex. Flange Screw M6 X 16

207661654

$2.00

92

Hex. Flange Elastic Nut M6

233261494

$1.45

100

Rear Central Plate

705211558

$17.13

110

Rear Plate

705206854

$18.63

200

Black, LH Link Plate | Except Model Gold

705205926

$23.10

200

Link Plate

705206651

$23.10

200

Link Plate | SunBurst Yellow

705207308

$23.10

210

Rivet 3/16"

293150102

$0.69

310

Rear Plate

705205750

$23.10

320

Black, Rear Attachement Hook

715004450

$85.79

330

Deep Black, Rear Pillar

705210066

$24.99

330

Rear C-Member

705206649

$24.99

330

Hyper Silver, Rear Mount | SunBurst Yellow

705207382

$24.99

331

Torx Truss M8 X 65

250000901

$1.79

332

Elastic Flange Nut M8

250100025

$1.43

333

Sleeve

705210648

$8.42

340

Belt Bar

705205268

$112.66

341

Elastic Stop Nut M12

232521416

$1.61

350

Connecting Plate

705211552

$4.81

360

Retaining Plate

705210249

$4.72

365

Front Plate | Package STD

705207438

$2.69

370

Support

706203122

$10.67

371

Pop Rivet 3/16"

390402200

$0.30

380

Front Upper Plate

705206069

$13.09

390

Rear Upper Plate | Model XRSDPS

705206511

$13.09

1501

Elastic Flange Nut M12

233221466

$2.46

1520

Hex. Flange Screw DIN.6921 M12X25

250000856

$6.28

1530

Deep Black, LH Cage Reinforcement

705211746

$52.96

1540

Deep Black, RH Cage Reinforcement

705211747

$52.96

1550

Torx Head Screw M6 X 16

250000717

$2.00

1560

Hex. Flange Elastic Nut M6

233261466

$1.91
