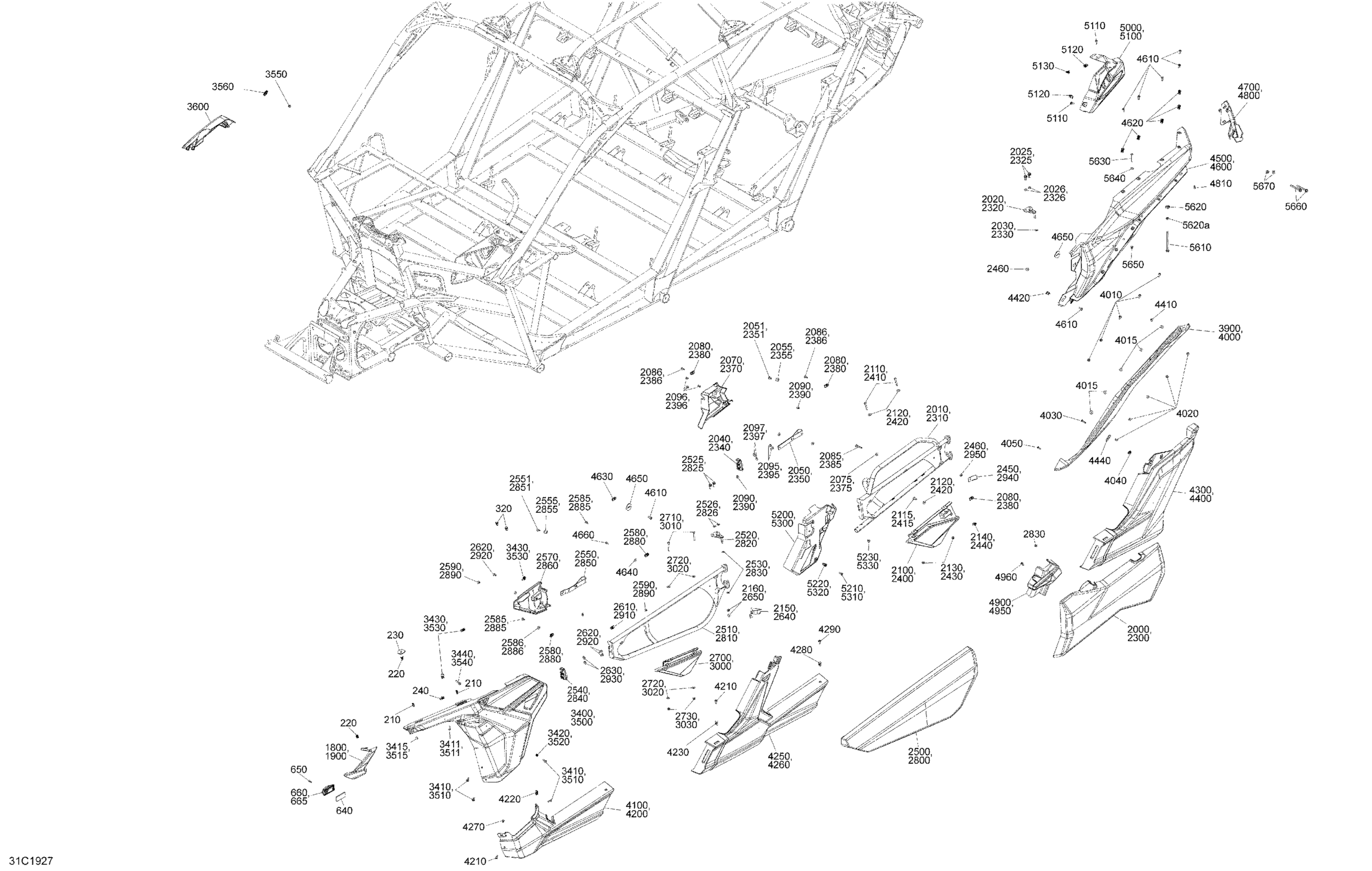

Can-Am Maverick MAX Turbo - 2019 Body - Side Section - Hyper Silver Diagram

#

Description
Price

210

Clip

705010721

$2.03

220

Edge Clip

517302785

$0.81

230

Support Plate

705003841

$0.91

240

Panel Nut M6 X 1.0

250100198

$1.99

320

Tuflok Plastic Rivet

293150230

$1.39

640

Amber, Reflector

520000271

$18.63

650

Torx Screw K50 X 16

250000720

$1.60

660

LH Reflector Support

705011806

$3.94

665

RH Reflector Support

705011814

$3.94

1800

LH Light Cover

705010628

$29.82

1900

RH Headlight Trim

705017566

$29.82

2000

Hyper Silver, LH Door Panel

705014356

$191.76

2010

Door Rear L B-282 | Package XRS

705016022

$136.54

2010

Deep Black, LH Rear Door

705018466

$161.91

2020

Door Support

705011187

$10.55

2025

Hex Screw Washer Head M8 X 20

207582054

$3.00

2026

Flat Washer M8

234081430

$2.00

2030

Flat Washer 8 mm, Nylon

234081100

$1.15

2040

LH Latch

705013095

$53.70

2050

Belt

293850135

$13.45

2051

Pop Rivet 3/16"

293150103

$0.52

2055

Bushing | DS 650 X

293900104

$5.10

2070

LH Latch Cover

705011356

$35.04

2075

Stainless Steel Flat Washer

234062670

$2.00

2080

Panel Nut M6 X 1.0

250100198

$1.99

2085

Torx Screw M6 X 45

250000748

$1.79

2086

Torx Truss Screw M6 X 16

250000721

$1.60

2090

Pop Rivet 3/16"

293150103

$0.52

2095

Torx Truss Screw M6 X 16

250000721

$1.60

2096

Pop Rivet 3/16"

293150103

$0.52

2097

Flat Washer

224061121

$0.51

2100

LH Lower Door Cover

705011358

$52.21

2110

Torx Truss Screw M6 X 50

250000749

$3.01

2115

Torx Screw M6 X 20

250000722

$1.54

2120

Stainless Steel Flat Washer

234062670

$2.00

2130

Hex. Flange Elastic Nut M6

233261466

$1.91

2140

Panel Nut M6 X 1.0

250100198

$1.99

2150

Door Belt

293850129

$14.61

2160

Pop Rivet 3/16"

293150103

$0.52

2300

Silver, RH Door Panel

705012544

$191.76

2310

Hyper Silver, RH Rear Door | Package XRS

705013367

$138.78

2310

Deep Black, RH Rear Door

705018472

$161.91

2320

Door Support

705011187

$10.55

2325

Hex Screw Washer Head M8 X 20

207582054

$3.00

2326

Flat Washer M8

234081430

$2.00

2330

Flat Washer 8 mm, Nylon

234081100

$1.15

2340

RH Latch

705013096

$53.70

2350

Belt

293850135

$13.45

2351

Pop Rivet 3/16"

293150103

$0.52

2355

Bushing | DS 650 X

293900104

$5.10

2370

RH Latch Cover

705013860

$35.79

2375

Stainless Steel Flat Washer

234062670

$2.00

2380

Panel Nut M6 X 1.0

250100198

$1.99

2385

Torx Screw M6 X 45

250000748

$1.79

2386

Torx Truss Screw M6 X 16

250000721

$1.60

2390

Pop Rivet 3/16"

293150103

$0.52

2395

Torx Truss Screw M6 X 16

250000721

$1.60

2396

Pop Rivet 3/16"

293150103

$0.52

2397

Flat Washer

224061121

$0.51

2400

Right Lower Door Cover

705011359

$55.19

2410

Torx Truss Screw M6 X 50

250000749

$3.01

2415

Torx Screw M6 X 20

250000722

$1.54

2420

Stainless Steel Flat Washer

234062670

$2.00

2430

Hex. Flange Elastic Nut M6

233261466

$1.91

2440

Panel Nut M6 X 1.0

250100198

$1.99

2450

Door Belt

293850129

$14.61

2460

Pop Rivet 3/16"

293150103

$0.52

2500

Silver, LH Door Panel

705012466

$191.76

2510

Deep Black, LH Front Door

705018468

$141.01

2510

Hyper Silver, LH Front Door | Hyper Silver Hood

705013358

$136.54

2520

Door Support

705011187

$10.55

2525

Hex Screw Washer Head M8 X 20

207582054

$3.00

2526

Flat Washer M8

234081430

$2.00

2530

Flat Washer 8 mm, Nylon

234081100

$1.15

2540

LH Latch

705013095

$53.70

2550

Belt

293850135

$13.45

2551

Pop Rivet 3/16"

293150103

$0.52

2555

Bushing | DS 650 X

293900104

$5.10

2570

LH Latch Cover

705013535

$35.79

2580

Panel Nut M6 X 1.0

250100198

$1.99

2585

Torx Truss Screw M6 X 16

250000721

$1.60

2586

Stainless Steel Flat Washer

234062670

$2.00

2590

Pop Rivet 3/16"

293150103

$0.52

2610

Panel Nut M6 X 1.0

250100198

$1.99

2620

Torx Screw M6 X 20

250000722

$1.54

2630

Flat Washer

224061121

$0.51

2640

Door Belt

293850129

$14.61

2650

Pop Rivet 3/16"

293150103

$0.52

2700

LH Lower Door Panel

705010732

$52.21

2710

Torx Truss Screw M6 X 50

250000749

$3.01

2720

Stainless Steel Flat Washer

234062670

$2.00

2730

Hex. Flange Elastic Nut M6

233261466

$1.91

2800

Silver, RH Door Panel

705012467

$191.76

2810

Deep Black, RH Front Door

705018470

$141.01

2810

Hyper Silver, RH Front Door | Hyper Silver Hood

705013359

$138.78

2820

Door Support

705011187

$10.55

2825

Hex Screw Washer Head M8 X 20

207582054

$3.00

2826

Flat Washer M8

234081430

$2.00

2830

Flat Washer 8 mm, Nylon

234081100

$1.15

2840

RH Latch

705013096

$53.70

2850

Belt

293850135

$13.45

2851

Pop Rivet 3/16"

293150103

$0.52

2855

Bushing | DS 650 X

293900104

$5.10

2870

RH Latch Cover

705013536

$35.79

2880

Panel Nut M6 X 1.0

250100198

$1.99

2885

Torx Truss Screw M6 X 16

250000721

$1.60

2886

Stainless Steel Flat Washer

234062670

$2.00

2890

Pop Rivet 3/16"

293150103

$0.52

2910

Panel Nut M6 X 1.0

250100198

$1.99

2920

Torx Screw M6 X 20

250000722

$1.54

2930

Flat Washer

224061121

$0.51

2940

Door Belt

293850129

$14.61

2950

Pop Rivet 3/16"

293150103

$0.52

3000

RH Lower Door Panel

705010733

$55.19

3010

Torx Truss Screw M6 X 50

250000749

$3.01

3020

Stainless Steel Flat Washer

234062670

$2.00

3030

Hex. Flange Elastic Nut M6

233261466

$1.91

3400

Black, LH Front Lateral Panel Kit

715006594

$108.93

3410

Torx Screw M6 X 20

250000722

$1.54

3411

Torx Screw M6 X 20

250000712

$2.00

3412

Torx Truss Screw M6 X 25

250000807

$2.00

3415

Hex. Flange Elastic Nut M6

233261494

$1.45

3430

Panel Nut M6 X 1.0

250100198

$1.99

3440

Torx Truss M6 X 50

250000868

$2.00

3500

RH Front Lateral Panel Kit

715004074

$94.00

3510

Torx Screw M6 X 20

250000722

$1.54

3511

Torx Screw M6 X 20

250000712

$2.00

3515

Hex. Flange Elastic Nut M6

233261494

$1.45

3530

Panel Nut M6 X 1.0

250100198

$1.99

3540

Torx Truss M6 X 50

250000868

$2.00

3550

Hex. Flange Elastic Nut M6

233261494

$1.45

3560

Grommet

517303756

$3.61

3600

Lateral Cover

705017564

$39.52

3900

LH Rear Fender Deflector

705009511

$46.99

4000

RH Rear Fender Deflector

705017543

$49.97

4010

Torx Screw M6 X 20

250000722

$1.54

4015

Stainless Steel Flat Washer

234062670

$2.00

4020

Hex. Elastic Flange Nut M6

233161464

$0.96

4030

Torx Truss Screw M6 X 25

250000807

$2.00

4040

Panel Nut M6 X 1.0

250100198

$1.99

4050

Torx Screw K50 X 16

250000720

$1.60

4100

LH Central Lateral Panel

705009513

$60.42

4200

Deep Black, RH Central Body Panel

705017555

$66.39

4210

Torx Screw M6 X 20

250000722

$1.54

4220

Panel Nut M6 X 1.0

250100198

$1.99

4230

Insert

705016606

$2.06

4250

LH Rear Central Lateral Panel

705015741

$65.64

4260

RH Rear Central Lateral Panel

705015742

$65.64

4270

Pop Rivet 3/16”

293150108

$1.19

4280

Insert

705016606

$2.06

4290

Torx Screw M6 X 20

250000722

$1.54

4300

LH Rear Lateral Panel

705010676

$104.45

4400

Deep Black, RH Rear Lateral Panel

705010677

$104.45

4410

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

4420

Panel Nut M6 X 1.0

250100198

$1.99

4440

Support Plate

705003841

$0.91

4500

Fender Rear L B-282

705014344

$368.63

4600

Fender Rear R B-282 Painted

705014350

$368.63

4610

Torx Screw M6 X 20

250000722

$1.54

4620

Insert

705016606

$2.06

4630

Panel Nut M6 X 1.0

250100198

$1.99

4640

Stainless Steel Flat Washer

234062670

$2.00

4650

Support Plate

705003841

$0.91

4660

Torx Screw K50 X 16

250000720

$1.60

4700

LH Rear Lateral Cover

705010686

$32.81

4800

RH Rear Lateral Cover

705010687

$32.81

4810

Torx Screw K50 X 16

250000720

$1.60

4900

LH Central Cage Trim

705011579

$32.06

4900

LH Central Cage Trim

705015489

$32.06

4900

LH Central Cage Trim

705014860

$32.06

4950

RH Central Cage Trim

705011580

$32.06

4950

RH Central Cage Trim

705015490

$32.06

4950

RH Central Cage Trim

705014862

$32.06

4960

Torx Screw M6 X 20

250000722

$1.54

5000

LH Rear Cage Trim

705010335

$32.06

5100

RH Rear Cage Trim

705010336

$32.06

5110

Torx Screw M6 X 20

250000722

$1.54

5120

Panel Nut M6 X 1.0

250100198

$1.99

5130

Clip

293650268

$0.66

5200

Silver, LH Central Door Trim

705012601

$268.63

5210

Torx Screw M6 X 20

250000722

$1.54

5220

Insert

705016606

$2.06

5230

Pop Rivet 3/16"

293150103

$0.52

5300

Silver RH Central Door Trim

705012602

$268.63

5310

Torx Screw M6 X 20

250000722

$1.54

5320

Insert

705016606

$2.06

5330

Pop Rivet 3/16"

293150103

$0.52

5610

Hex. Flange Screw M8 X 130

230683034

$7.06

5620

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.21

5620a

Hex. Elastic Nut M8 Brass

232581200

$1.48

5630

Torx Truss M6 X 50

250000868

$2.00

5640

Stainless Steel Flat Washer

234062670

$2.00

5650

Hex. Flange Elastic Nut M6

233261494

$1.45

5660

Hex. Flange Screw M8 X 70

207687044

$7.01

5670

Hex. Flange Nut M8

233081416

$1.87
