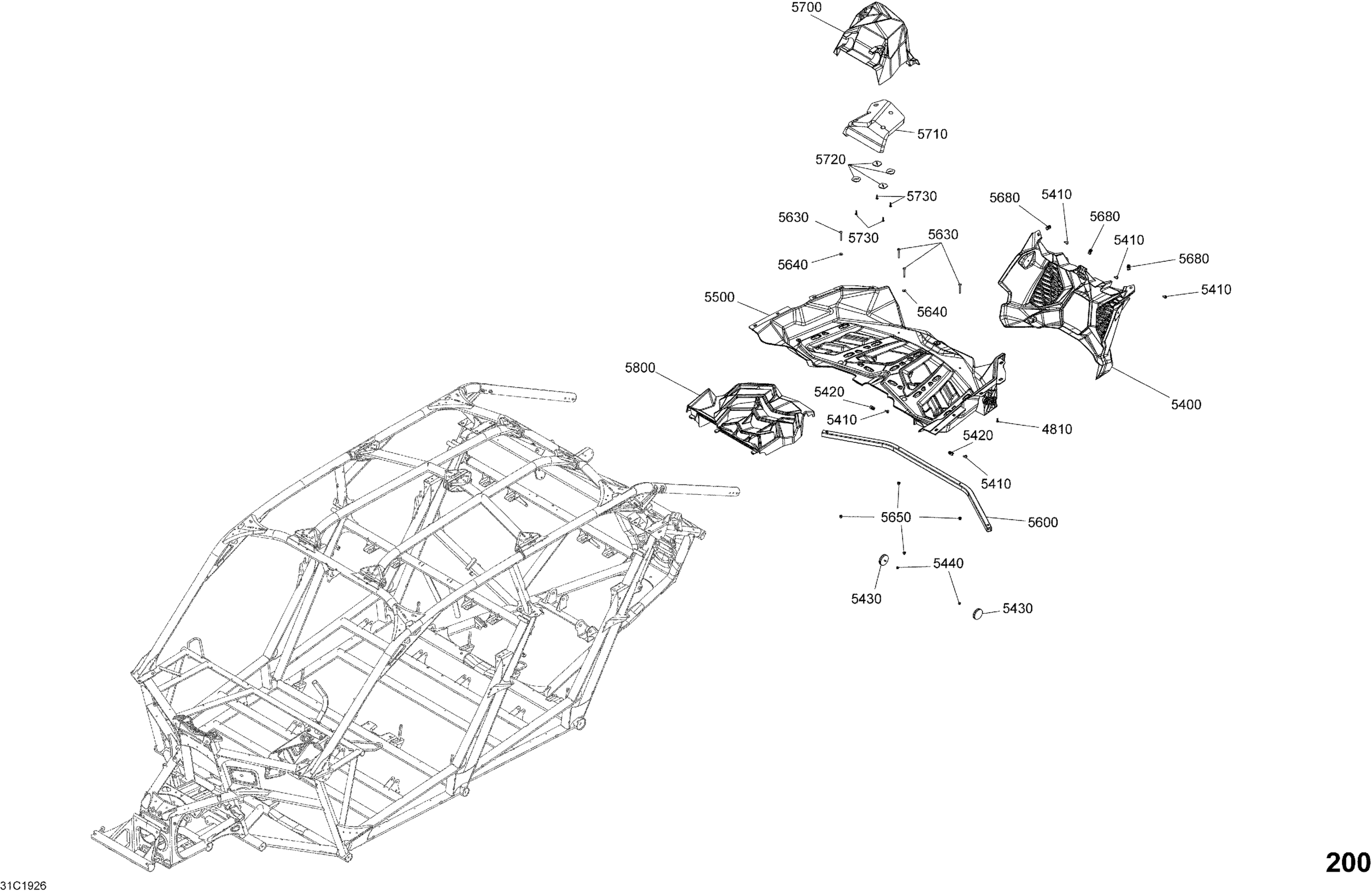

Can-Am Maverick MAX Turbo - 2019 Body - Rear Section - Except Sunburst Yellow Diagram

Description

Price

4810

Torx Screw K50 X 16

250000720

$1.60

5400

Rear Fairing

705017558

$187.28

5410

Torx Screw M6 X 20

250000722

$1.54

5420

Panel Nut M6 X 1.0

250100198

$1.99

5430

Red Reflector

705011221

$11.96

5440

Elastic Flange Nut M5

233251494

$2.00

5500

Luggage Rack Kit

715006592

$413.40

5600

Luggage rack Tube

705012589

$30.57

5630

Torx Truss M6 X 50

250000868

$2.00

5640

Stainless Steel Flat Washer

234062670

$2.00

5650

Hex. Flange Elastic Nut M6

233261494

$1.45

5680

Panel Nut M6 X 1.0

250100198

$1.99

5700

Air Inlet Cover

705012700

$43.25

5710

Foam Air Intake Cover

705011293

$10.82

5720

Support Plate

705003841

$0.91

5730

Torx Screw Truss Head K50X20 T20

250000760

$2.00

5800

Rear Cover

705013757

$202.21
