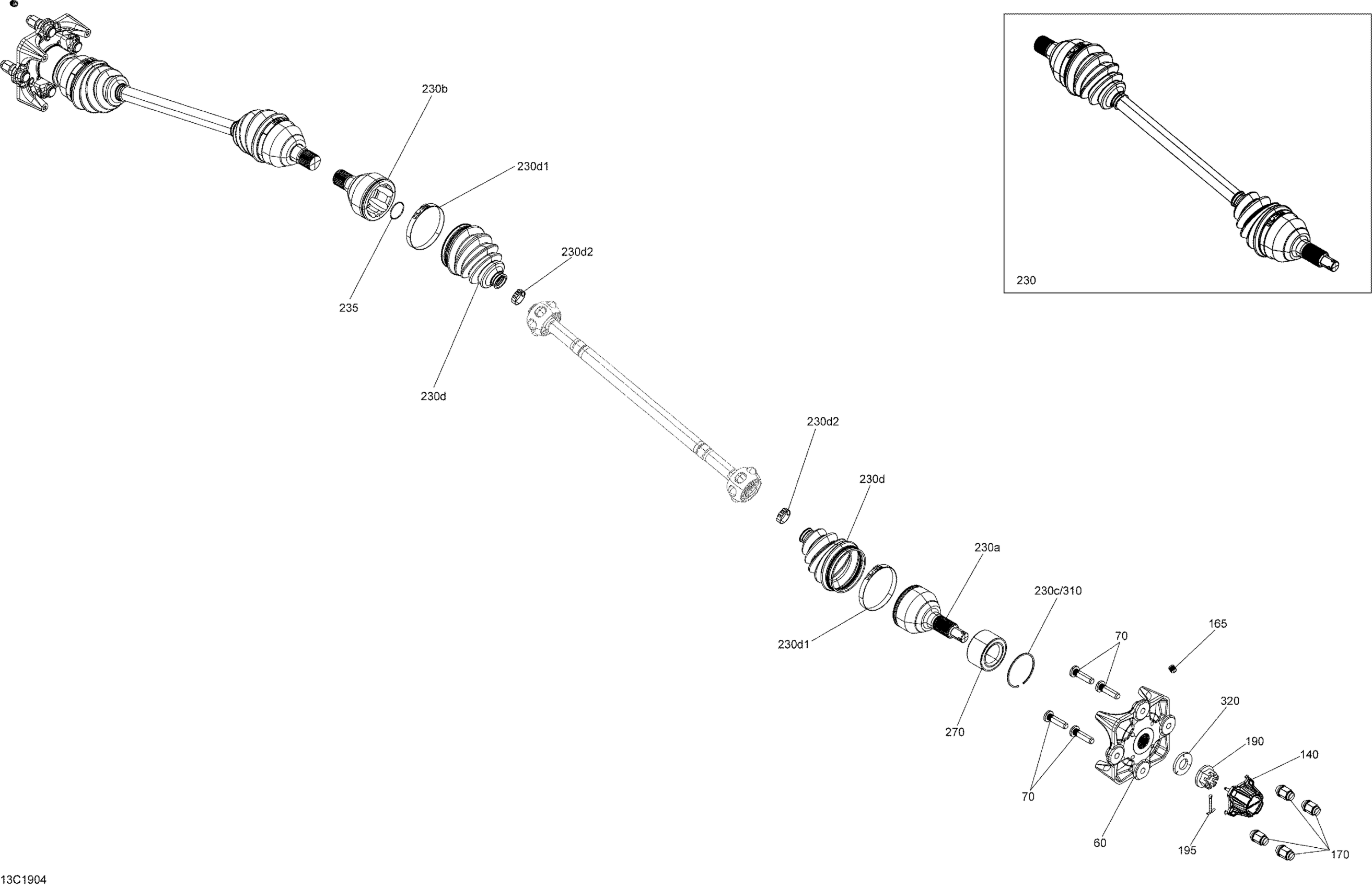

Can-Am Maverick Turbo R - 2019 Rear Drive - Turbo R Diagram

Description

Price

Wheel Hub

705502122

$108.18

Wheel Stud M12X1.5

250300625

$3.73

140

Wheel Cap

705401841

$5.40

170

Black, Wheel Nut M12 X 1.50

250100196

$2.68

190

Castle Nut M20

250100193

$7.64

195

Cotter Pin

250400084

$2.06

230

Performance CV Axle - Rear | Includes 230 to 230d2

705502154

$255.94

230

Performance CV Axle - Rear | Includes 230 to 230d2

705502362

$255.94

230a

CV Joint

715900447

$241.01

230b

Plunging Joint

715900448

Unavailable

230c

Circlip Joint

715900449

$5.10

230d

Boot Kit, Wheel Side | Includes 230d to 230d2

715900450

$39.52

230d1

Oetiker Clamp, Large

715900455

$9.90

230d2

Oetiker Clamp, Small

715900456

$5.54

235

O-Ring

293300196

$1.97

270

Bearing_Ball

293350141

$69.34

310

Circlip

293370102

$3.82

320

Conical Spring Washer M20

250200170

$12.63
