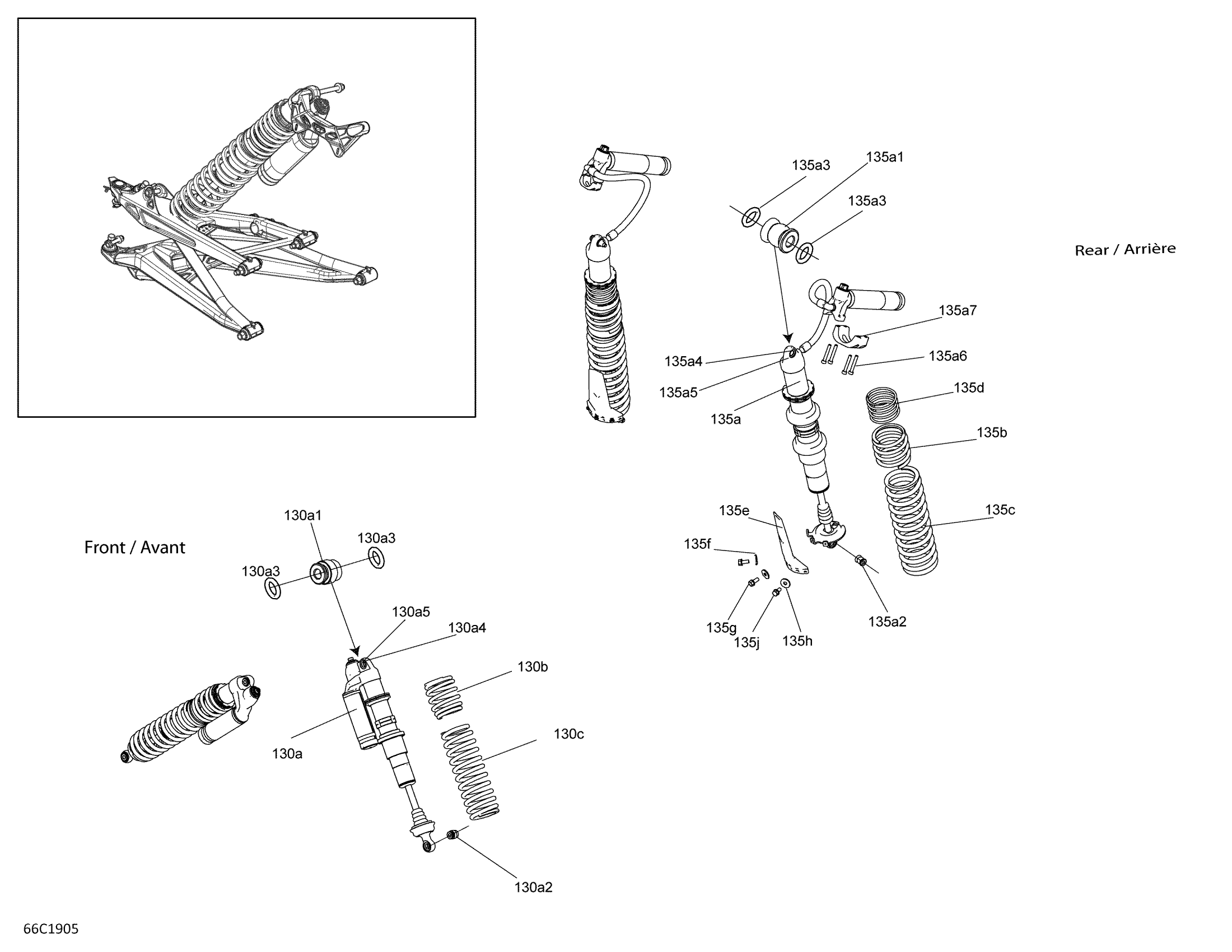

Can-Am Maverick MAX Turbo R - 2019 Shocks - XDS Diagram

Description

Price

130a

LH Front Shock | Includes 130a to 130a5

706202788

$1,099.99

130a

RH Front Shock | Includes 135a to 135a5

706202789

$1,109.99

130a1

Spherical Bearing

715900337

$79.07

130a2

O-Ring Bushing

715900338

$10.55

130a3

Circlip

715900480

$10.24

130a4

Reducer

715900481

$24.60

130a5

Ball Joint

706004078

$44.00

130b

Deep Black, Compression Spring

706205333

$115.64

130c

Black Front Spring | XRSDPS Package, Timeless Black Metallic

706202790

$139.52

135a

LH Rear Shock | Includes 130a to 130a5

706002660

$1,179.99

135a

RH Rear Shock | Includes 135a to 135a5

706002663

$1,159.99

135a1

Spherical Bearing

715900337

$79.07

135a2

O-Ring Bushing

715900338

$10.55

135a3

Circlip

715900480

$10.24

135a4

Reducer

715900481

$24.60

135a5

Ball Joint

706004078

$44.00

135b

Deep Black, Compression Spring

706005126

$93.25

135c

Black Rear Spring | Except XRSDPS Package

706002661

$139.52

135e

Protector

706202215

$8.66

135f

Washer M5

250200025

$0.70

135g

Hex Flange Screw M5 X 11

210251150

$2.00
