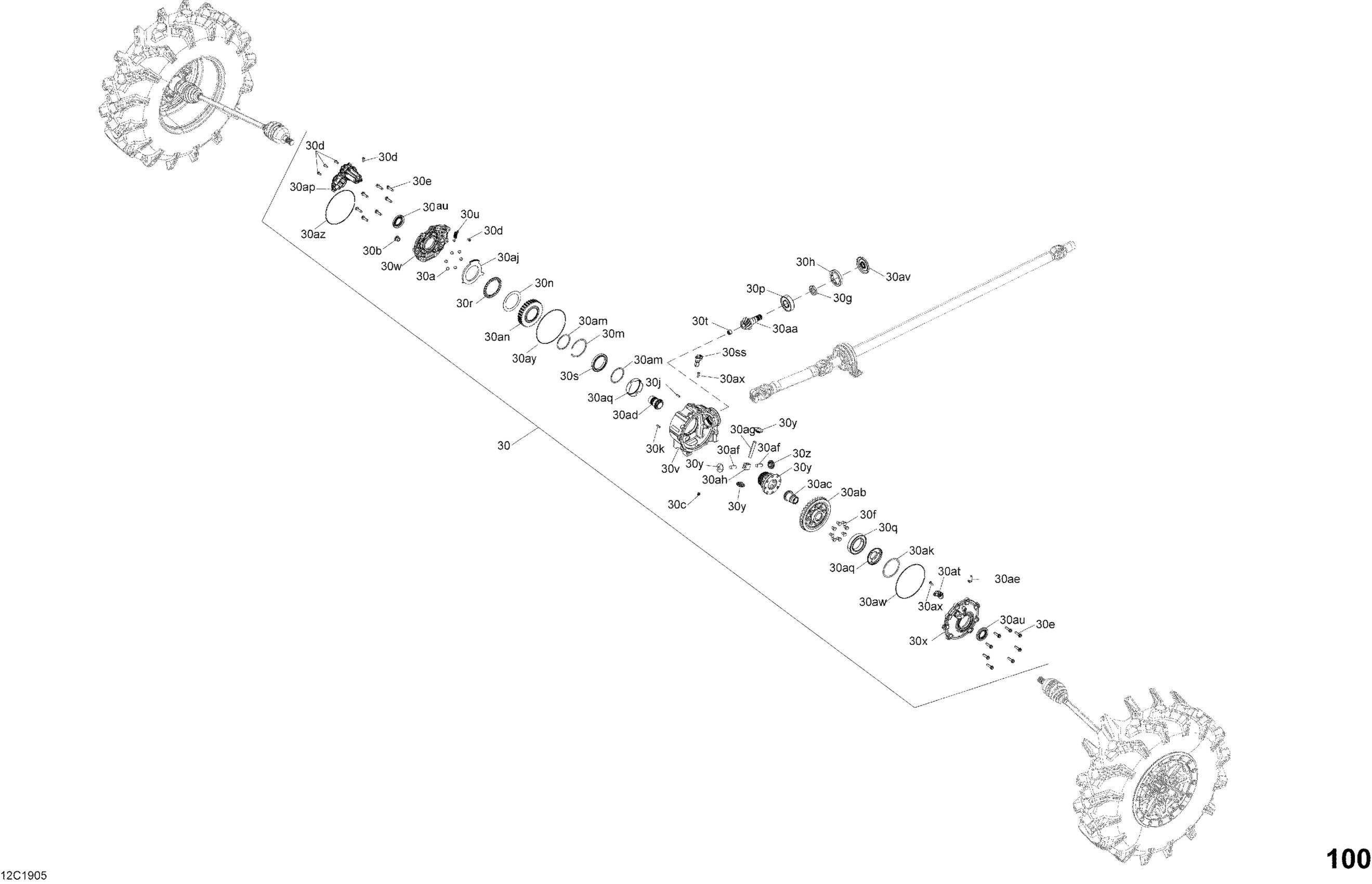

Can-Am Maverick Turbo - 2019 Front Drive - Differential Parts - Except Package STD Diagram

Description

Price

Front Differential Ass'y | Includes 30 to 30vv

705402767

Unavailable

30a

Ball

715900564

$6.50

30b

Fill Level Plug

705501889

$20.49

30c

Fill Level Plug M10

715900563

$27.49

30d

Torx Screw M6 X 16

705402845

$11.05

30e

Bolt

705501886

$7.69

30f

Hex Screw 3/8 X 0.500

715900561

$13.76

30g

Nut M75 X 1.5

705401819

$23.99

30h

Nut M27 X 1.5

705401820

$20.99

30j

Dowel Pin

715900559

$6.67

30k

Dowell Pin

715900618

$21.99

30m

Retainin Ring

715900558

$26.99

30n

Thrust Washer

715900557

$29.49

30p

Ball Bearing

705401821

$31.99

30q

Ball Bearing 60 X 95 X 18

715900556

$43.49

30r

Needle Bearing

715900555

$19.99

30s

Ball Bearing 65 X 85 X 10

715900554

$94.49

30t

Ball Bearing | After May 30, 2014

705402848

$49.99

30u

Spring

715900553

$29.99

30v

Housing

715900674

$144.99

30w

RH Cover

715900632

$142.99

30x

LH Cover

715900631

$134.99

30y

Housing

715900617

$121.99

30z

Pinion 10T

715900548

$88.99

30aa

Pinion 10 th.

705401933

$194.99

30ab

Gear 36T

715900676

$409.99

30ac

Gear 14T

715900546

$88.99

30ad

Gear 14T

715900545

$88.99

30ae

Vent Valve

705401935

$16.49

30af

Pinion Pin 0.5 X 1.250

715900543

$21.99

30ag

Pinion Pin 0.5 X 3.000

715900542

$21.99

30ah

Coupler, Pin

715900541

$65.49

30aj

Ramp Ball

715900540

$77.49

30ak

Shim 74.50 X 66.00

715900539

$179.99

30am

Shim 3.735 X 3.300

715900538

$274.99

30an

Clutch Pack

715900537

$239.99

30ap

Actuator Ass'y

715900640

$509.99

30aq

Cross Pin Retainer

715900535

$28.99

30ar

Tone Ring 30T

715900534

$35.99

30as

Vent Cap 5/16

715900533

$7.69

30at

Speed Sensor

715900532

$104.99

30au

Oil Seal

715900531

$26.49

30av

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$19.99

30aw

O-Ring

715900530

$13.16

30ax

Torx Screw M6 X 16

705402845

$11.05

30ay

O-Ring

715900601

$12.49

30az

O-Ring

715900600

$13.16
